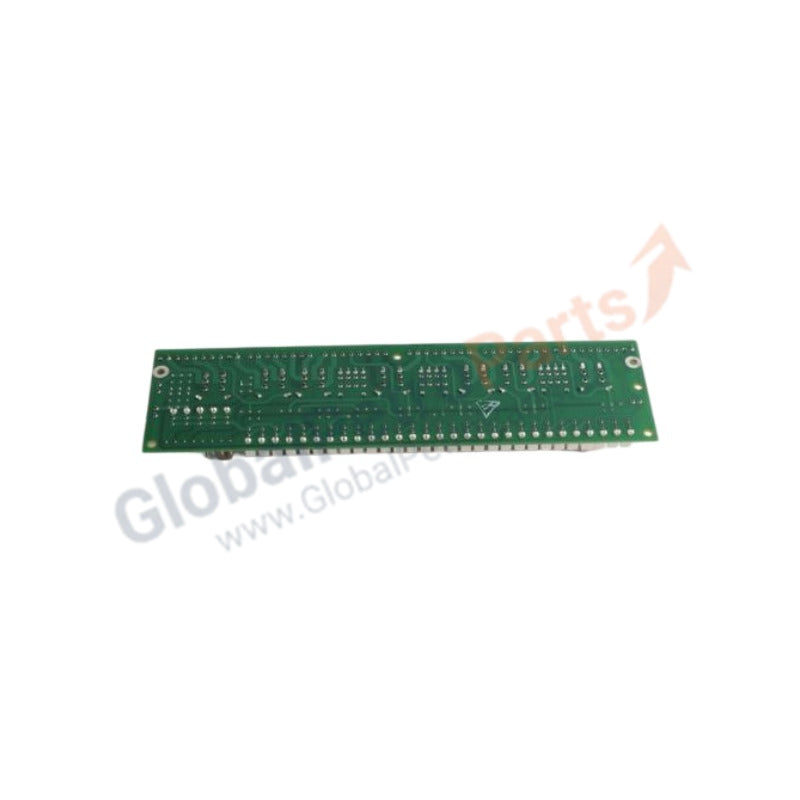

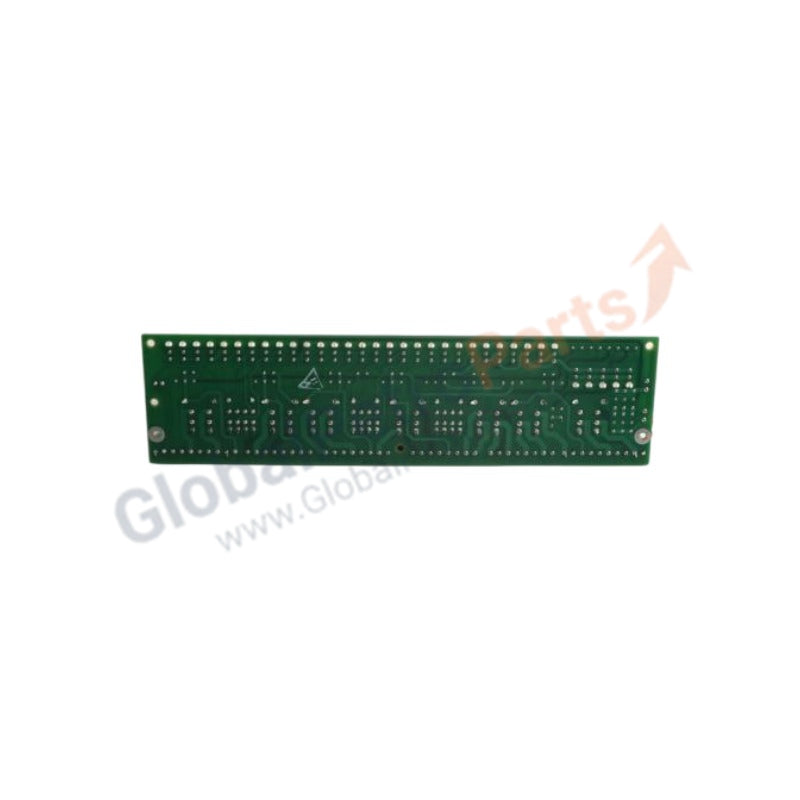

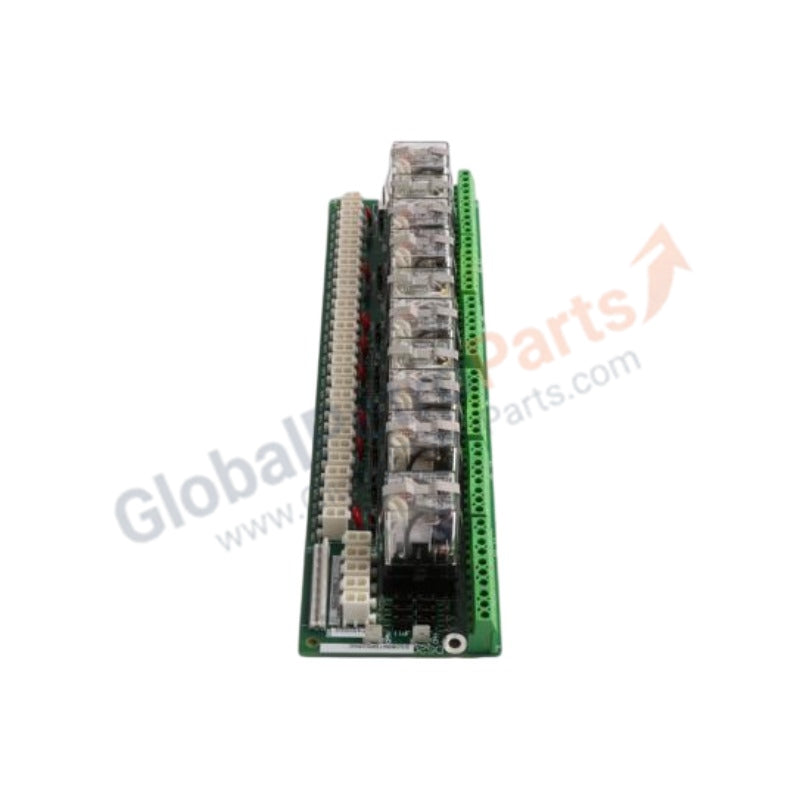

GE Mark V Relay Terminal Board DS200RTBAG2AHC

Product Overview

The GE DS200RTBAG2AHC (DS200RTBAG2A) functions as a critical remote relay terminal interface for the GE Mark V Speedtronic turbine control system. This board facilitates the high-density connection of discrete signals and provides the physical relay switching necessary for solenoid control, motor starters, and auxiliary turbine hardware. We supply this component as 100% Brand New and Original, ensuring your control system utilizes factory-spec contact ratings and insulation integrity. By isolating sensitive control logic from field-level electrical loads, the DS200RTBAG2AHC prevents transient noise and voltage spikes from compromising the core Speedtronic processor rack.

Technical Specifications

Engineering Advantages

The DS200RTBAG2AHC solves high-density I/O management challenges in heavy-duty turbine environments:

• Robust Load Isolation: Each relay on the RTBA board acts as a physical barrier between the field devices and the control system. This hardware separation protects the Main Control Processor (IMCP) from back-EMF and inductive kicks generated by collapsing solenoid fields.

• High-Integrity Terminal Blocks: The board features heavy-duty, industrial-grade screw terminals. These connectors withstand the vibration and mechanical stress typical of turbine enclosures, ensuring low-resistance connections for critical safety and status signals.

• Revision "G2AHC" Enhancements: This specific revision incorporates improved relay contact materials and reinforced PCB trace paths. These upgrades offer superior resistance to contact pitting and oxidation, even when operating in humid or high-temperature power plant environments.

• Simplified Maintenance Layout: GE engineers organized the board with clearly labeled test points and status indicators. This layout allows field engineers to verify relay actuation and trace signals quickly during a forced outage, drastically reducing diagnostic time.

Installation & Wiring Protocols

To maintain the 100% Brand New warranty and ensure fail-safe operation, adhere to these engineering standards:

1. Torque Specifications: Tighten all field wiring to the manufacturer-specified torque ratings. Loose terminal connections cause localized heating and intermittent signal "chatter," which can lead to nuisance turbine trips.

2. Ribbon Cable Routing: Carefully route the 50-pin ribbon cables away from high-voltage AC lines. Induced noise on the command bus can cause unintentional relay actuation.

3. Jumper Verification: Review the hardware jumper settings (e.g., Berg jumpers) to ensure the board correctly identifies its position in the I/O rack. Improper jumper configuration prevents the Speedtronic system from recognizing the board's I/O map.

FAQs

• Can the DS200RTBAG2AHC replace an older DS200RTBAG1A?

  Yes. The "G2" series serves as the functional and mechanical successor to the "G1" boards. It utilizes the same mounting footprint while providing upgraded relay durability and better noise suppression.

• Does this board require firmware or software setup?

  No. The RTBA is a passive relay interface board. It does not contain microprocessors or software; however, you must ensure your I/O configuration in the Mark V control software (Core or  cores) matches the physical terminal wiring.

• What are the primary indicators of a relay failure on this board?

  Typical signs include failure of a field device to actuate despite a command signal, visible carbon buildup on the relay housing, or high-resistance readings across the terminal contacts when the relay is energized.
