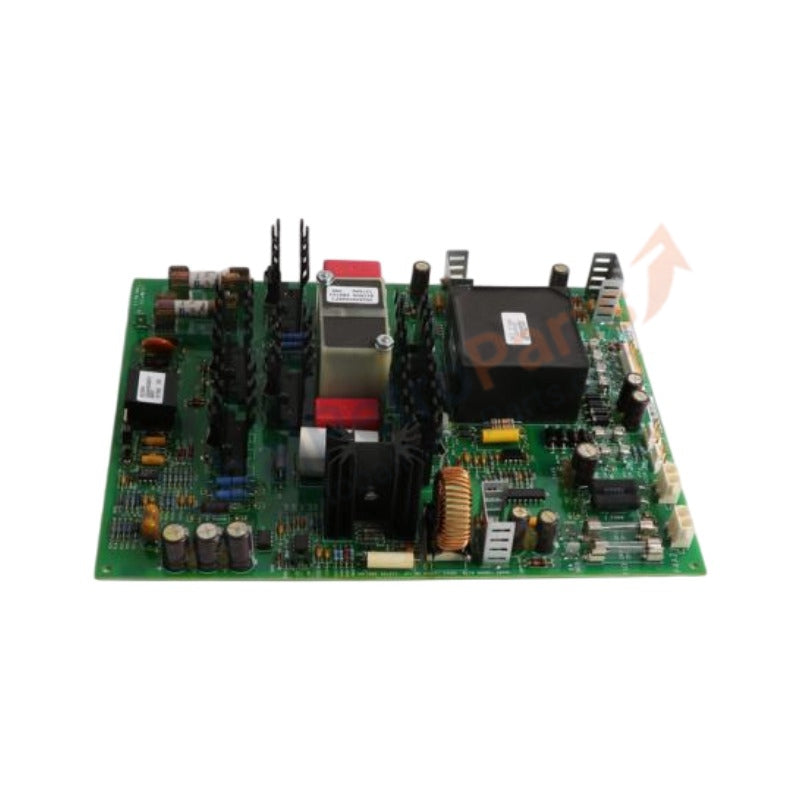

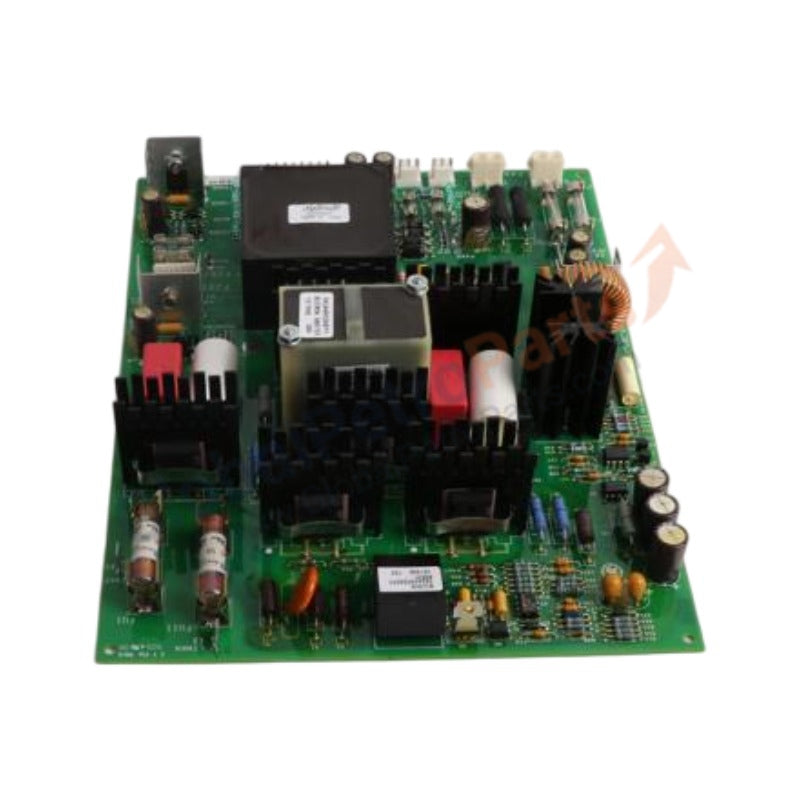

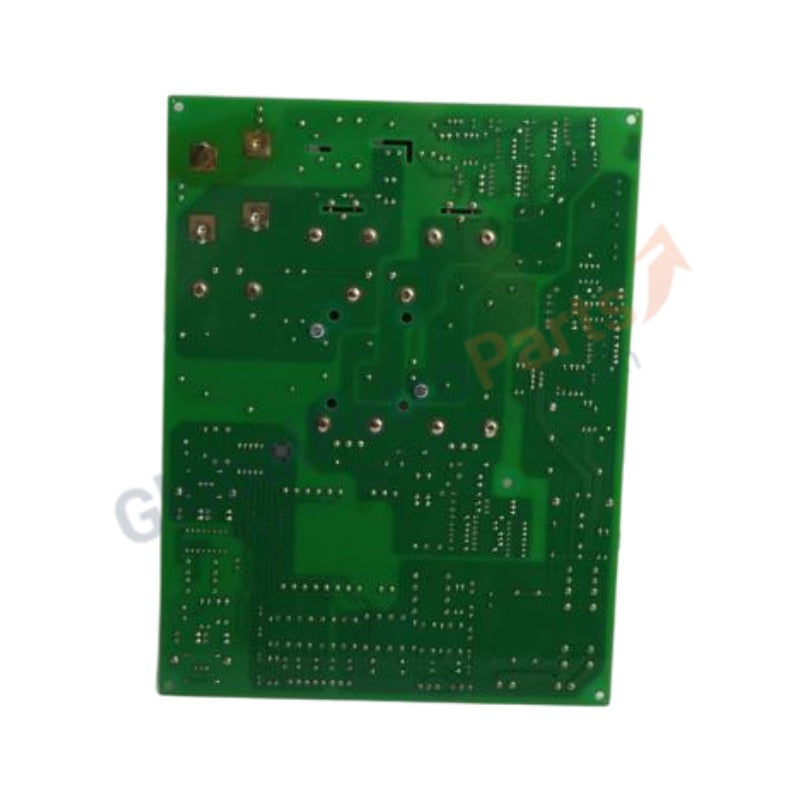

GE Mark VI Excitation Power Supply Board IS210AEPSG1

Product Overview

The 100% Brand New GE IS210AEPSG1 (IS210AEPSG1) functions as a high-density excitation power supply board within the General Electric Mark VI Speedtronic turbine control suite. This original factory component converts raw input voltages into regulated, clean DC power buses to drive digital control electronics, gate pulse amplifiers, and peripheral relay arrays. By delivering ultra-stable power rails directly to the processor backplane, it insulates sensitive logic circuits from line-side transients and voltage sags, preventing unexpected processor resets and reducing sudden generator trips. Heavy industries—including utility-scale power generation, petrochemical refining, and industrial gas turbine plants—rely on this module to preserve continuous uptime in demanding continuous-run architectures.

Part Number Breakdown

The alpha-numeric manufacturing string determines the specific hardware revision, functional form factor, and protective coating options for the IS210 platform:

• IS210: Specifies the base product family within the internal GE component manufacturing catalog.
• AEPS: Identifies the specific functional application as an Excitation Power Supply board assembly.
• G1: Indicates the physical build group one, defining the initial electronic component layout and primary terminal configurations.
• A / B: Denotes the mechanical revision layer tracking hardware updates from the engineering department.
• FC / CB: Indicates the precise functional firmware alignment, conformal coating level, and factory test certification profile.

Technical Specifications

• Model: IS210AEPSG1 (Functional equivalents include IS210AEPSG1AFC / IS210AEPSG1BCB)
• Brand: General Electric (GE)
• Series: Mark VI Speedtronic
• Product Condition: 100% Brand New Original
• Product Type: Excitation Power Supply Board
• Country of Origin: United States
• Net Weight: 0.82 kg
• Dimensions: 234 mm H x 112 mm W x 45 mm D
• Input Voltage Range: 24 VDC to 125 VDC nominal operating limits
• Output Voltage Buses: Multiple stabilized DC voltage rails (+5 VDC, +15 VDC, -15 VDC, +24 VDC)
• Maximum Output Current: 10 A aggregate current capacity across all lines
• Dielectric Isolation Rating: 1500 VAC continuous from input terminals to control backplane
• Cooling Requirement: Natural convection flow inside an approved industrial enclosure
• Diagnostic Indicators: Front-facing LED array tracking status of each individual output rail
• Operating Ambient Temperature: 0 to 60 deg C
• Storage Ambient Temperature: -40 to 85 deg C
• Relative Humidity Matrix: 5 % to 95 % maximum limit, non-condensing atmosphere

Engineering Advantages

The IS210AEPSG1 board incorporates advanced hardware topologies to resolve critical field power distribution vulnerabilities:

• High-Frequency Noise Filtering: Built-in inductor-capacitor (LC) filter networks suppress incoming high-frequency line ripple and electromagnetic interference (EMI), ensuring clean power delivery to sensitive downstream analog-to-digital converters.
• Thermal Management Architecture: The board design positions heavy heat-dissipating power transistors next to optimized multi-layer copper planes, accelerating heat extraction without relying on fragile external cooling fans.
• Autonomous Overvoltage Clamping: Integrated metal-oxide varistors (MOVs) clamp high-energy field surges instantly, safeguarding the main controller backplane from destruction during lightning strikes or grid switching events.
• Conformal Environmental Protection: A factory-applied protective polymer layer shields surface-mount components from humidity, salt fog, and conductive dust settling, preventing parasitic trace leakage.

FAQs

• Does this power board support hot-swapping inside an active Mark VI control rack? No. You must fully de-energize the specific module slot and disconnect the upstream branch circuit breaker before extracting or inserting the power supply board. Handling components while energized can damage the backplane connectors and cause safety hazards.
• How does a field technician identify an internal power supply failure on this module? The board features a dedicated green status LED for each output voltage rail. If any specific DC bus drops below its low-voltage monitoring threshold due to an internal fault or short-circuit, that corresponding LED turns off immediately, signaling a hardware fault to the operator.
• Can this module directly replace older Mark V excitation boards? No. This component utilizes the physical dimensions, pinouts, and voltage communication lines unique to the Mark VI control architecture. It does not fit or function inside older Mark V racks.
