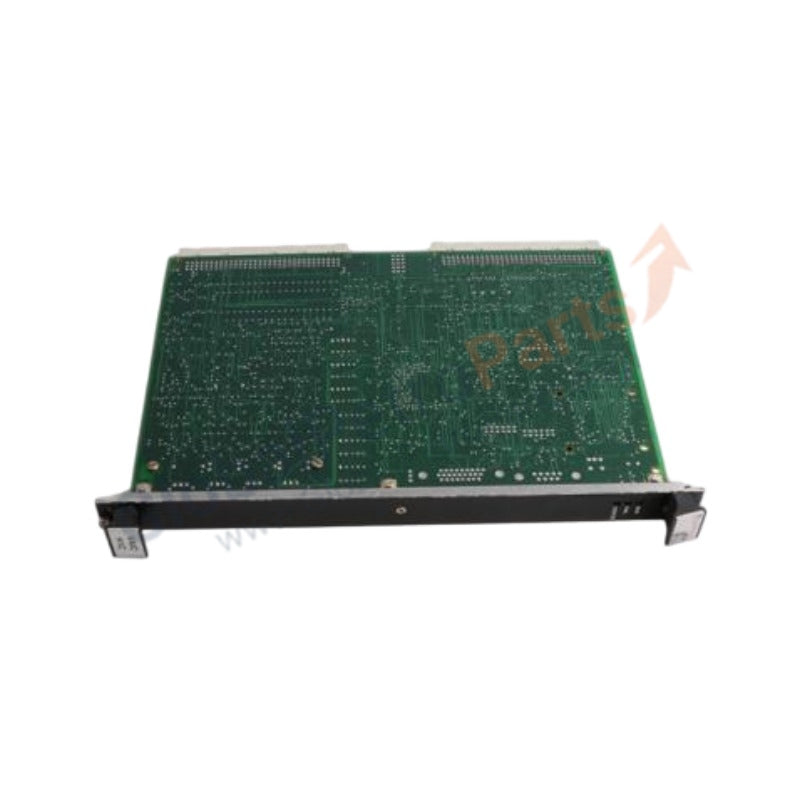

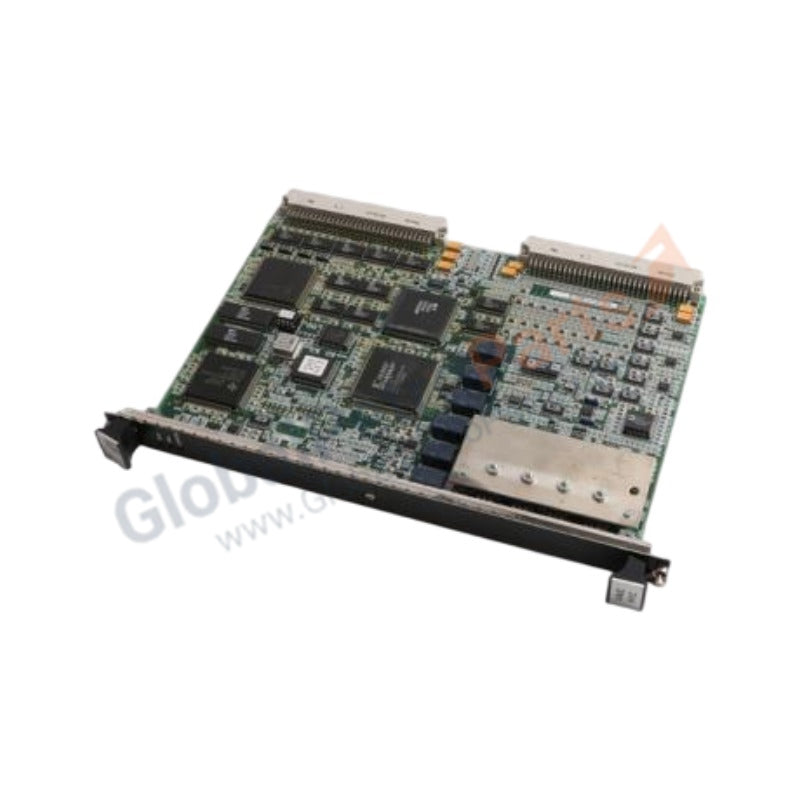

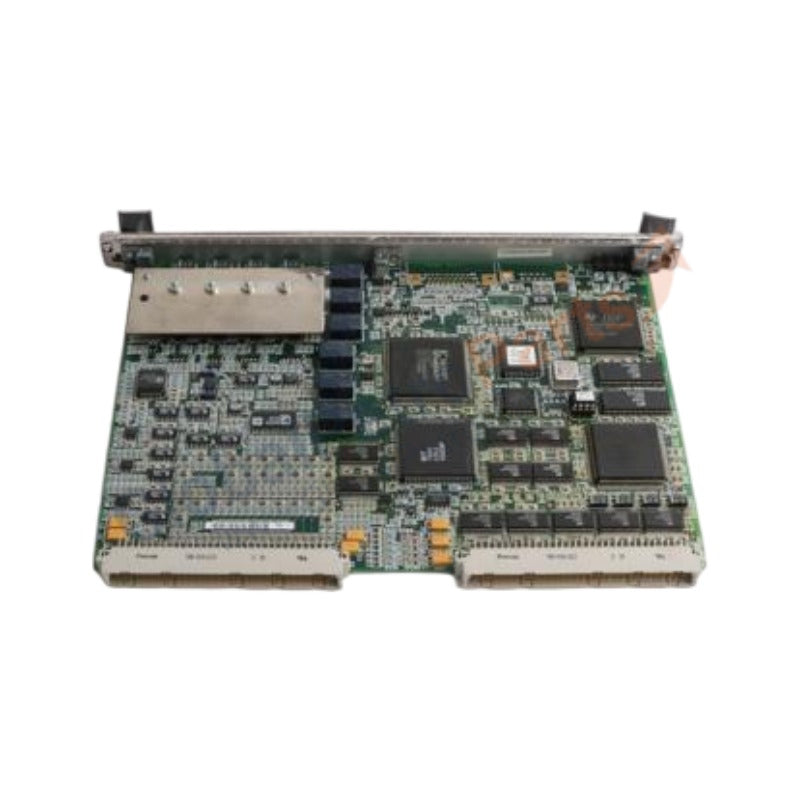

GE | Mark VI Speedtronic Analog Input Output VME Board IS200VAICH1CBA

Product Overview

The GE IS200VAICH1CBA functions as the primary Analog Input/Output (VAIC) VME board within the General Electric Mark VI Speedtronic turbine control rack architecture. This high-density, double-slot hardware assembly processes crucial process feedback variables and drives regulatory field actuators concurrently. It routes up to 20 analog inputs and 4 analog outputs through the VME backplane bus, connecting the turbine control core directly to the physical instrument loop layer. By executing hardware-level calibration, high-speed A/D sampling, and synchronous servo driver routines, this board maintains tight loop control over fuel valves, guide vanes, and steam governors.

We distribute this high-integrity industrial automation board exclusively as 100% brand new, original factory-sealed stock to ensure pristine electronic traces and maximum operational lifecycles within your critical control racks.

Technical Specifications

The IS200VAICH1CBA integrates high-speed digital signal processor arrays, onboard multi-channel A/D and D/A data conversion modules, VMEbus interface logic, and custom hardware filters onto a ruggedized multi-layer circuit board footprint. The table below outlines the definitive technical, operational, and electrical parameters:

Engineering Advantages

• High-Density Single-Slot I/O Consolidation: The board houses 20 independent input channels and 4 drive output channels on a single physical VME module footprint. This ultra-dense component layout collapses multiple discrete hardware loops into a single interface node, saving limited backplane rack slot spaces and simplifying inter-rack signal distribution cabling.

• Onboard Differential Signal Filtering: Hardware-based low-pass RC filters line every individual input circuit track. This local hardware barrier suppresses high-frequency electromagnetic interference (EMI), radio frequency interference (RFI), and inductive noise cross-talk generated by high-voltage generator fields and heavy-duty motor control panels.

• Synchronous D/A Readback Verification: Dedicated diagnostic feedback channels route actual output loop current directly back through secondary internal monitoring converters. The board checks this real-time execution state against the controller instruction matrix continuously, instantly exposing open field actuator coils, severed loop wiring, or output drive transistor failures.

• Ruggedized Injector/Ejector Lock Levers: The front panel assembly incorporates high-tensile structural locking handles. These levers provide mechanical advantage when mating the dense multi-pin backplane arrays into the VME rack, securing the module tightly against severe low-frequency turbomachinery floor vibrations to prevent micro-interruptions on the data lines.

FAQs

• Q1: What specific function updates does the 'H1CBA' version suffix imply for the IS200VAICH1CBA board?

  A1: The "H1CBA" code designates a mature manufacturing configuration block. This revision incorporates optimized solid-state components with lower internal heat generation thresholds, an updated VME bus interface chip set for faster bus access, and a thick, continuous layer of factory conformal coating that blocks air moisture and conductive particles from causing short-circuit tracking arcs.

• Q2: Can I hot-swap the IS200VAICH1CBA module while the turbine control system remains live?

  A2: No. Pulling this VME board breaks active communication lanes along the master processing backplane bus and drops the 4-20 mA drive commands to your fuel control actuators instantly. This interruption causes immediate fuel termination and triggers a turbine emergency trip sequence. Always completely power down the target VME control rack before replacing this component.

• Q3: How do I select between 4-20 mA current loops and ±10 V voltage signals on the input channels?

  A3: The IS200VAICH1CBA board operates in tandem with a passive external analog input terminal board (such as the TBAI card). You manage signal selection by setting mechanical hardware jumpers directly on that external terminal card to engage or disengage the internal 250 Ohm precision current shunts, then matching those definitions inside the ControlST system configuration software.
