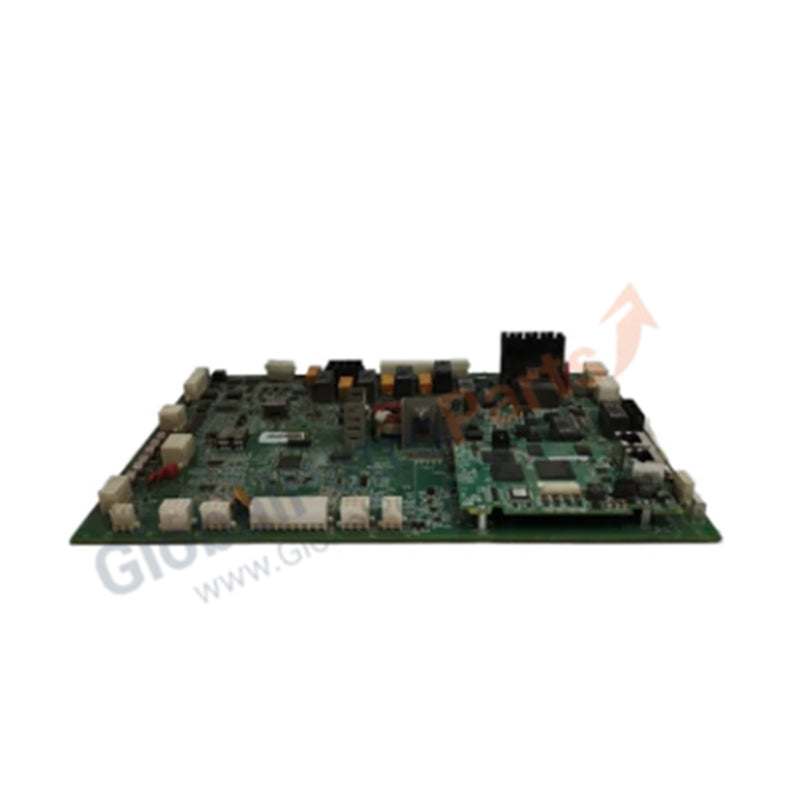

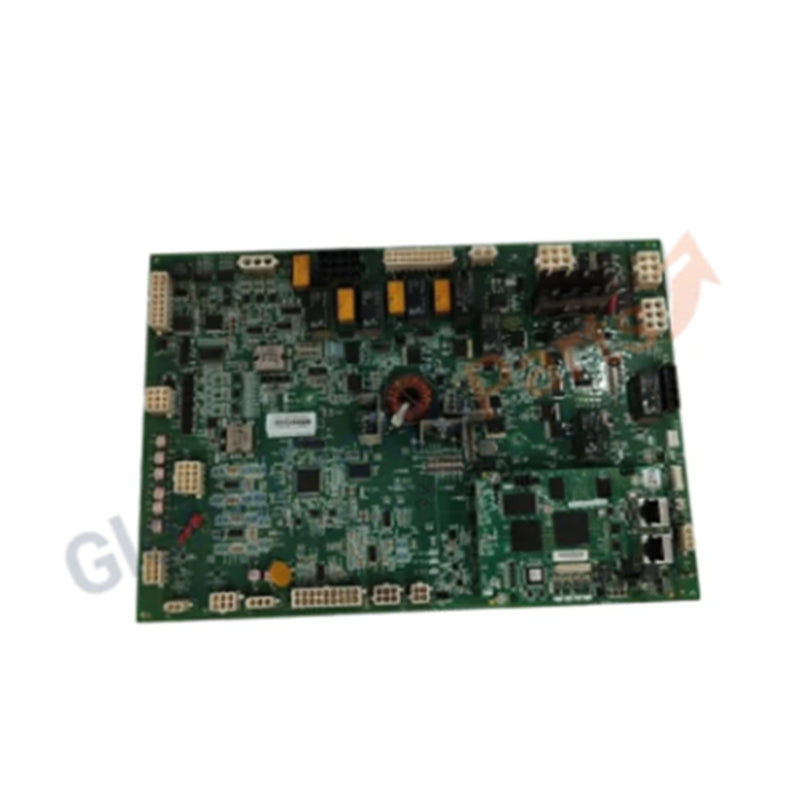

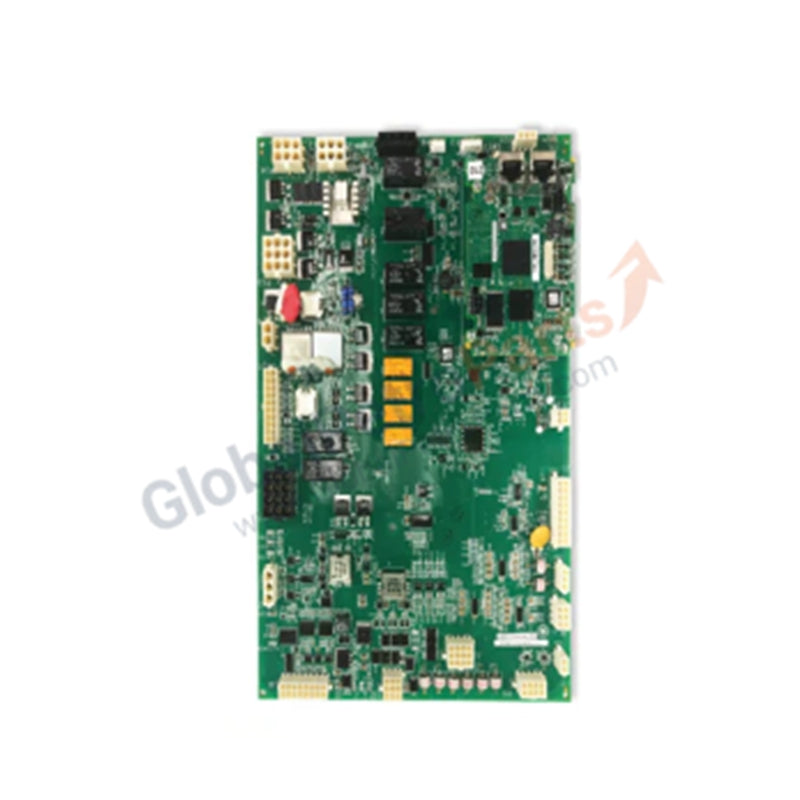

GE Mark VI Speedtronic IS210MACCH2AEF Communication Control Module

Product Description

The IS210MACCH2AEF functions as a high-tier processing and communication node within the GE Mark VI Speedtronic control architecture. Engineered for high-availability power generation environments, this module serves as a primary controller for managing complex data packets across turbine control networks. Unlike standard interface cards, the IS210MACCH2AEF provides the heavy-duty computational overhead required for real-time turbine sequencing and system-wide diagnostics.

This module is designed to bridge the gap between high-level HMI systems and low-level field sensors, ensuring deterministic timing and zero-loss signal integrity. Its architecture is hardened against the electrical noise and thermal fluctuations typical of heavy industrial turbine halls.

Technical Specifications

• Computational Core: Integrated Intel Core i5-4570TE Processor, quad-core architecture clocked at 2.7 GHz for high-speed logic execution.

• System Volatile Memory: 8GB DDR4 RAM providing low-latency data buffering and concurrent task management.

• DC Power Input: Nominal 24V DC (operational range ±10%) with a maximum current draw of 5A.

• Power Consumption: Rated for a continuous thermal load of up to 120W during peak processing cycles.

• Communication Architecture: Multi-port industrial ethernet support with native integration for GE IONet protocols.

• Reliability Features: Onboard hardware watchdog timers and redundant signal pathway logic to prevent system hang-ups in critical loops.

• Form Factor: Specialized Mark VI rack-mount enclosure with integrated heat dissipation fins.

Application & System Use

• Steam and Gas Turbine Control: Primary logic solver for combustion and speed control loops.

• Data Aggregation: Acting as a gateway for turbine health monitoring and predictive maintenance data.

• Network Coordination: Synchronizing multiple Mark VI racks across a distributed control system (DCS).

Technical FAQ

How does the IS210MACCH2AEF manage thermal dissipation in high-load scenarios?The module utilizes a ruggedized chassis that acts as a heat sink, combined with industrial-grade silicon (Intel TE series) optimized for high-temperature stability without active cooling fans in most rack configurations.

Is the DDR4 RAM on the IS210MACCH2AEF user-upgradeable?In standard turbine control configurations, the memory is fixed to ensure timing determinism and system validation; field upgrades are generally not recommended to maintain original equipment certification.
