GE Mark VIe Emergency Turbine Backup Protection Module IS220PPRAH1A

Product Overview

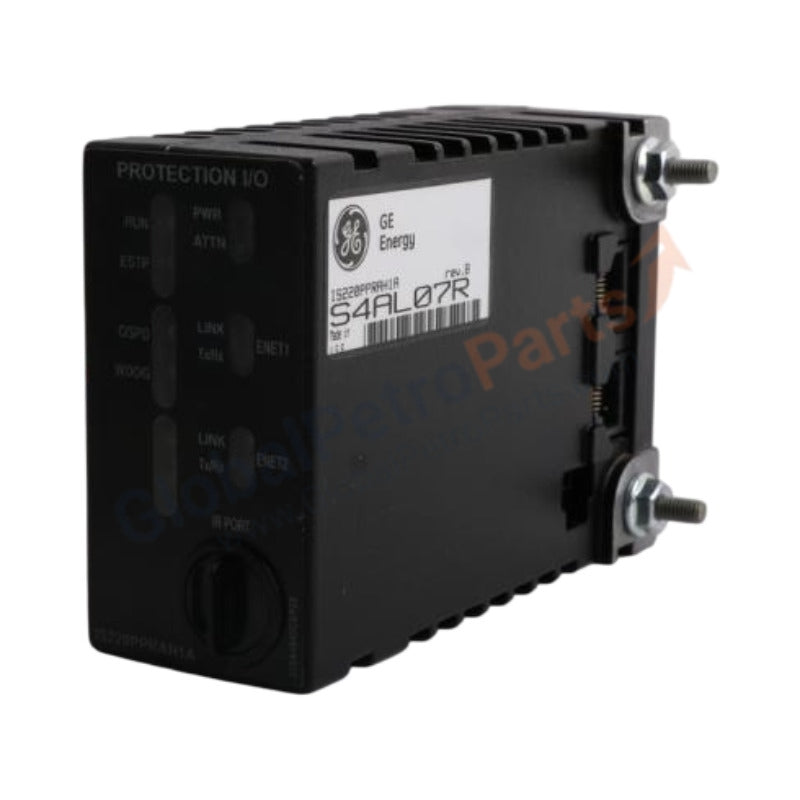

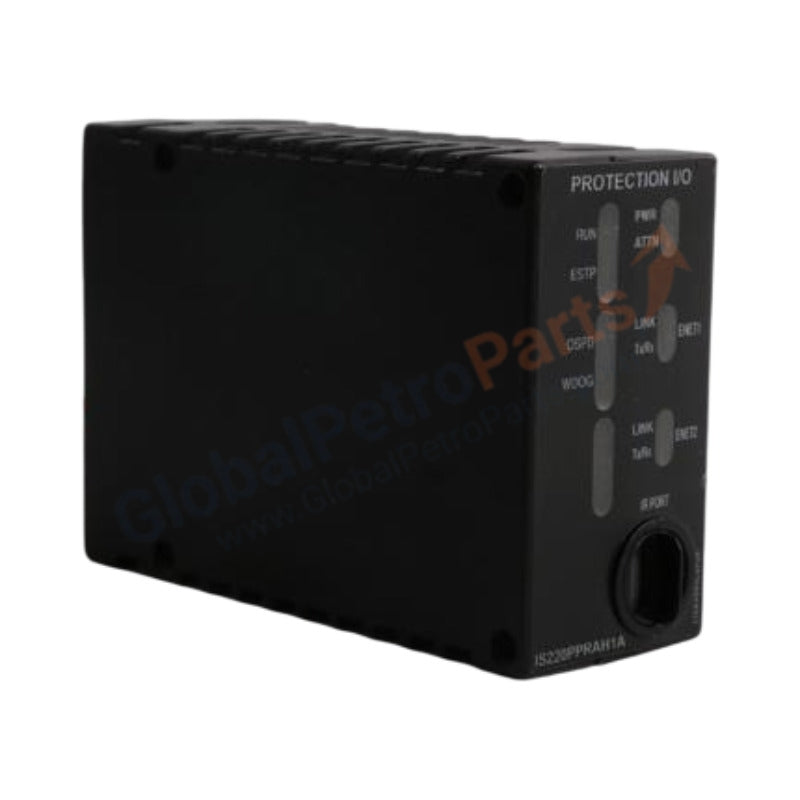

The GE IS220PPRAH1A operates as a dedicated emergency turbine backup protection I/O pack within the General Electric Mark VIe and Mark VIes Speedtronic platform. This specialized hardware module provides independent, autonomous safety intervention to safeguard heavy-duty gas and steam turbines against catastrophic overspeed events. It mounts directly onto a compatible terminal board to capture speed dynamics and flame status independent of the primary control processors. By running localized safety algorithms, the unit triggers emergency trip relays within milliseconds if the main operating infrastructure fails during critical failures.

We supply this safety-critical module exclusively as 100% brand new, original factory-sealed stock to guarantee maximum performance life and absolute compliance with plant protection standards.

Technical Specifications

The IS220PPRAH1A integrates a high-speed internal processor with dual redundant network channels inside a compact, rugged housing. The following table details the core operational, electrical, and environmental parameters:

Engineering Advantages

• True Autonomous Overspeed Intervention: This pack operates completely separate from the primary turbine control loop. It processes sensor signals locally, ensuring immediate mechanical trip execution even during total central processor lockups or network blackouts.

• Seamless TMR Voting Integration: The mechanical form factor permits three identical PPRA modules to interlock on a single terminal block. This arrangement builds a robust Triple Modular Redundant (TMR) architecture that executes two-out-of-three (2oo3) hardware voting logic to prevent nuisance trips while ensuring absolute safety.

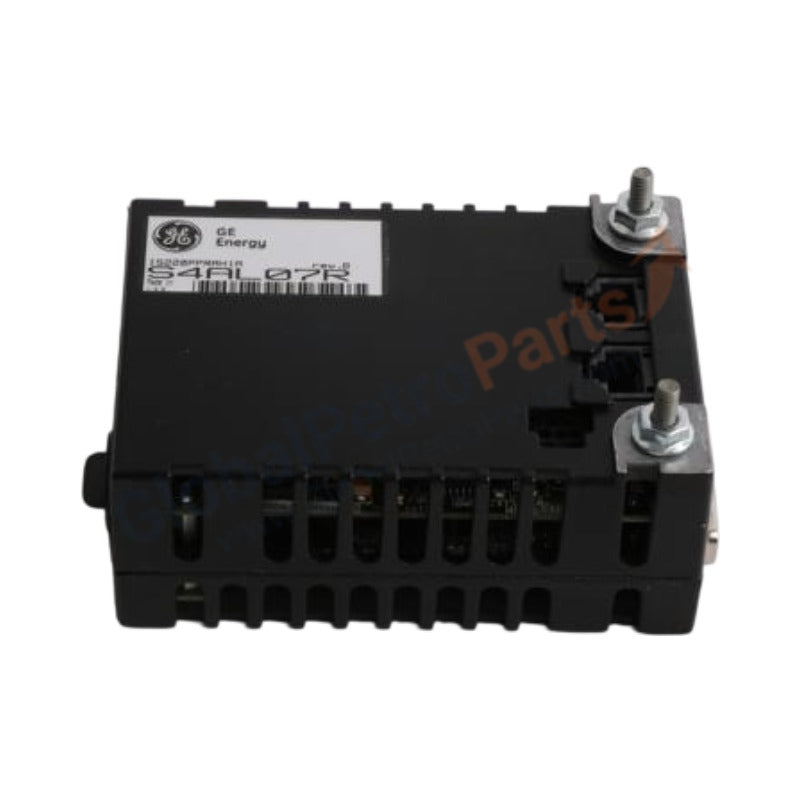

• Elimination of Active Cooling Infrastructure: A custom engineered passive heat-sink design dissipates heat efficiently through structural ventilation slits. By discarding mechanical cooling fans, this module eliminates common dust-accumulation failures and extends operational intervals in high-ambient turbine enclosures.

• Advanced Transient Noise Rejection: Shielded internal circuitry blocks high-frequency electromagnetic interference (EMI) originating from surrounding generators and high-voltage switchgear, eliminating false sensor readings and accidental unit trips.

FAQs

• Can I mix the IS220PPRAH1A with different revision codes on the same TMR terminal board? No. To maintain precise synchronicity and correct two-out-of-three voting times across the safety loop, you must install matching revision layers (such as three H1A packs) across the specific terminal assembly.

• Which terminal blocks accommodate this backup protection pack? The IS220PPRAH1A connects directly with the TPPRAH1A and TPPRAH2A emergency protection terminal boards via its high-density d-sub connection ports.

• Does the module require field calibration for different gear tooth counts? The internal processor handles high-frequency pulse ranges automatically, but you must define the specific gear tooth parameters and overspeed trip thresholds inside the GE ControlST software tool during initial loop commissioning.
