GE | Speedtronic Mark VI Analog Output Terminal Board IS200STAOH2AAA

Product Overview

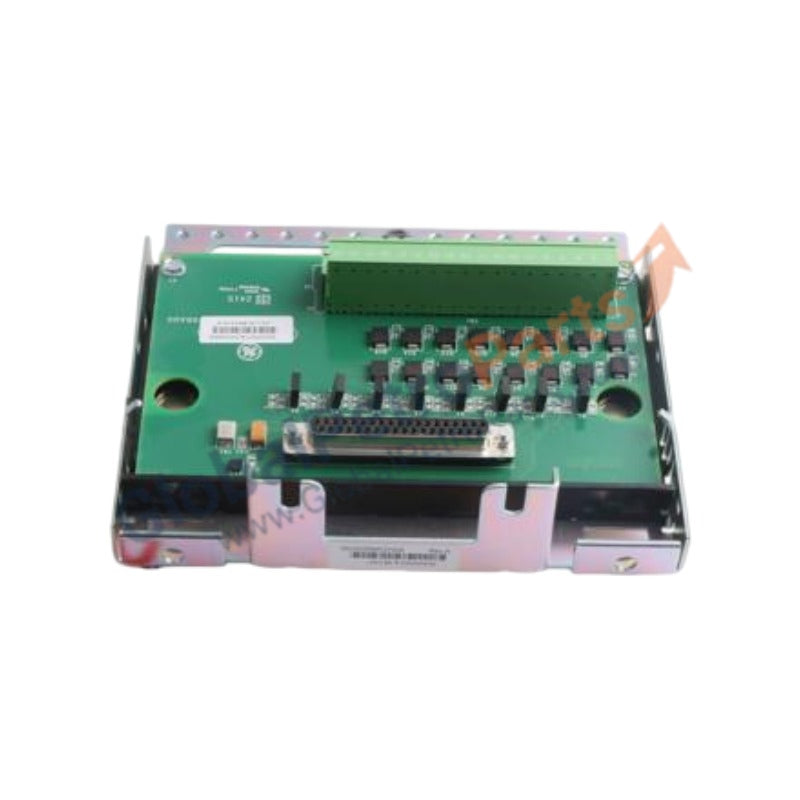

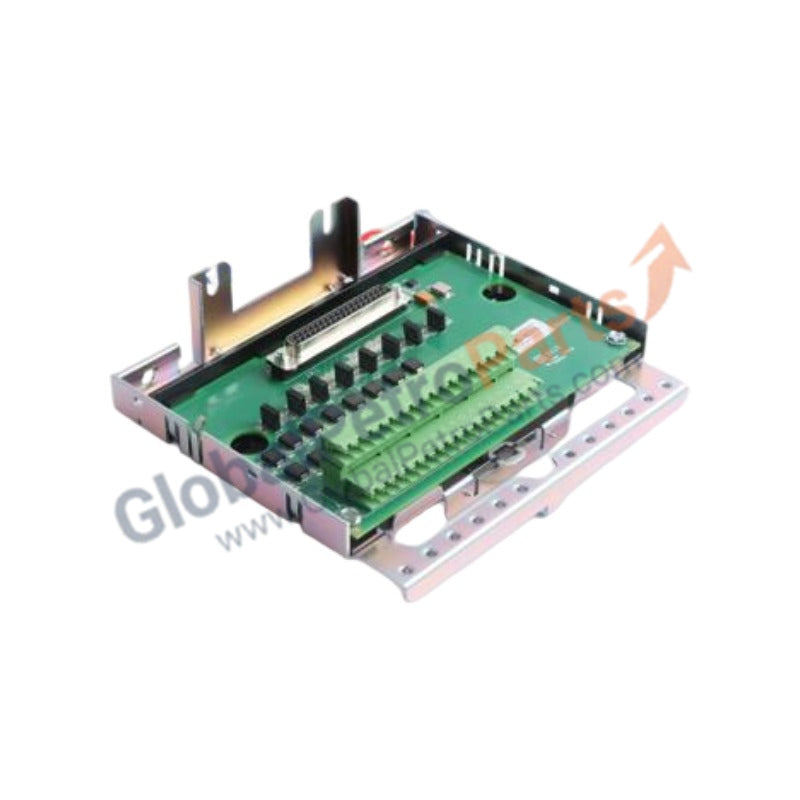

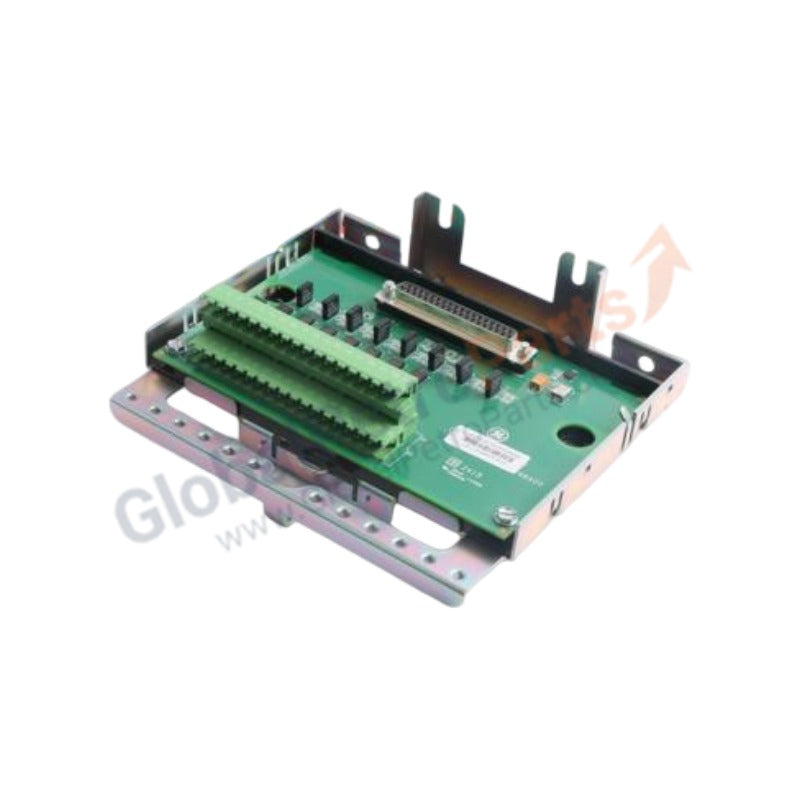

The GE IS200STAOH2AAA operates as a rugged, high-density Analog Output Terminal Board (STAO) within the Speedtronic Mark VI turbine control platform. This heavy-duty component serves as the primary physical landing and marshalling point for field-side actuator and positioning control loops. It transmits precise 4-20 mA current regulation signals to fuel control valves, guide vanes, and variable speed drives. The board links directly with the active internal VAOC analog output processor card or the IS230SNAOH2A I/O pack via high-density cabling. Deploying this Brand New, original GE terminal board stabilizes critical control loops and prevents parameter drifting that can cause unexpected thermal shutdowns.

Technical Specifications

The table below displays the electrical channels, terminal types, and environmental ratings for the IS200STAOH2AAA board:

Engineering Advantages

The IS200STAOH2AAA introduces specific hardware shielding and distribution mechanics that resolve common transmission errors on noisy power generation decks:

• Dedicated Shield Ground Bars: Ground metallization tracks run adjacent to every screw terminal terminal, routing inductive electromagnetic noise instantly away from the low-voltage analog control current loops.

• Onboard Loop Surge Suppression: Integrated metal-oxide varistors (MOVs) and transient absorption networks clamp field-induced high-voltage spikes, protecting internal multi-layer PCB circuits from breakdown.

• Redundant Loop Distribution: The circuit geometry routes control signals across Simplex or Triple Modular Redundant (TMR) architectures, allowing a backup control core to manage the valve outputs seamlessly if a master processor card faults.

• High-Vibration Terminal Retention: Industrial barrier-type terminals grasp heavy-gauge field wiring securely, resisting continuous low-frequency vibrations from large gas turbines that cause loose contact faults.

FAQs

• What specific operational baseline does the "H2AAA" suffix configuration establish?

  The "H2AAA" alphanumeric code designates the second generation hardware revision layer, particular component tolerances, and enhanced transient filtering metrics for the STAO series. This version pairs flawlessly with the IS230SNAOH2A analog output pack. Always cross-reference your site hardware ledger inside the GE Toolbox software application before committing new logic updates.

• Does this board require manual calibration using trim pots during commissioning?

  No. The IS200STAOH2AAA utilizes a passive termination architecture containing zero mechanical potentiometers. The downstream active VAOC processor board or local I/O pack handles all channel scaling, offset zeroing, and loop calibration digitally via the main human-machine interface (HMI).

• Can technicians alter jumper configurations on this board while the turbine runs online?

  No. Adjusting configuration lines or disconnecting terminal plugs during live machine execution breaks active valve control feedback loops instantly. This drop triggers an immediate valve travel fault, closing fuel or steam inputs and forcing a total emergency turbine trip. Perform all board maintenance exclusively during scheduled plant shutdown windows.
