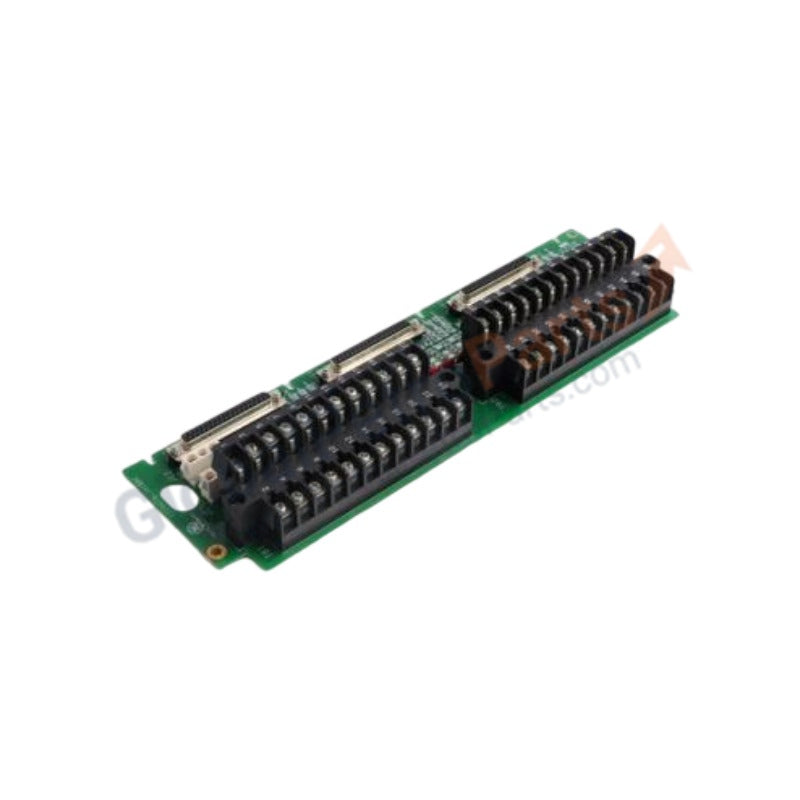

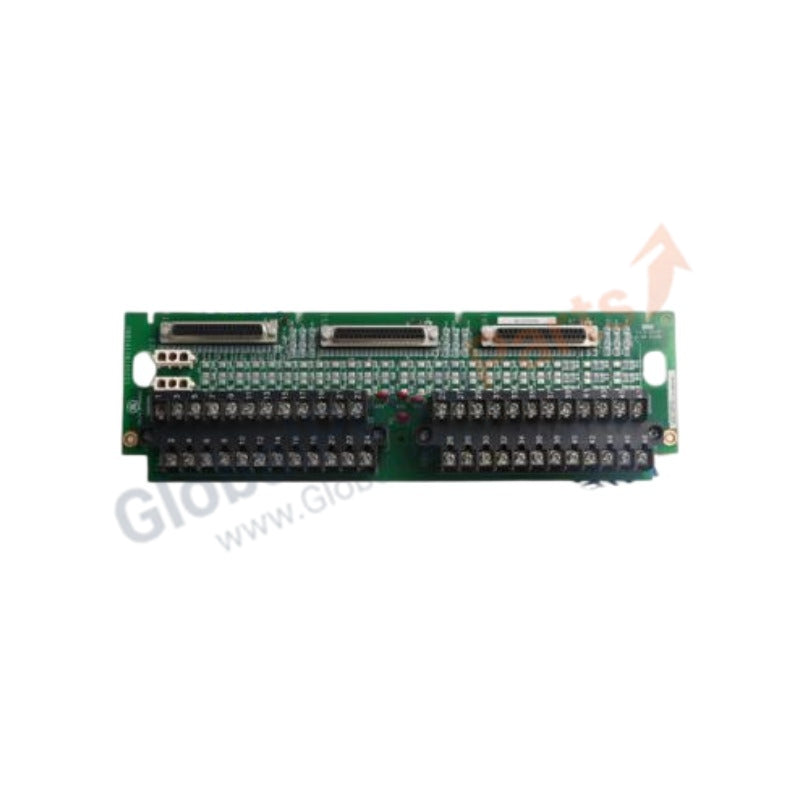

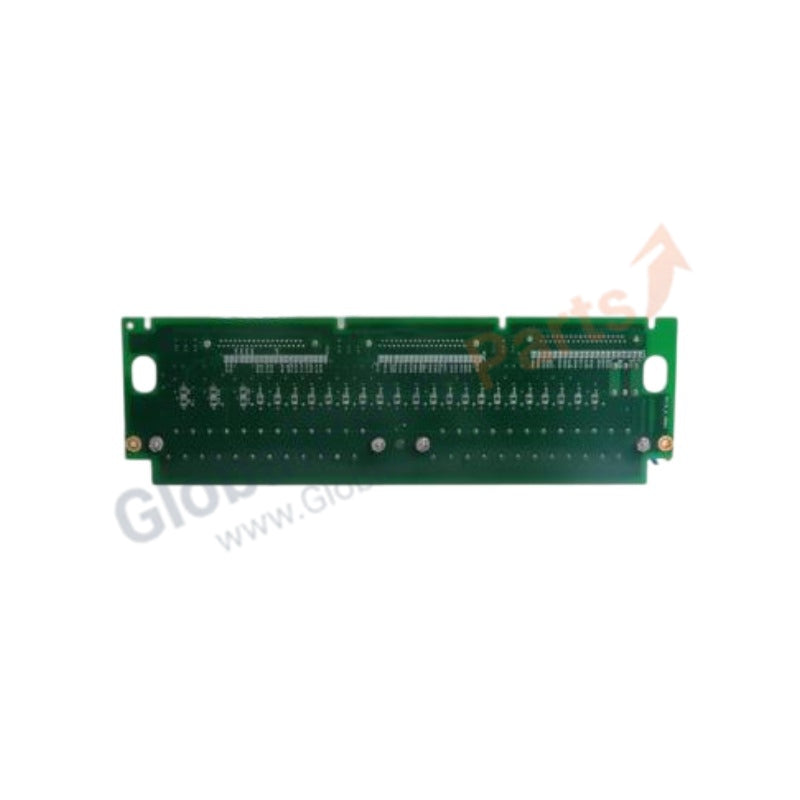

GE Speedtronic Mark VI Contact Input Terminal Board IS200TBCIH1BBC

Product Overview

The GE IS200TBCIH1BBC operates as a dedicated Contact Input Terminal Board within the Speedtronic Mark VI turbine control system platform. This heavy-duty hardware component provides the direct physical marshalling interface for discrete field devices, capturing states from pressure switches, limit switches, and auxiliary relay contacts across the plant. It accepts dry contact inputs, filters external electrical noise, and routes clean digital telemetry directly to the VTCI processor board inside the VME card cage. Installing this Brand New, original GE terminal board guarantees crisp, bounce-free state transitions and eliminates intermittent sequence-of-events (SOE) logging errors.

Technical Specifications

The table below specifies the mechanical layout, channel density, and electrical thresholds of the IS200TBCIH1BBC board:

Engineering Advantages

The IS200TBCIH1BBC addresses challenging discrete signal problems found in high-voltage substation and generator deck environments:

• Optocoupler Signal Isolation: Onboard optical isolation networks separate sensitive backplane microprocessors from field-side electrical surges and high-voltage spikes, preventing transient component destruction.

• Hardware Contact Debouncing: Integrated resistor-capacitor (RC) filtering networks eliminate physical switch contact bounce, ensuring that the control system records only genuine, stable state changes.

• High-Density Marshalling Economy: The compact board footprint consolidates 24 discrete channels into two parallel terminal strips, saving significant rail space inside crowded marshalling enclosures.

• Flexible Wetting Configuration: Onboard jumpers allow engineers to select between standard 24 VDC loop excitation or high-penetration 125 VDC wetting currents, which easily burn through surface oxidation on old field switch contacts.

FAQs

• What specific manufacturing profile does the "H1BBC" suffix revision establish?

  The "H1BBC" alphanumeric grouping designates the exact component layout, trace geometry, and surge suppression hardware revision baseline for this TBCI board iteration. This variation interfaces seamlessly with matching Mark VI VTCI processing modules. Field engineers must cross-reference this revision within the GE Toolbox software application before compiling new system logic.

• Can technicians wire wet (powered) external contacts to the IS200TBCIH1BBC?

  No. The IS200TBCIH1BBC expects dry (unpowered) field contacts because the board itself supplies the loop excitation voltage. Introducing external AC or DC power sources into these terminals risks overloading the internal optocouplers and destroying the channel circuitry.

• Does this board support sequence-of-events (SOE) time-stamping accuracy?

  Yes. When paired with a compatible Mark VI VTCI processor board, the hardware capture circuits support high-resolution sequence-of-events recording. The system stamps contact state changes down to a 1-millisecond resolution for precise post-trip analysis.
