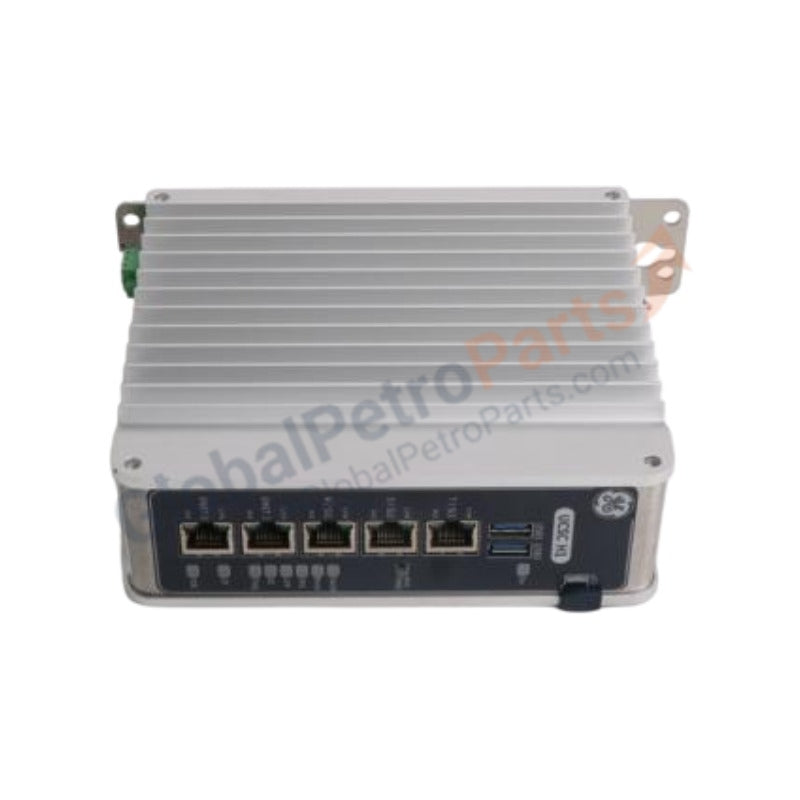

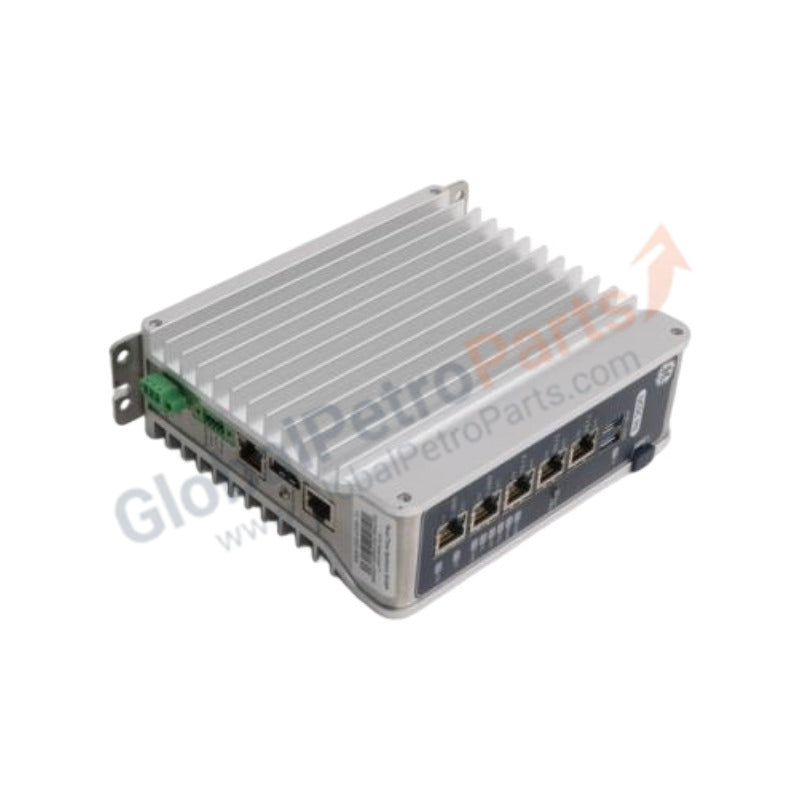

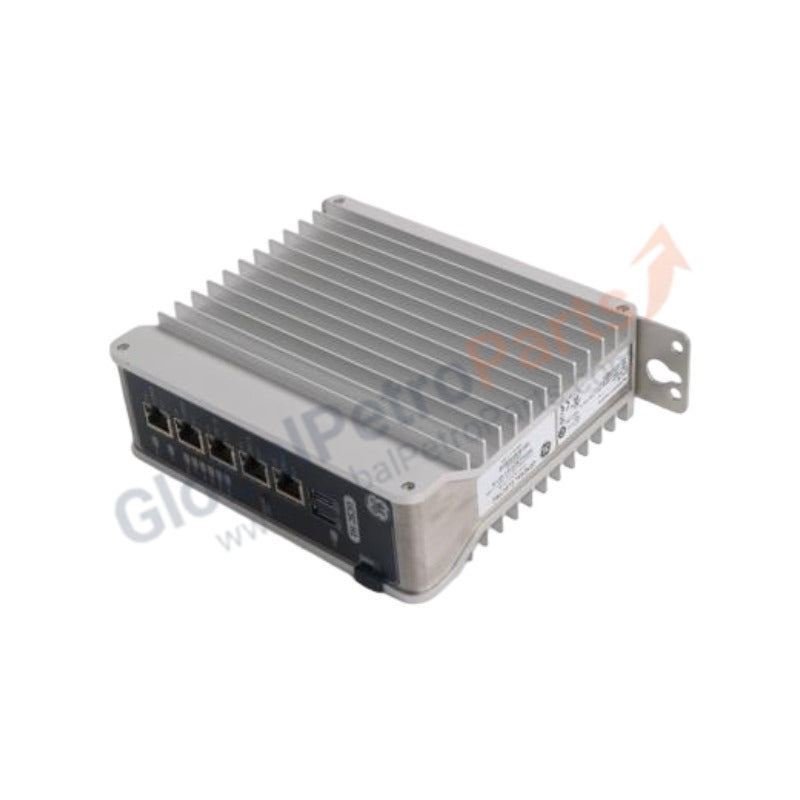

GE Speedtronic Mark VIe UCSC Controller Module IS420UCSCH1A

Product Overview

The GE IS420UCSCH1A operates as a primary core Controller Module (UCSC) within the General Electric Speedtronic Mark VIe and Mark VIes control system architecture. This high-capacity compute engine executes complex application logic, processes heavy control loops, and coordinates distributed I/O modules across the plant network. It runs a deterministic real-time operating system to handle turbine governing, power management, and safety interlock calculations. Integrating this Brand New, original GE processor into your system architecture ensures maximum application synchronization and eliminates processing latency bottlenecks during heavy grid fluctuations.

Technical Specifications

The table below maps out the processor performance parameters, communication interfaces, and environmental limits of the IS420UCSCH1A controller module:

Engineering Advantages

The IS420UCSCH1A introduces advanced hardware computing enhancements that solve critical execution issues on heavy industrial turbine decks:

• Elimination of Moving Parts: The module utilizes an expansive integrated aluminum heatsink for passive convection cooling, completely eliminating mechanical cooling fan failures which frequently cripple standard industrial PCs.

• Deterministic Dual Network Fabric: Multiple onboard gigabit Ethernet interfaces separate local I/O network (IONet) tracking from upper-level HMI supervisory networks, keeping local control updates locked to strict millisecond cycles.

• Solid-State Memory Integrity: High-grade onboard flash memory retains boot profiles and application files securely, resisting data corruption risks triggered by severe mechanical machine vibrations.

• Direct Panel-Rail Stabilization: A heavy-duty back mounting bracket clips the processor housing directly onto a standard enclosure sub-panel, maximizing thermal dissipation and providing a rigid low-impedance ground path.

FAQs

• What specific software platform configures and monitors the IS420UCSCH1A controller?

  Engineers use the GE ControlST software suite (incorporating the ToolboxST application) to design control logic, map I/O tags, and configure the IP address matrix for the IS420UCSCH1A. The controller compiles code down to machine execution files locally, supporting rapid data trend captures down to a single task frame.

• How does this controller handle redundancy configuration in a Mark VIe system?

  The IS420UCSCH1A supports Simplex, Dual, or Triple Modular Redundant (TMR) configurations. In a TMR setup, three identical controllers sit side-by-side, executing the exact same control code simultaneously. They vote on outputs via the network fabric, meaning a single controller hardware failure will not interrupt the active generation profile.

• What mounting precautions prevent communications disruption on the IONet lines?

  Field technicians must secure all network lines using industrial-grade shielded CAT5e or CAT6 cables. Mount the module away from high-current variable frequency drives (VFDs) or field ignition transformers, and verify that the panel enclosure maintaining the controller satisfies the recommended ambient humidity parameters.
