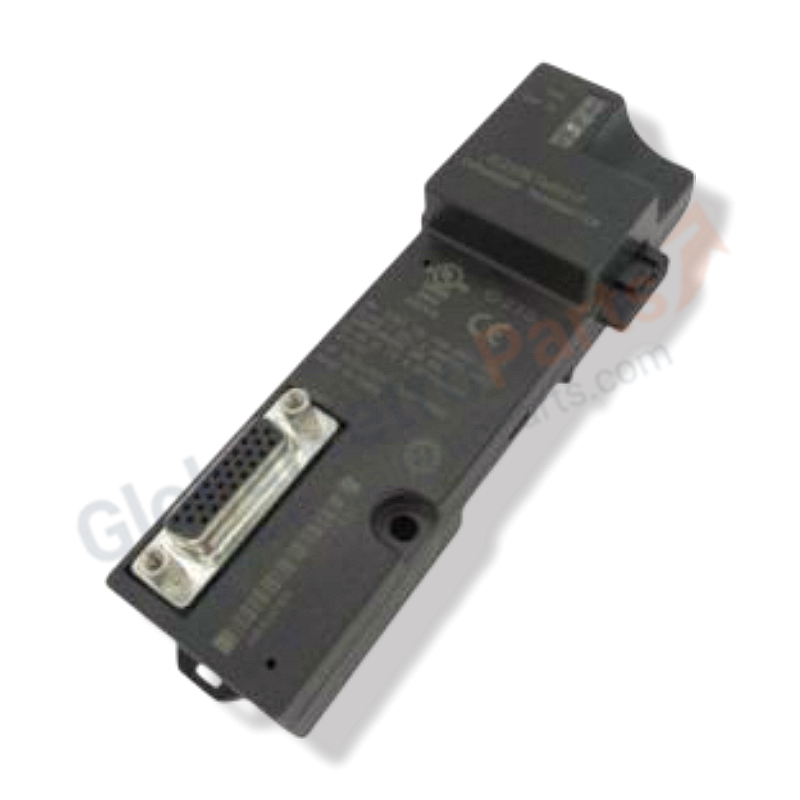

GE VersaMax Micro IC200ETM001 Ethernet Interface Module

Product Summary

The GE Fanuc IC200ETM001 is an Ethernet Interface Module for the VersaMax Micro PLC series. It adds 10/100 Mbps Ethernet connectivity to VersaMax Micro controllers, enabling remote programming, monitoring, and communication over standard TCP/IP networks.

Core Specifications

• Model Number: IC200ETM001
• Type: Ethernet Interface Module
• Protocol: 10/100 Mbps Ethernet, TCP/IP
• Connector: RJ45
• Compatibility: VersaMax Micro PLCs
• Manufacturer: GE Fanuc / Emerson

Key Features

• Adds Ethernet connectivity to VersaMax Micro PLCs
• Supports remote programming and monitoring
• Standard RJ45 connection
• Easy snap-on installation to Micro PLC

Environmental Limits

• Operating Temperature: -20°C to +60°C
• Humidity: 5% to 95% RH, non-condensing

Frequently Asked Questions

What is the IC200ETM001 used for?

It adds Ethernet communication to VersaMax Micro PLCs for remote access and network integration.

What PLCs is it compatible with?

VersaMax Micro series PLCs including IC200UDRxxx and IC200UDDxxx models.

Installation Guide

Step-by-Step

1. Power down the PLC
2. Snap the module onto the Micro PLC expansion port
3. Connect Ethernet cable to RJ45 port
4. Power up and configure IP address

Related Part Numbers

• IC200ETM001 — Ethernet Interface Module (this part)
• IC200UEM001 — USB Interface Module
• IC200UDR040 — VersaMax Micro 40-Point PLC
