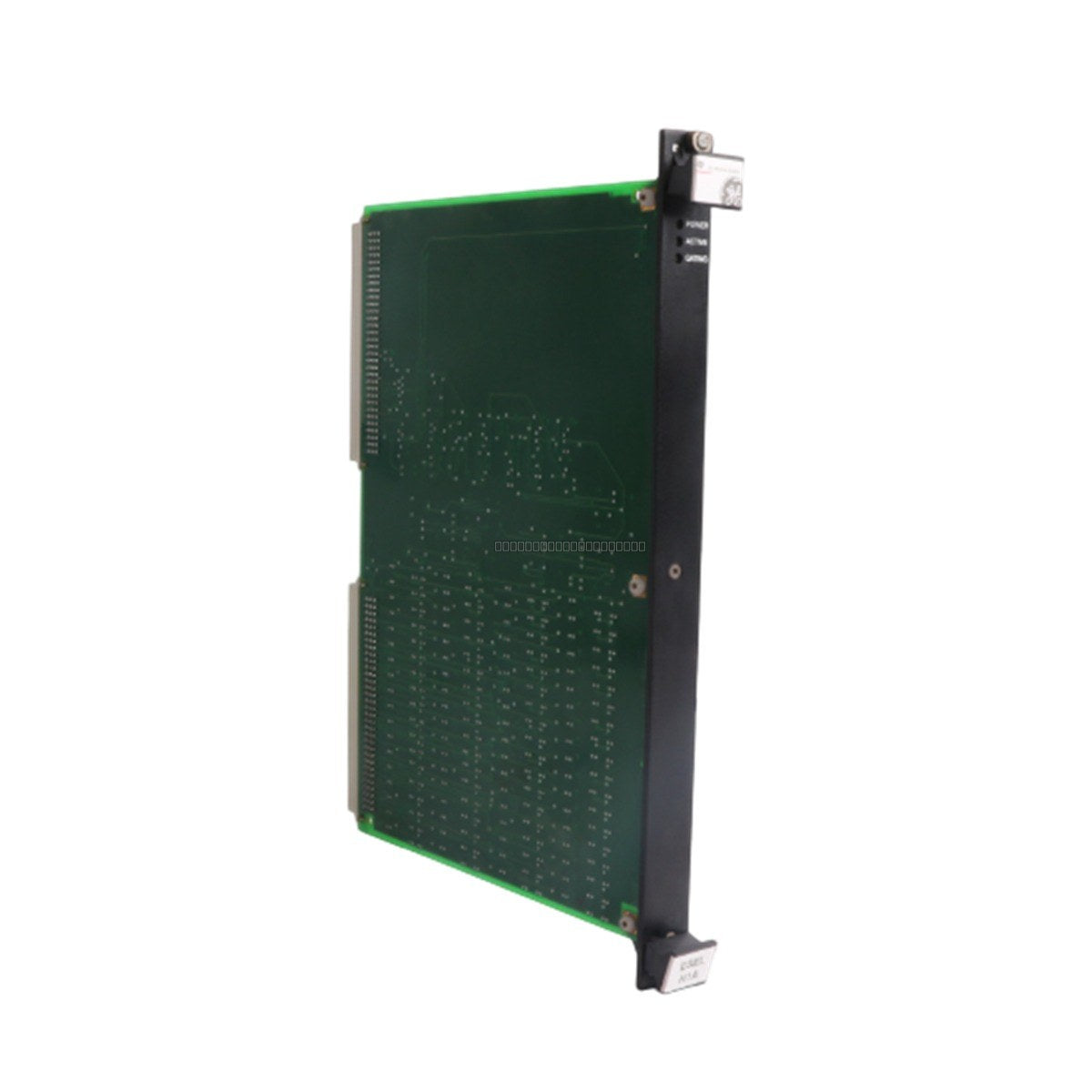

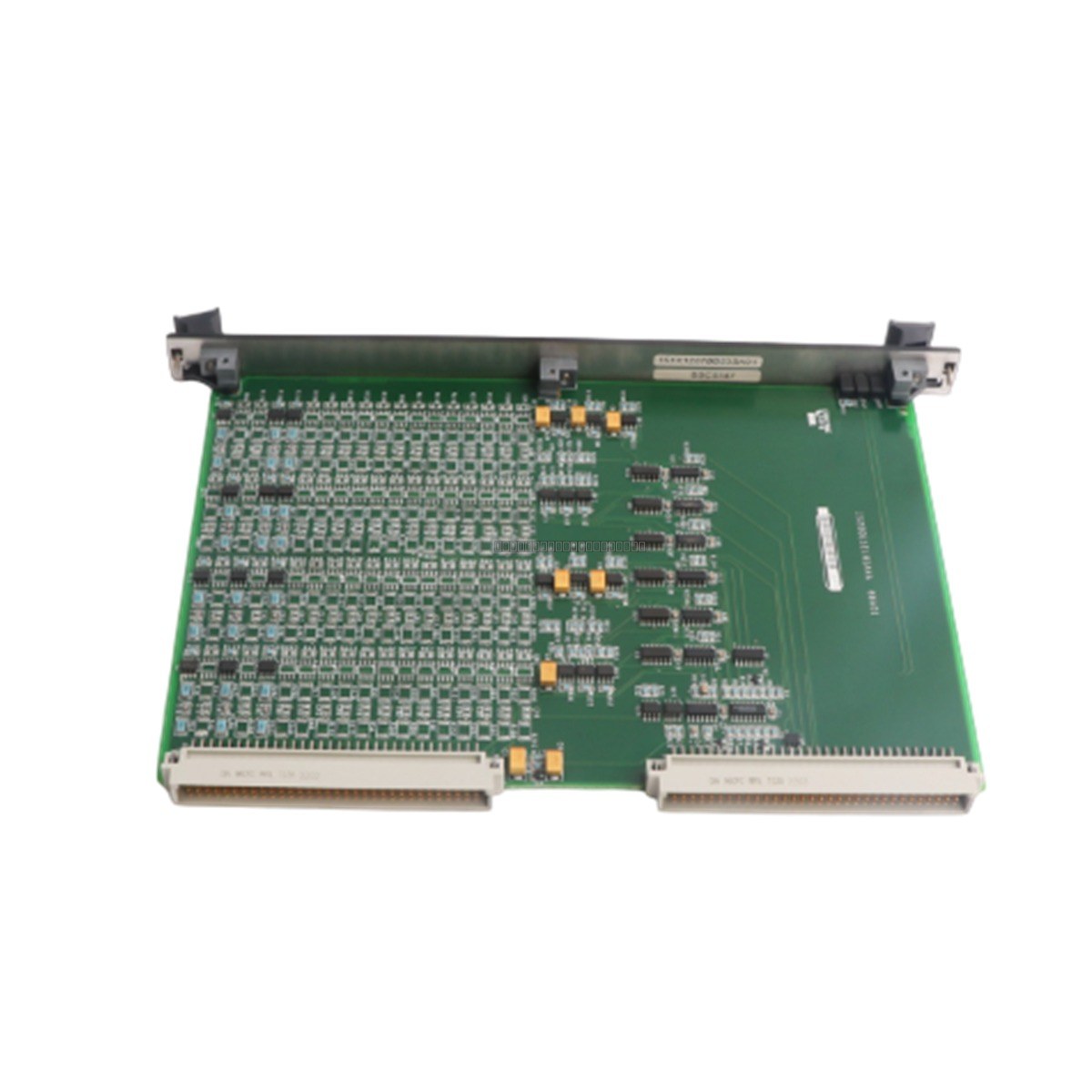

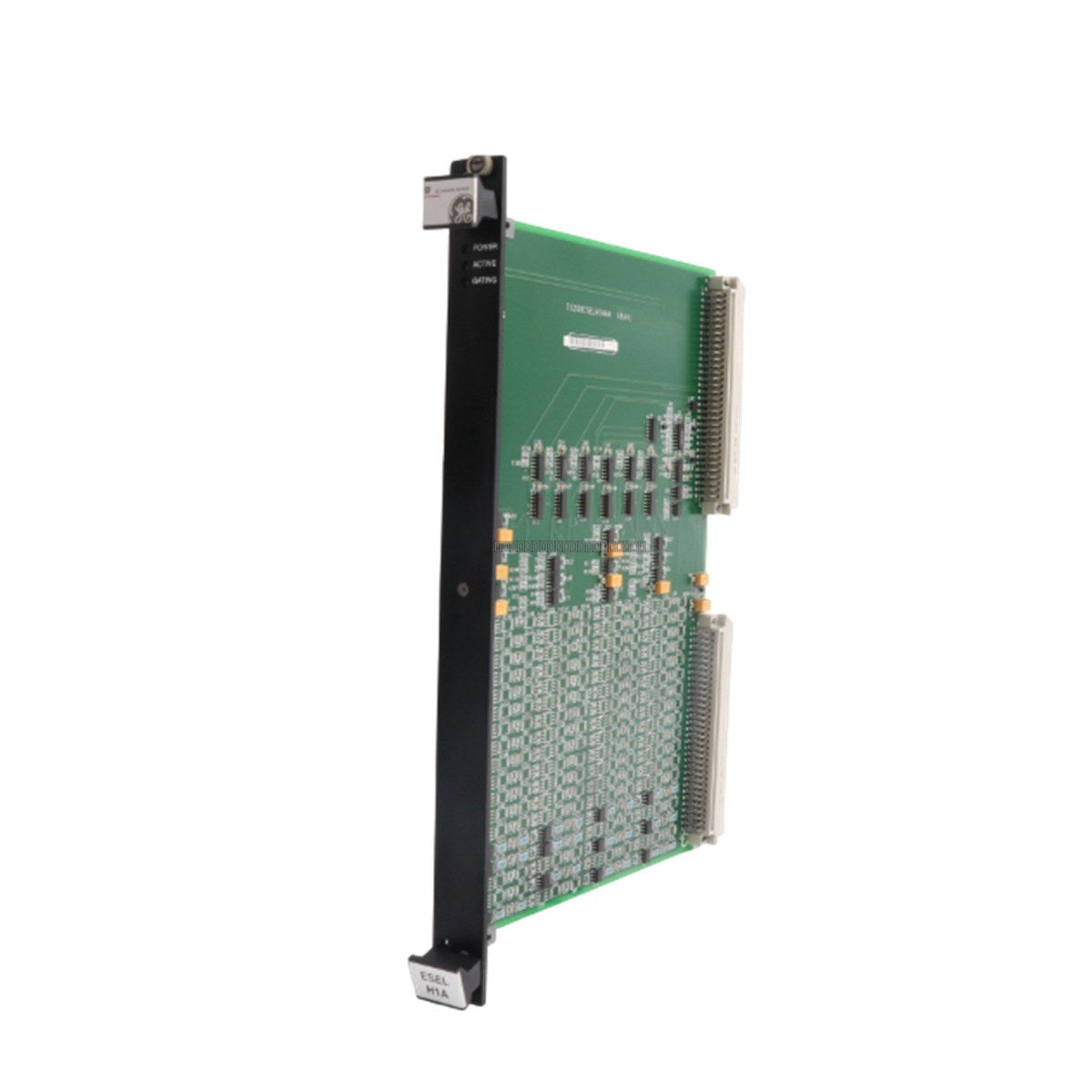

GE Fanuc IS200ESELH1A EX2100 Exciter Selector Board

Description

The IS200ESELH1A is a critical Exciter Selector Board designed for the General Electric EX2100 series turbine control ecosystem. This module is engineered for high-reliability power generation environments and facilitates the transmission of logic-level gate pulse signals from the Master I/O (EMIO) board to the Exciter Gate Pulse Amplifier (EGPA) boards housed within the Power Conversion Cabinet. By managing six distinct gating commands, the IS200ESELH1A ensures precise control over the power bridge, supporting stable excitation in thermal, gas, and hydro power plant operations.

Features

• Supports single bridge driver configurations for one Power Conversion Module (PCM).
• Integrates into both simplex and redundant excitation architectures.
• Enables online repair and fault tolerance when configured in dual-board (ESEL1 and ESEL2) setups.
• Maintains physical and logical separation between Master 1 and Master 2 control paths.
• Converts internal logic pulses into robust signals for external distribution cables.

Applications

This board is primarily utilized in GE EX2100 Excitation systems for power generation facilities. It is essential for managing gate pulse distribution to power bridges, ensuring reliable turbine control and minimizing unscheduled downtime in critical infrastructure.

Technical Specifications

Installation Guidelines

• Ensure the system is powered down before inserting or removing the module from the rack.
• Handle the board using proper ESD (Electrostatic Discharge) precautions to prevent damage to sensitive logic components.
• Verify that the board is correctly seated in the designated slot within the Power Conversion Cabinet.
• Ensure all signal cables are securely connected and routed to minimize EMI interference.
• In redundant configurations, ensure that ESEL1 and ESEL2 are correctly mapped to their respective M1 and M2 controllers.

FAQ

What is the primary function of the IS200ESELH1A?

The IS200ESELH1A acts as an interface board that routes gate pulse signals from the Master I/O board to the Exciter Gate Pulse Amplifier boards, enabling precise control of the power bridge.

Can this board be used in redundant systems?

Yes, the IS200ESELH1A is designed to support redundant architectures using dual boards (ESEL1 and ESEL2), which allows for fault tolerance and online maintenance.
