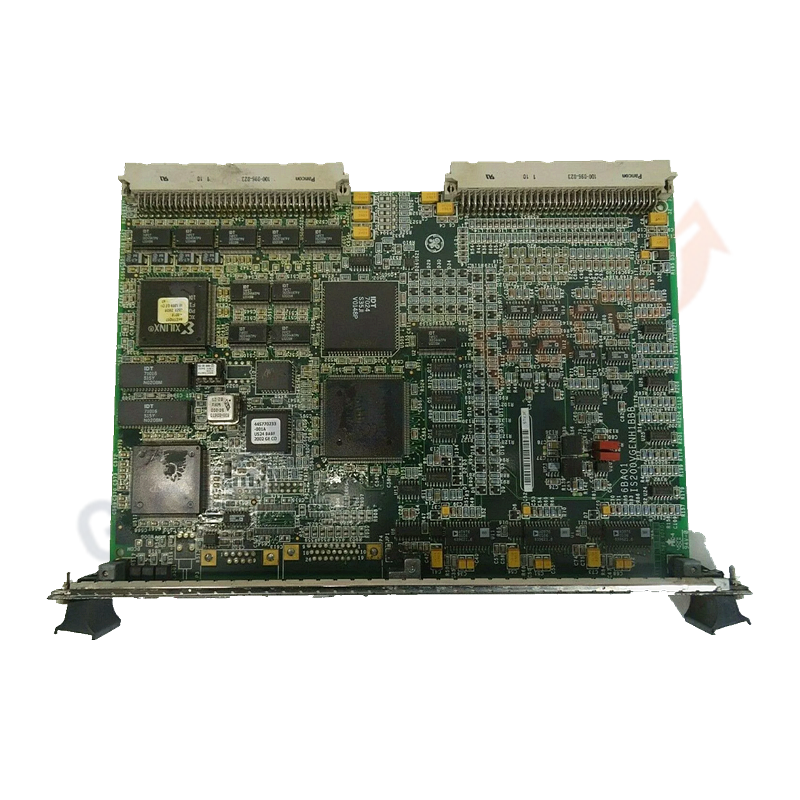

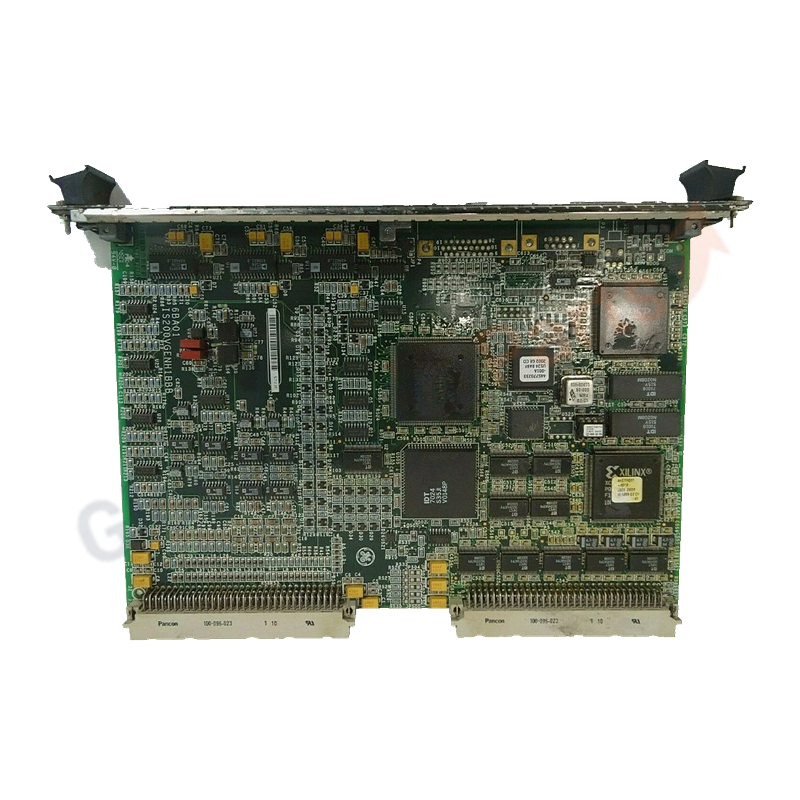

General Electric IS200VGENH1B Generator Monitor And Trip Board PCB Circuit Board

Product Overview

The GE IS200VGENH1B is a VME Generator Monitor and Trip Board designed for the Mark VI Speedtronic turbine control system. It interfaces with three-phase potential transformers (PTs) and current transformers (CTs) to monitor generator voltage, current, power, and power factor. The board provides specialized control functions for reheat steam turbines, including power-load unbalance protection and early-valve actuation logic. Built with a Xilinx XCS30 FPGA and XC95216 PLD, it delivers high-performance signal processing for critical generator protection applications.

Key Specifications

• Model: IS200VGENH1B
• Type: VME Generator Monitor & Trip Board
• Series: Mark VI Speedtronic
• Functional Acronym: VGEN
• Revision: B
• Mounting Style: VME
• Channels: 8
• Span: 0.3532 to 4.054 V
• Power Supply: 24 VDC
• Connectors: Two backplane connectors with parallel conductive traces
• PCB Coating: Conformal coating for environmental protection
• Technology: Surface mount
• Dimensions: Standard VME board size
• Weight: ~0.5 kg

Environmental Specifications

• Operating Temperature: -30°C to +65°C
• Storage Temperature: -40°C to +85°C
• Humidity: 5% to 95% RH (non-condensing)

Installation Guide

1. Install the IS200VGENH1B in a compatible Mark VI VME rack slot.
2. Connect three-phase PT and CT secondary wiring to the board terminals.
3. Verify proper grounding and shielding to prevent EMI interference.
4. Configure generator protection setpoints (voltage, current, power factor limits) via Mark VI ToolboxST software.
5. Perform calibration and functional tests using simulated generator conditions.

FAQ

• Q: Is the IS200VGENH1B compatible with TRLY boards?
  A: Yes, it is compatible with TRLYH1B modules, but not with TRLYS1B modules.
• Q: Can it be used in TMR applications?
  A: Yes, the IS200VGENH1B supports both simplex and Triple Modular Redundant (TMR) configurations.
• Q: What generator parameters does it monitor?
  A: It monitors three-phase voltage, current, three-phase power, and power factor for comprehensive generator protection.
• Q: What is the difference between VGEN and TGEN boards?
  A: VGEN focuses on generator electrical monitoring; TGEN handles turbine-specific control functions. They often work in tandem.

Selection Tips

• Specify IS200VGENH1B for Mark VI generator protection and monitoring applications.
• Verify compatibility with existing TRLY relay boards before ordering.
• For reheat steam turbines, ensure early-valve actuation logic is enabled in the control configuration.

Data Source: Parameters verified against WOC hardware specifications and Mark VI system documentation. For complete installation and wiring details, refer to GE official Mark VI turbine control manuals.
