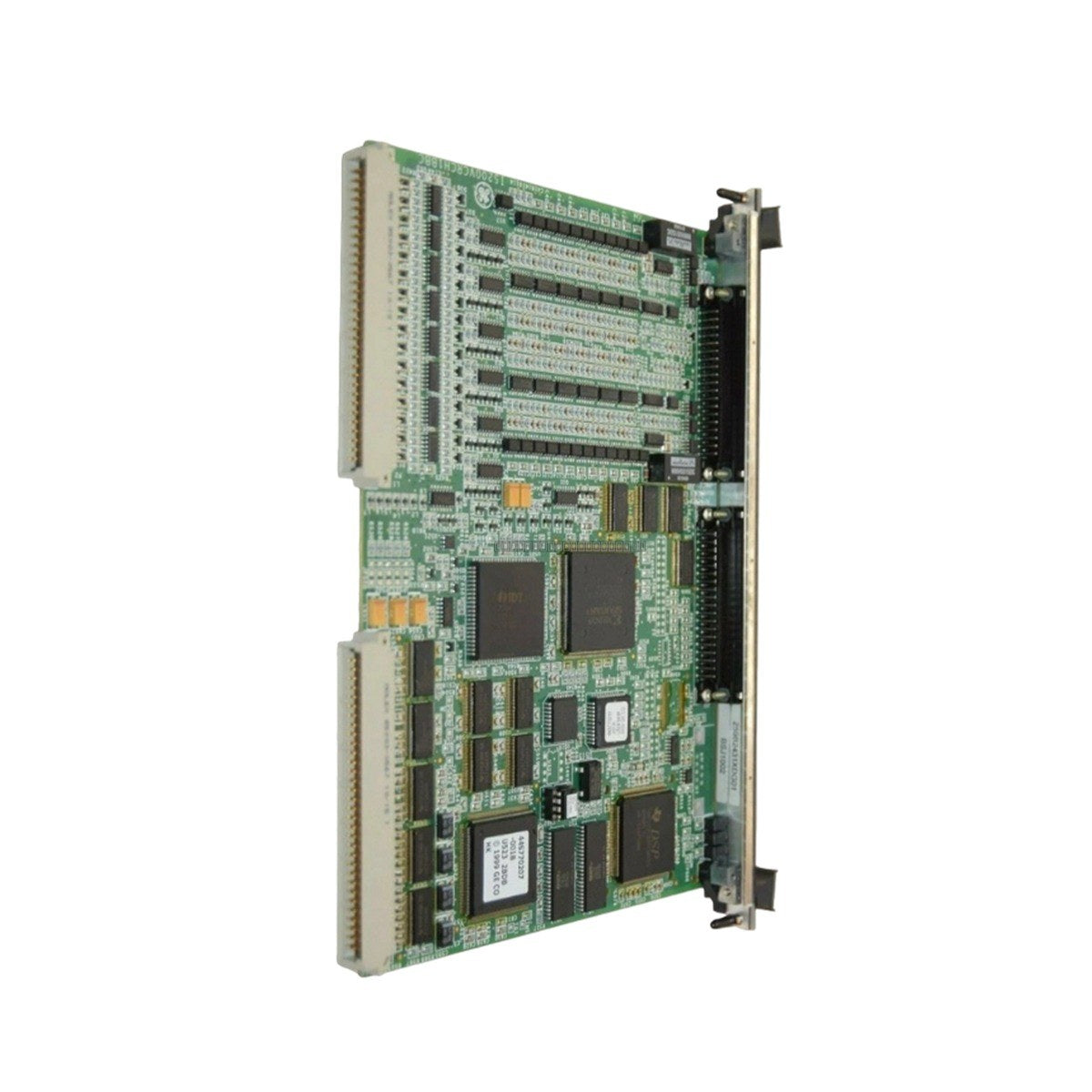

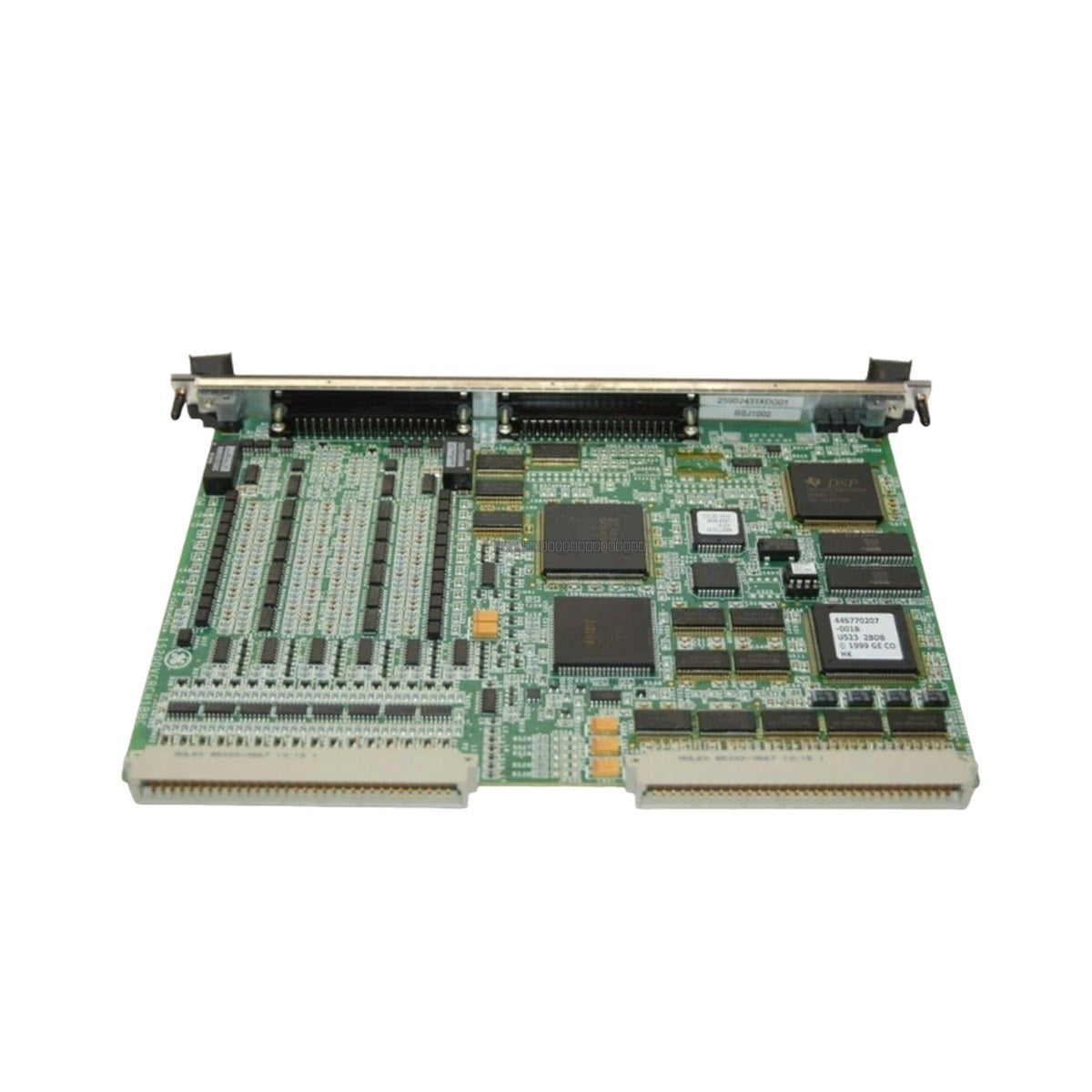

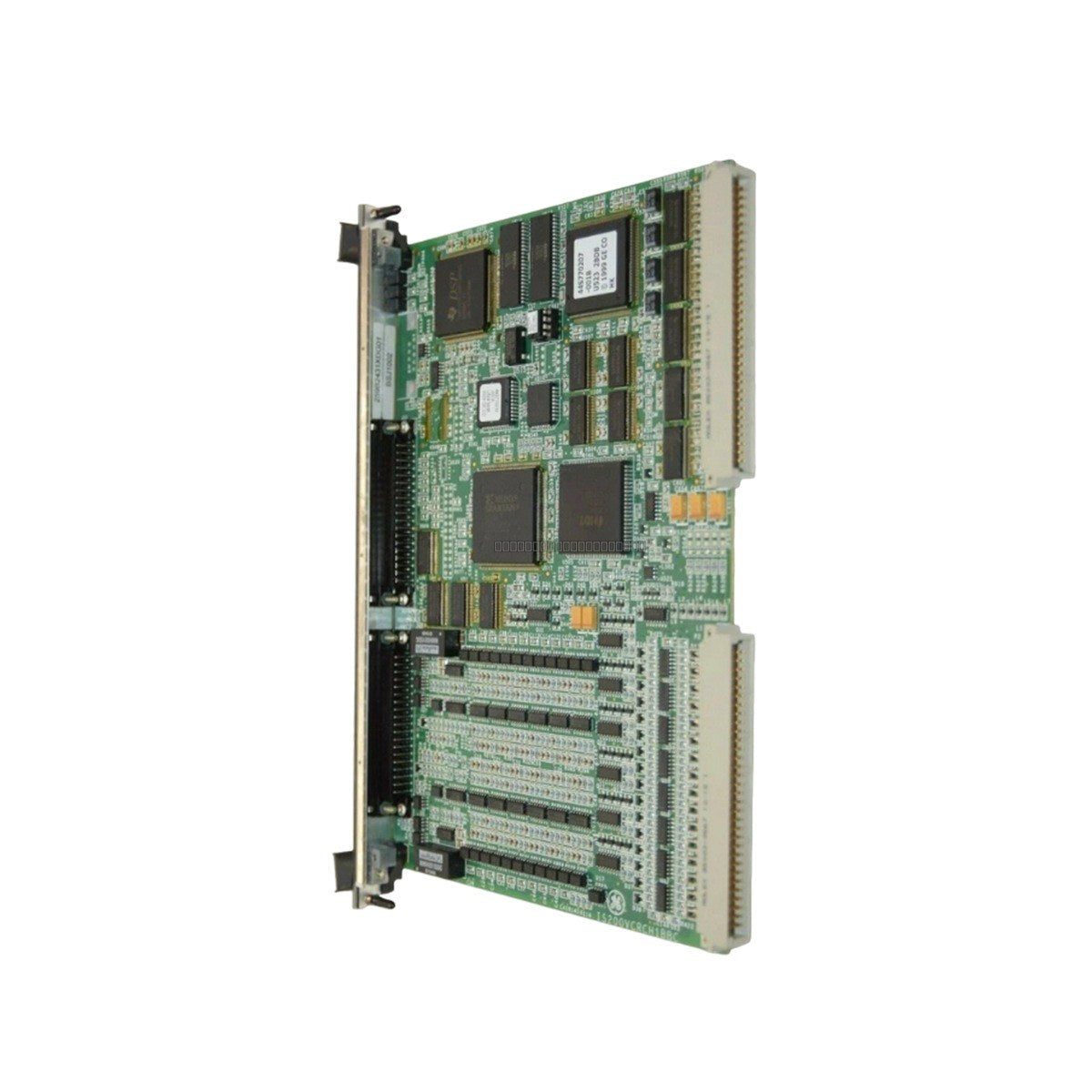

General Electric IS200VAOCH1BBA Mark VIe Analog Output Board

Description

The IS200VAOCH1BBA is an Analog Output Board designed for the General Electric Mark VIe control system. This module serves as a critical interface for delivering precise analog control signals to field devices, ensuring reliable operation within industrial automation environments.

Features

• Provides 16 isolated analog output channels.
• Configured for 20 mA current loop output signals.
• Designed for integration within the Mark VIe distributed control architecture.
• VAOC functional abbreviation for system identification.

Technical Specifications

Installation Guidelines

• Ensure the control system is powered down before installing or removing the module from the rack.
• Handle the board using proper ESD (electrostatic discharge) protection measures to prevent damage to sensitive electronic components.
• Verify that the module is fully seated in the designated slot to ensure proper backplane communication.
• Ensure all field wiring is properly terminated and shielded to minimize electromagnetic interference (EMI).
• Maintain adequate ventilation within the control cabinet to prevent overheating during operation.

FAQ

What is the primary function of the IS200VAOCH1BBA?

The IS200VAOCH1BBA is an analog output board used in the GE Mark VIe system to convert digital control signals into 16 individual 20 mA analog outputs for field instrumentation and actuators.

Is this module compatible with other Mark VI series?

This module is specifically designed for the Mark VIe control platform. Please consult your system documentation to ensure compatibility with your specific controller revision.
