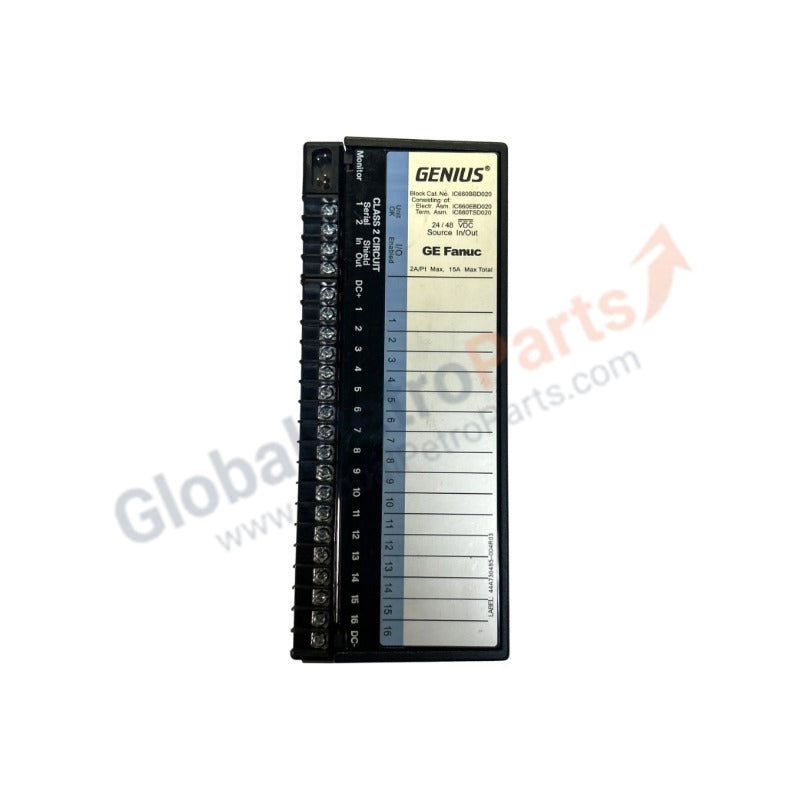

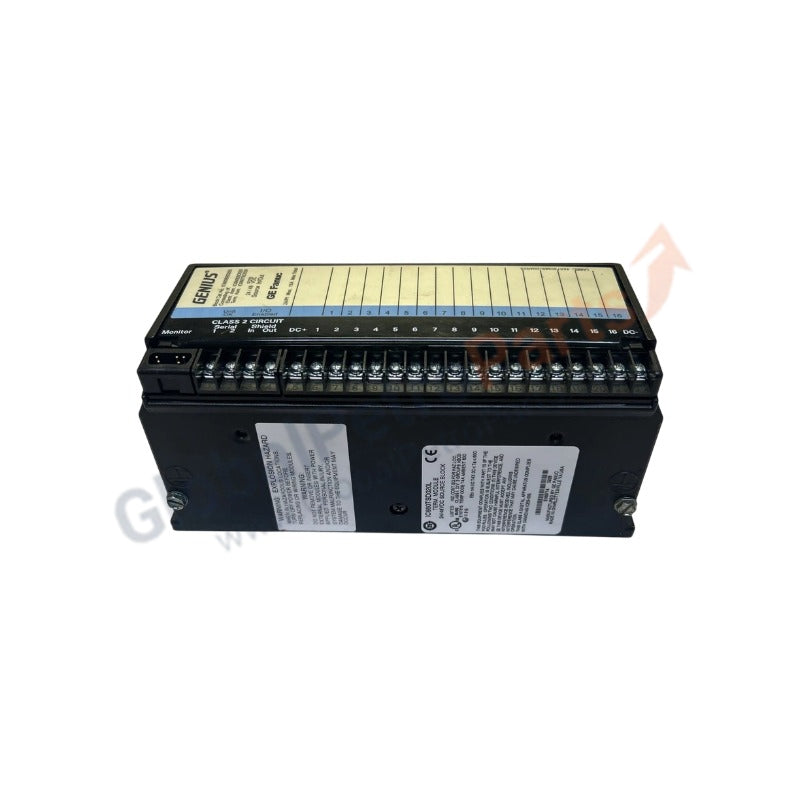

Genius I/O Discrete Block IC660BBD020 GE Fanuc

Product Overview

The IC660BBD020 (IC660BBD020) is a versatile 16-circuit discrete I/O block belonging to the GE Fanuc Genius I/O family. This module operates as a distributed I/O station, interfacing directly with the Genius network to provide decentralized control for 24 VDC or 48 VDC applications. This block functions autonomously by managing its own diagnostics and reporting circuit-level faults back to the controller. Ideal for automotive assembly lines, material handling, and chemical processing, the IC660BBD020 eliminates long cable runs by placing I/O points closer to field devices. We supply this component as 100% Brand New in original factory packaging to ensure maximum operational life and system integrity.

Technical Specifications

The IC660BBD020 utilizes advanced electronic power switching to manage 16 independent circuits that users can configure as inputs, outputs, or a combination of both.

Engineering Advantages

• Circuit-Level Configuration: This module provides ultimate flexibility by allowing engineers to define each of the 16 points as either an input or an output. This reduces the inventory of spare parts required, as one block type handles multiple field configurations.

• Intelligent Diagnostics: The IC660BBD020 detects and reports specific faults such as "No Load" or "Short Circuit" for each individual point. This allows maintenance teams to pinpoint exact field wiring issues without opening the control cabinet, drastically reducing Mean Time To Repair (MTTR).

• Genius Network Integration: By utilizing the global data capabilities of the Genius network, this block can share data with other blocks or controllers without requiring a dedicated CPU scan, enhancing the real-time response of the control system.

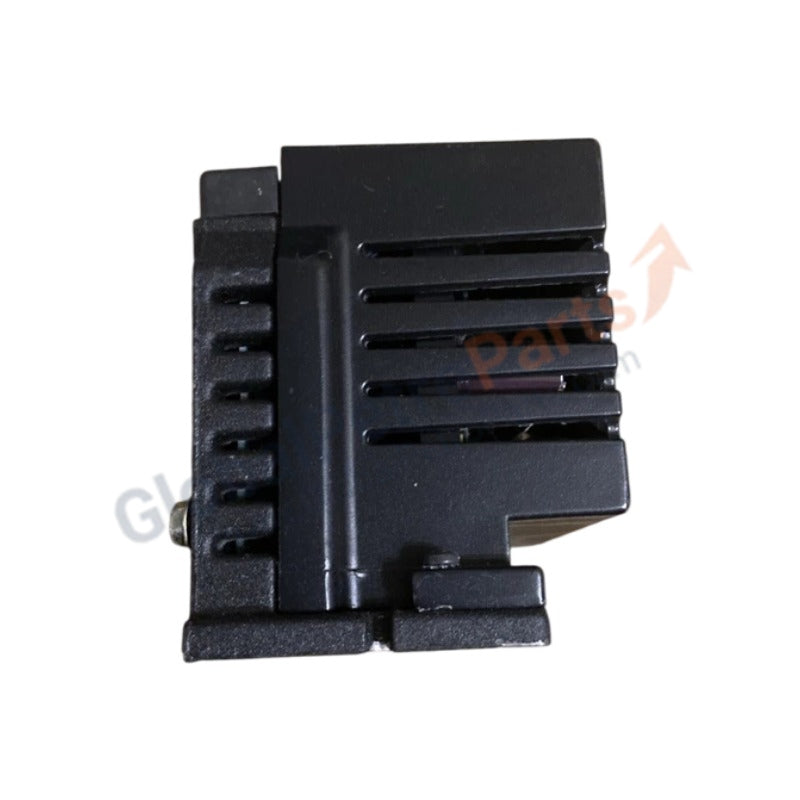

• Rugged Construction: The block features a robust, enclosed design capable of withstanding the electrical noise and vibration typical of heavy industrial plant floors. The terminal assembly is separable, allowing for module replacement without disturbing field wiring.

FAQs

• Can I use this block with 48 VDC systems?

  Yes. The IC660BBD020 is designed to operate within a wide DC voltage range (18 to 56 VDC), making it fully compatible with both 24 VDC and 48 VDC industrial power supplies.

• Does the block require a separate power supply for the Genius bus?

  The block draws its operating power from the same DC power source connected to its I/O terminals. It communicates with the controller via a shielded twisted-pair Genius bus cable.

• What happens if a circuit exceeds its current rating?

  The block incorporates electronic short-circuit and overload protection. If it detects an over-current condition, the block automatically shuts down the affected circuit and sends a diagnostic message to the CPU.

• Is this block compatible with modern PACSystems RX3i controllers?

  Yes. While Genius I/O is a legacy series, it integrates seamlessly with PACSystems RX3i using a Genius Bus Controller (GBC) module, providing a reliable migration path for older systems.
