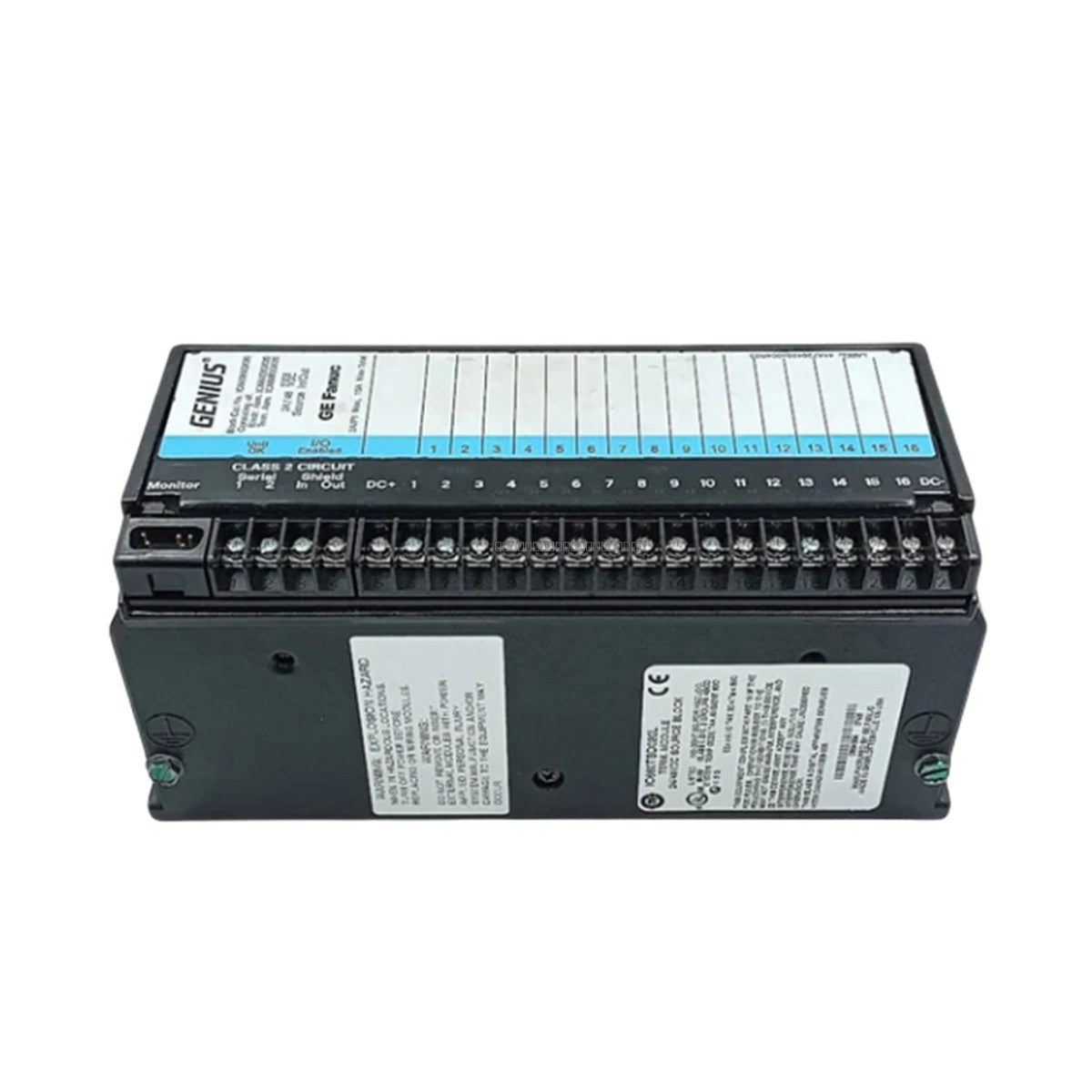

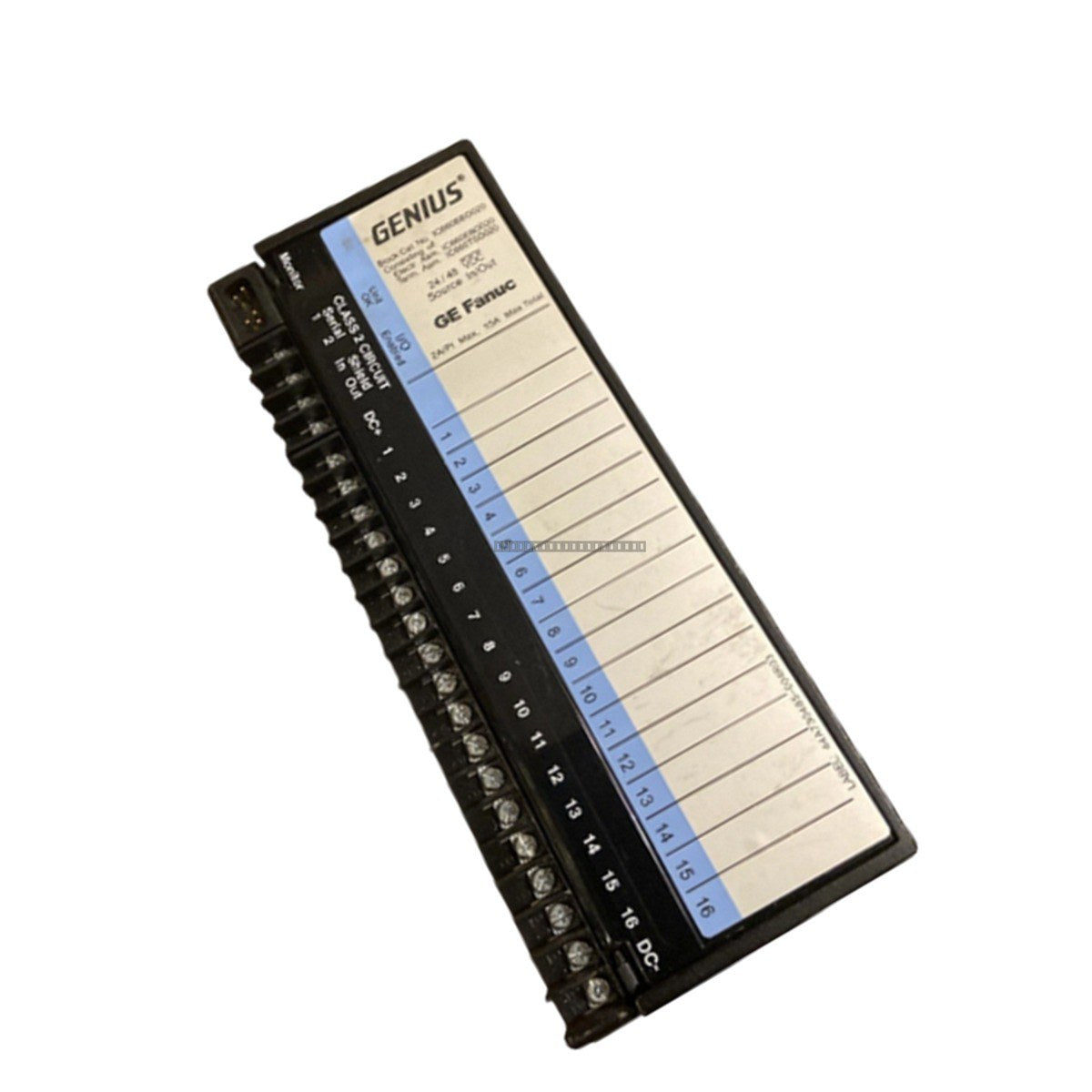

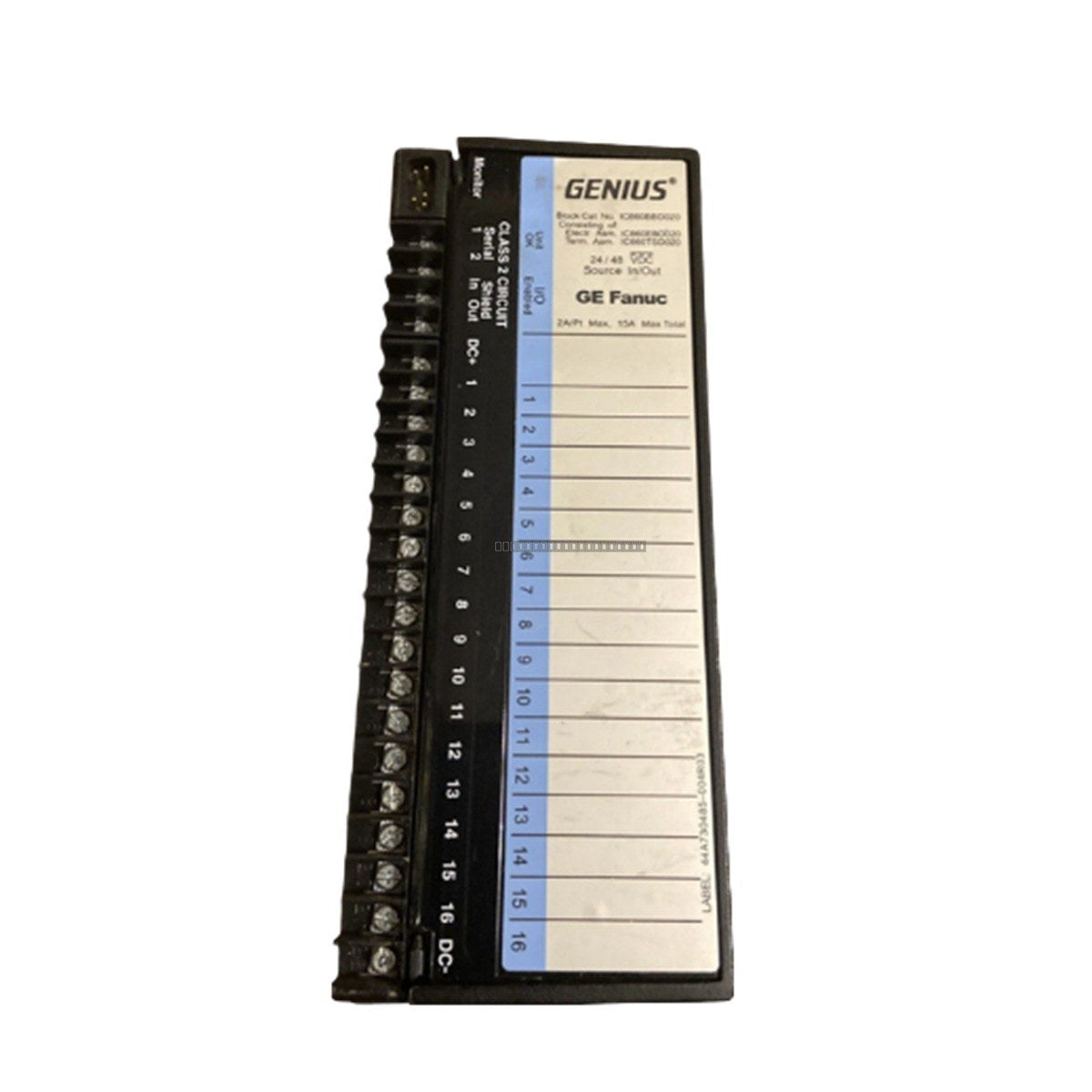

General Electric IC660EBD020 Genius Block I/O Module

Description

The General Electric IC660EBD020 is a high-performance Electronics Assembly module from the Genius I/O product series. Designed for industrial automation environments, this block I/O module serves as a critical interface for managing discrete signals within a distributed control architecture. It is engineered to provide robust signal processing and reliable communication between field devices and the primary control system.

Features

• Sixteen (16) discrete inputs for comprehensive signal monitoring.
• Wide operating voltage range of 18-56V DC, supporting nominal 24V DC systems.
• High-level block-to-block isolation of 1500V to protect sensitive control circuitry from field-side transients.
• Designed for high-reliability applications with a thermal drift specification of 70 PPM per degree Celsius.
• Integrated heat dissipation management rated at 68.8 Watts.

Technical Specifications

Installation Guidelines

• Ensure the control system is powered down before installing or removing the module from the I/O bus.
• Mount the module in an environment that allows for adequate ventilation, adhering to the 68.8W heat dissipation requirement.
• Use shielded cabling for all I/O connections to minimize electromagnetic interference (EMI) in industrial settings.
• Verify that the power supply voltage is within the 18-56V DC range before energizing the block.
• Handle the module using proper ESD (Electrostatic Discharge) prevention techniques to avoid damaging internal electronic components.

FAQ

What is the primary function of the IC660EBD020?

The IC660EBD020 is a Genius Block I/O module used for discrete input signal acquisition within a GE Genius I/O network, allowing for distributed control of field devices.

What are the power requirements for this module?

The module operates on a DC power supply ranging from 18V to 56V, with a maximum current draw of 300 mA.

Is this module suitable for high-temperature environments?

The module is rated for an operating temperature range of 0 degC to 60 degC. It should be installed in a climate-controlled enclosure or area that does not exceed these limits to ensure long-term reliability.
