General Electric IC660TBA023 Genius I/O Terminal Assembly

Description

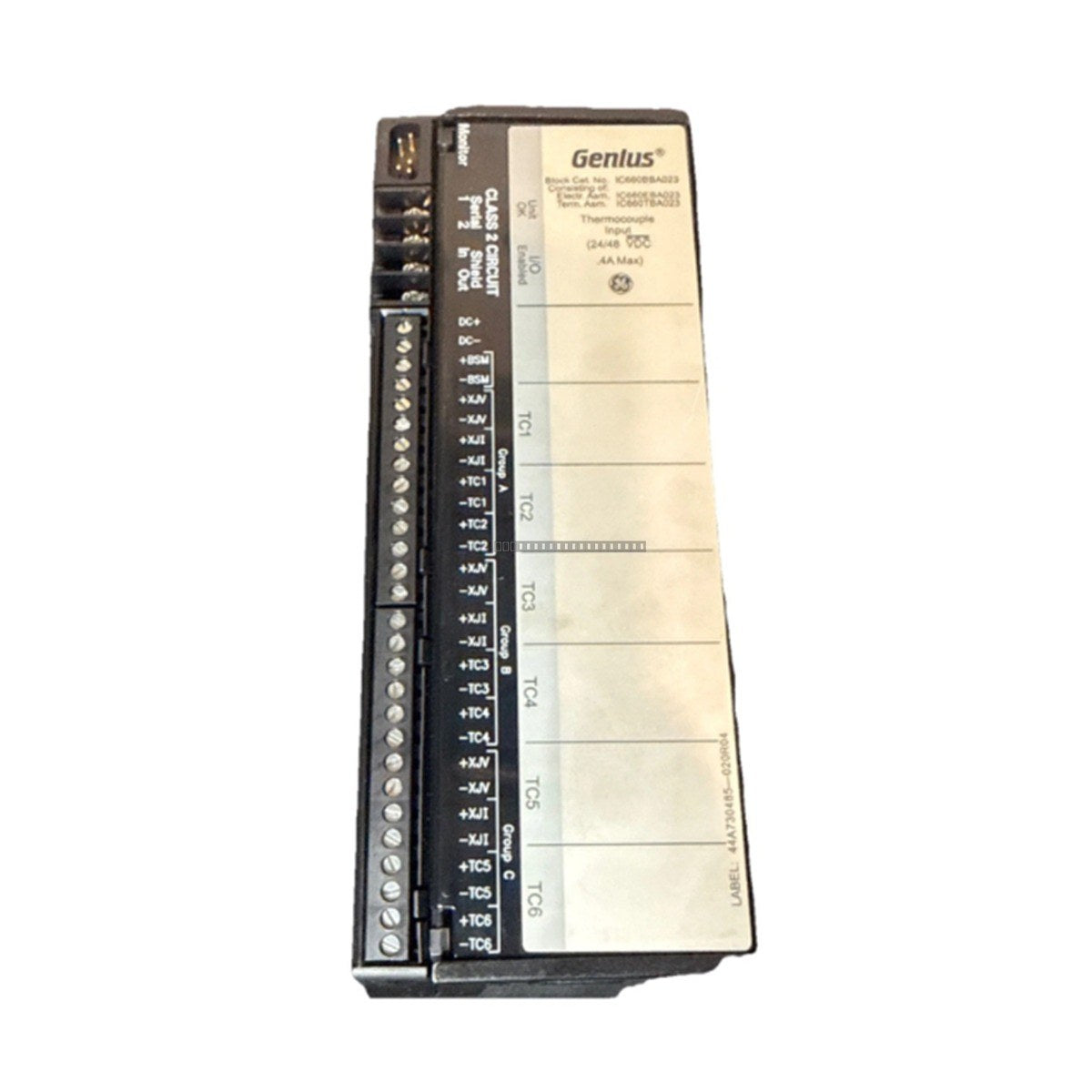

The General Electric IC660TBA023 is a terminal assembly designed for the Genius I/O system. This component serves as a critical interface for field wiring, facilitating reliable signal distribution within the Genius I/O architecture. It is engineered to support 24/48 VDC operations and provides robust electrical isolation to ensure signal integrity in industrial environments.

Features

• Designed for integration with the GE Genius I/O product series
• Supports 24/48 VDC power supply configurations
• Provides 1500 Volts of electrical isolation for system protection
• Compact design optimized for standard industrial panel mounting
• Engineered for consistent performance in demanding control environments

Technical Specifications

Installation Guidelines

• Ensure the control system is powered down before installing or removing the terminal assembly to prevent electrical shock or equipment damage.
• Mount the unit in a clean, dry environment within an industrial enclosure to protect against dust, moisture, and extreme temperatures.
• Maintain proper clearance around the module to allow for adequate heat dissipation and airflow.
• Use appropriate wire gauges and ensure all terminal connections are tightened to the manufacturer's specified torque to prevent loose connections or signal degradation.
• Follow standard ESD (Electrostatic Discharge) handling procedures when touching internal components or connectors.
• Route signal cables away from high-voltage lines and sources of electromagnetic interference (EMI) to maintain signal accuracy.

FAQ

What is the primary function of the IC660TBA023?
The IC660TBA023 is a terminal assembly module used within the GE Genius I/O system to facilitate field wiring connections.

What is the operating temperature range for this module?
This module is designed to operate within a temperature range of 0 to 60 degC.

Is this module compatible with other Genius I/O components?
Yes, the IC660TBA023 is specifically designed for the Genius I/O series. Please verify your specific system configuration and backplane compatibility before installation.
