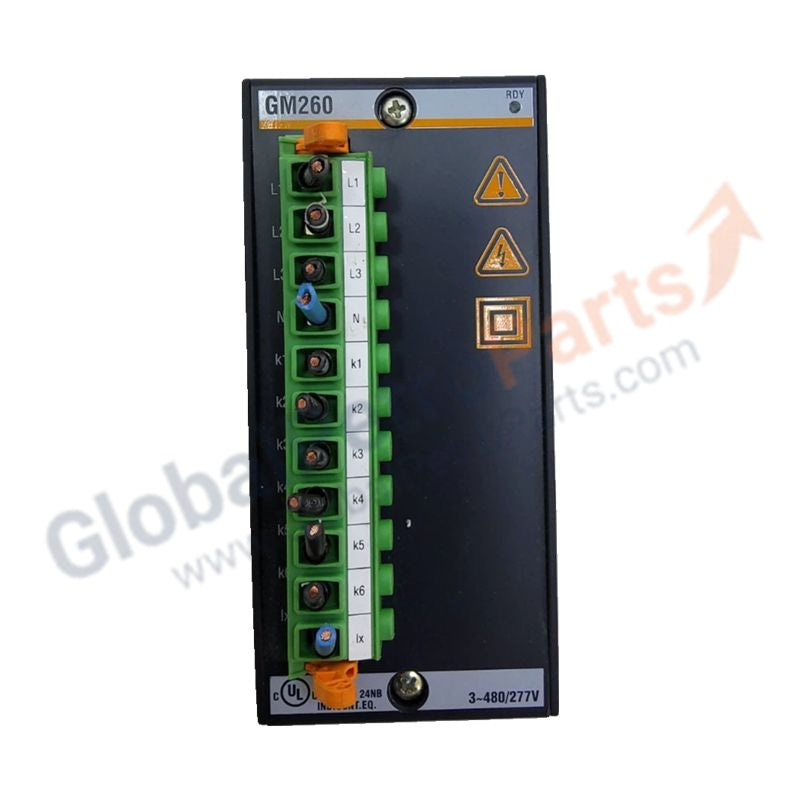

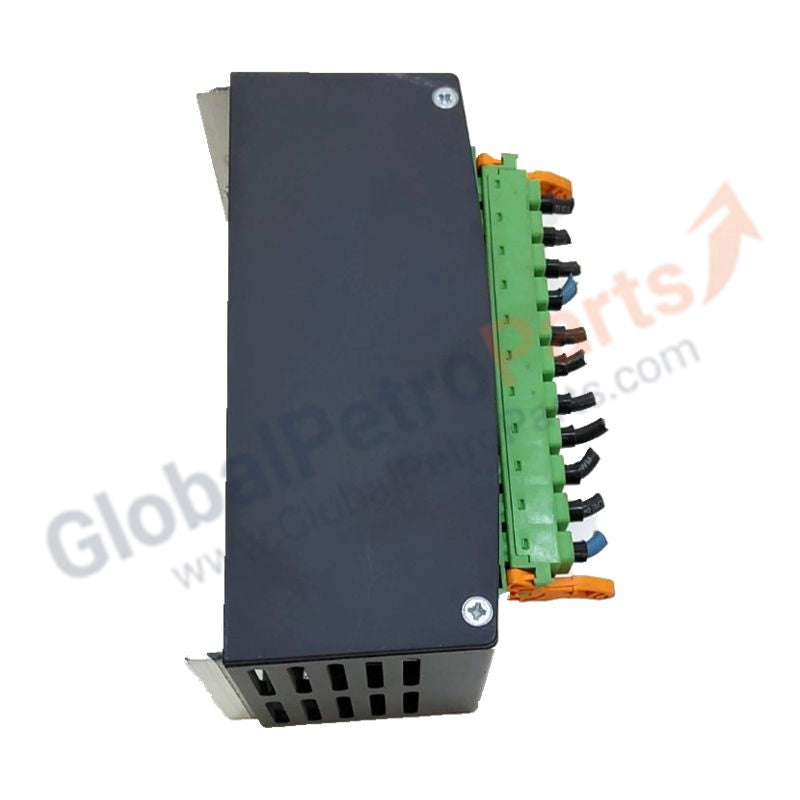

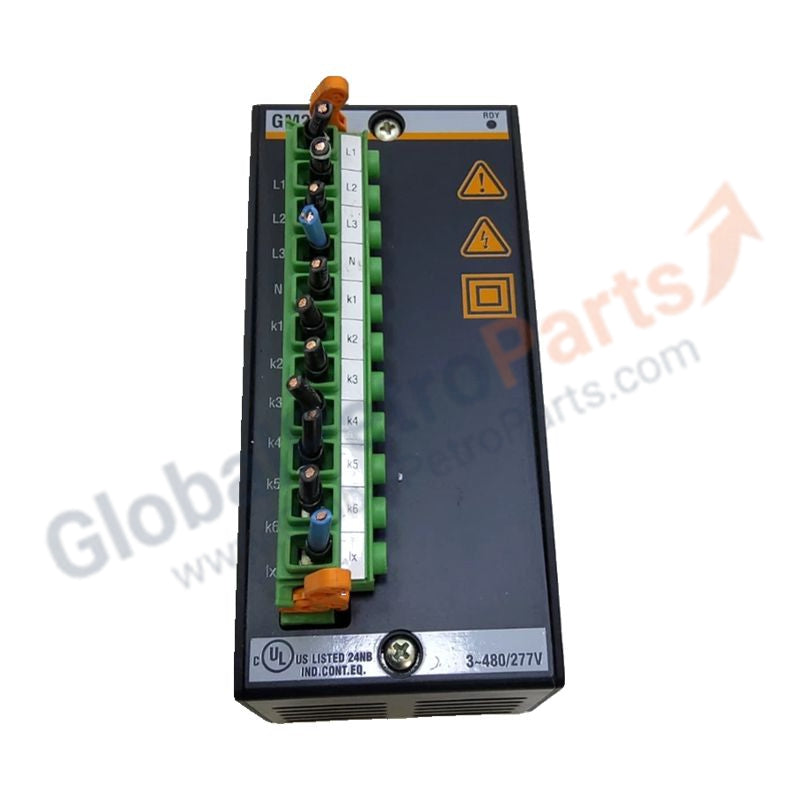

GM260 Bachmann Grid Measurement Module
  • GM260 Bachmann Grid Measurement Module
  • GM260 Bachmann Grid Measurement Module
  • GM260 Bachmann Grid Measurement Module
GM260 Bachmann Grid Measurement Module

Bachmann

GM260 Bachmann Grid Measurement Module

In stock

  • Manufacturer: Bachmann

  • Product No.: GM260

  • Product Type: Grid Measurement Module

  • Product Origin: Germany

  • Payment:T/T, Western Union

  • Weight: 190g

  • Shipping port: Xiamen

  • Warranty: 12 months

Special offer ends!
00 :
00 :
00

Product Description

The GM260 is a precision grid monitoring module for the Bachmann M1 system, capable of simultaneously measuring two three-phase branches via a shared voltage reference. It delivers real-time True RMS measurements, harmonic analysis up to the 40th order, and bidirectional energy tracking, making it ideal for power plants, industrial facilities, and renewable energy systems.

Technical Specifications

Parameter Specification
Voltage Channels 3 Phase-to-Phase (up to 625 Vrms / 480 VL-L)
Voltage Accuracy ±0.1 %
Current Channels 6 (0.01 to 1.2 Arms)
Current Accuracy ±0.3 %
Frequency Range 45–65 Hz (±0.010 Hz)
Power Parameters Active, Reactive, Apparent (P, Q, S) per phase
Power Factor & Phase cos φ and phase angle
Energy Counters 2x 4-Quadrant, 1 Wh resolution
Harmonic Monitoring THD + individual harmonics up to 40th
Dimensions 119 × 55 × 66 mm
Net Weight 0.19 kg
Mounting Standard M1 backplane

Industrial Applications

  • Wind turbine and renewable energy control

  • Smart grid substations and energy management systems

  • High-density industrial metering arrays

Product FAQ

Q: Can the GM260 measure power in both directions?
A: Yes, its 4-quadrant energy counters allow accurate measurement of both consumed and generated power.

Q: Does this module support harmonic distortion analysis?
A: Yes, it performs True RMS measurements including harmonics up to the 40th order.
