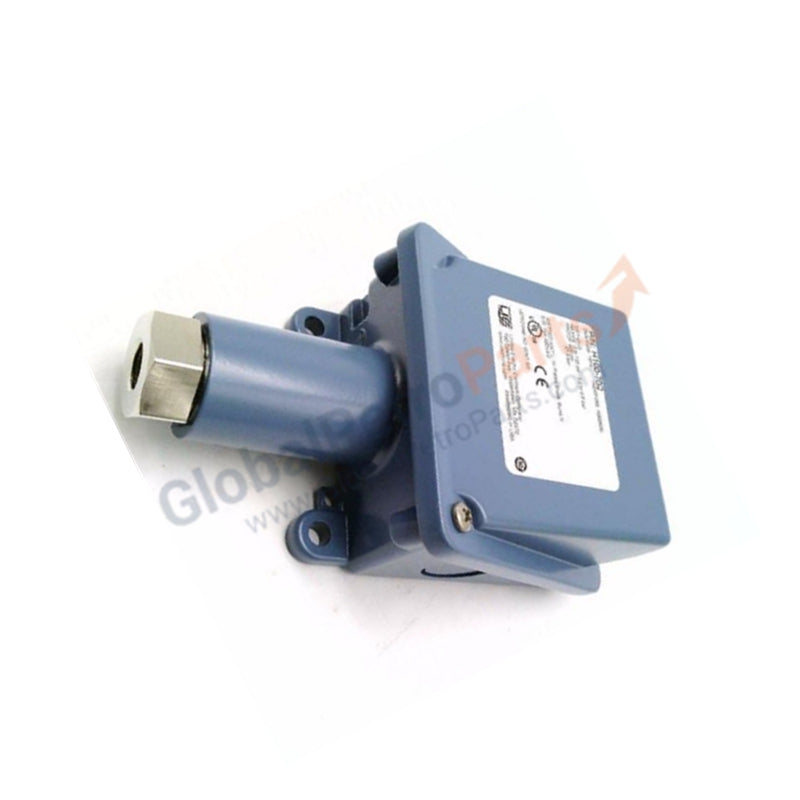

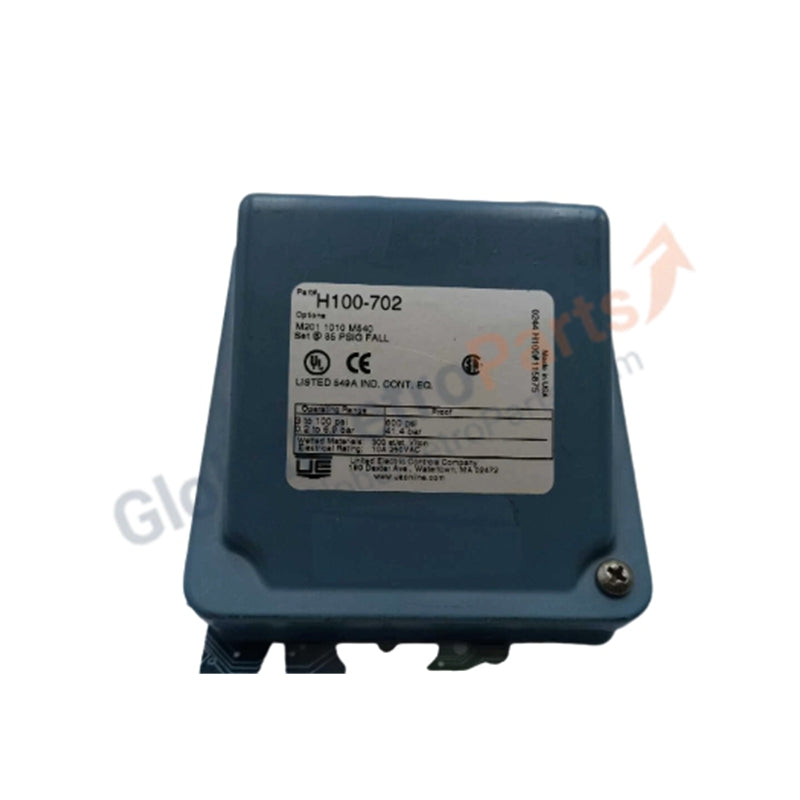

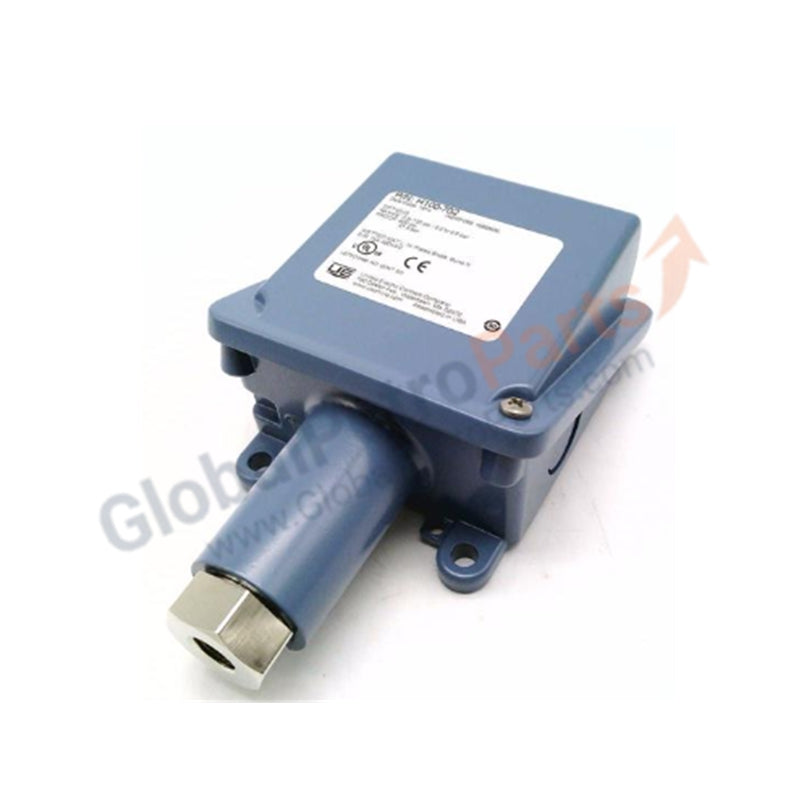

H100-702 | Allen-Bradley Pressure Switch 3–100 PSI

Product Description

The H100-702 from Allen-Bradley is a precision-engineered pressure switch designed for reliable monitoring of fluids and gases in industrial applications. It provides a measurement range of 3–100 PSI, with a maximum pressure capacity of 500 PSI. The unit features a 1/4" NPTF threaded connection for secure installation and tamper-resistant setpoint locking to maintain calibration integrity. Specially designed ultra-low pressure models (WC series) allow use in sensitive control environments.

• Model: H100-702

• Product Type: Pressure Switch

• Pressure Range: 3–100 PSI

• Maximum Pressure: 500 PSI

• Connection: 1/4" NPTF

• Setpoint Lock: Tamper-Resistant

• Special Features: Ultra-low pressure capability (WC models)

Applications

Ideal for fluid and gas pressure monitoring in industrial systems, HVAC, process control, and other environments requiring precise pressure management.

FAQ

Q: What is the maximum pressure rating of the H100-702?
A: The switch can handle up to 500 PSI.

Q: Does it offer setpoint locking?
A: Yes, it includes a tamper-resistant setpoint lock.

Q: What type of connection does it use?
A: It uses a standard 1/4" NPTF threaded connection.
