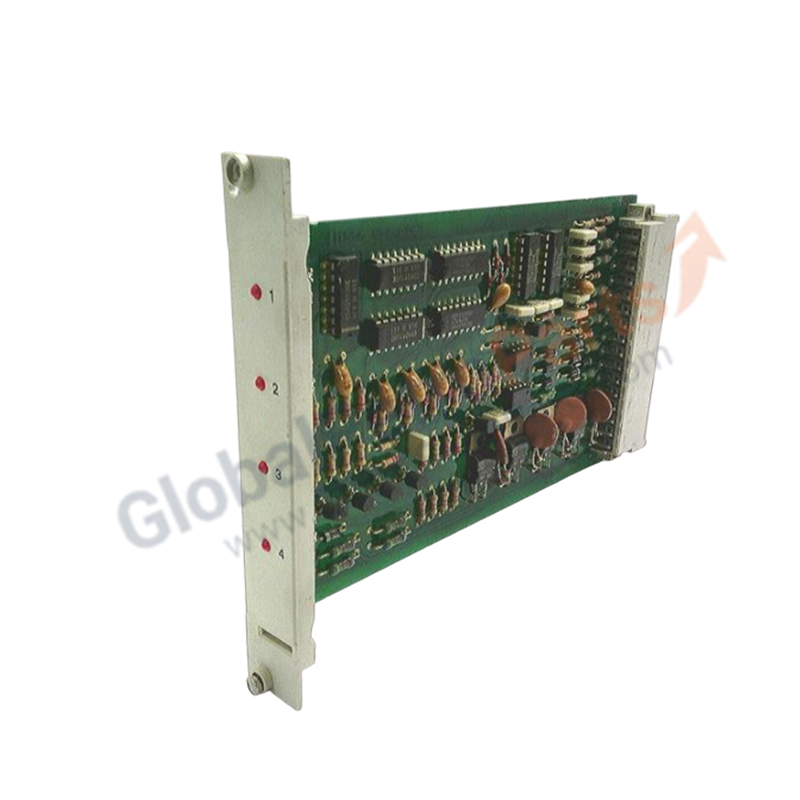

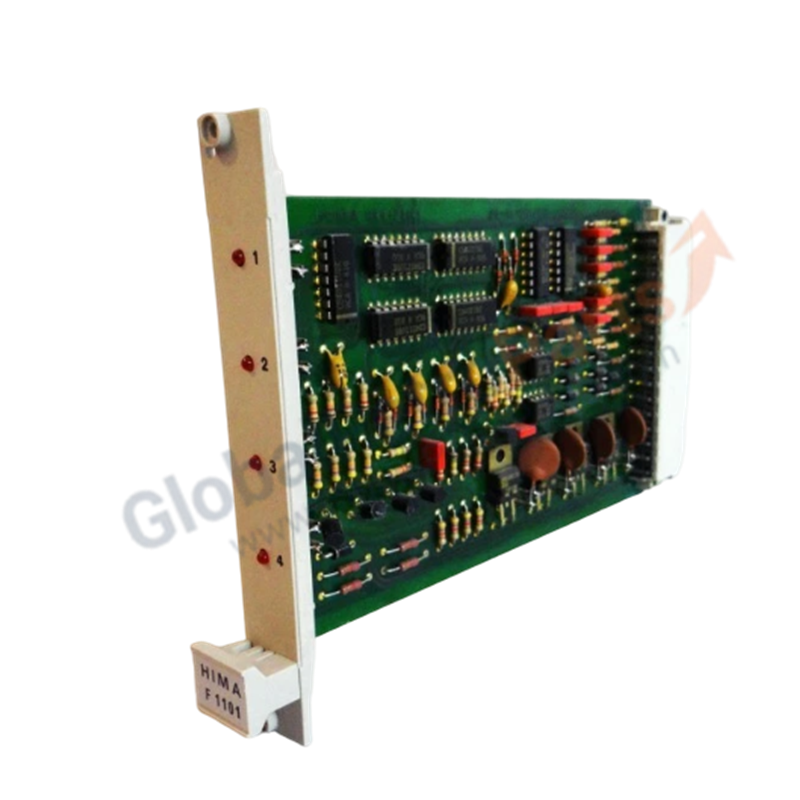

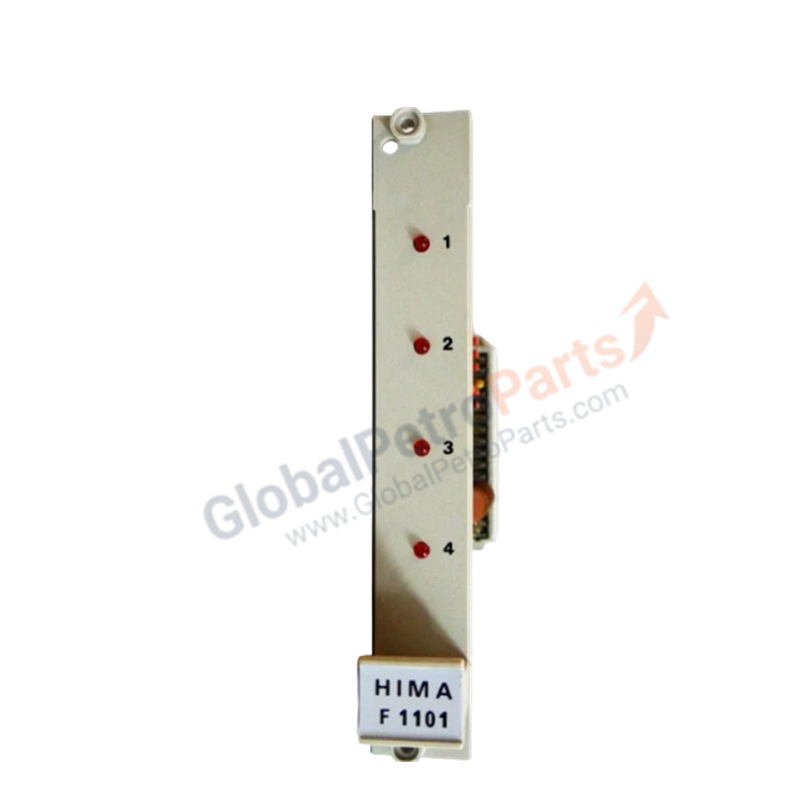

HIMA F 1101 HIMatrix F60 SIL 3 Switching Amplifier

Product Overview

The HIMA F 1101 functions as a high-integrity switching amplifier within the HIMatrix F60 ecosystem. Engineered specifically for the rigorous demands of the process industry, this modular device provides the critical interface needed to maintain SIL 3 safety loops. It bridges the gap between field-level signaling and logic processing with uncompromising precision, ensuring the safety of both personnel and high-value industrial assets.

Condition: 100% Brand New and Original Factory Sealed.

Technical Specifications

Engineering Advantages

• Rapid Fault Mitigation: The F 1101 achieves a response time of less than 2ms. This ultra-fast switching capability allows the system to isolate faults almost instantaneously, preventing minor electrical fluctuations from escalating into catastrophic system failures.

• Extreme Environment Resilience: With an IP67-rated housing and a wide operating temperature range (-20°C to +60°C), this module thrives in harsh process environments. It resists dust ingress and water immersion, eliminating the need for bulky specialized protective enclosures in many field applications.

• Flexible Voltage Integration: The wide input range (24 VDC to 230 VAC) simplifies hardware requirements. Engineers can utilize the same module to handle diverse field signals, reducing spare parts inventory and simplifying circuit design.

• High-Density Safety: The 4-channel modular design maximizes cabinet space. You can implement multiple safety loops within a compact footprint without sacrificing the galvanic isolation required for SIL 3 compliance.

FAQs

• Does the F 1101 support SIL 3 certification in standalone configurations?

  The F 1101 meets SIL 3 requirements when integrated into the HIMatrix F60 system according to IEC 61508 standards. Always verify the entire safety loop calculation to ensure end-to-end compliance.

• Can I use this module for high-voltage AC inputs?

  Yes. The F 1101 handles input signals up to 230 VAC, making it highly versatile for interfacing with various industrial sensors and switches.

• What are the mounting requirements for maintaining the IP67 rating?

  To maintain the IP67 integrity, you must use compatible HIMA F-series base plates and ensure all cable glands or connectors meet or exceed the IP67 standard.

• Is this unit compatible with older HIMA safety frameworks?

  The F 1101 is specifically designed for the HIMatrix F60 series. For legacy system migrations, please consult the technical wiring diagram to ensure bus compatibility.
