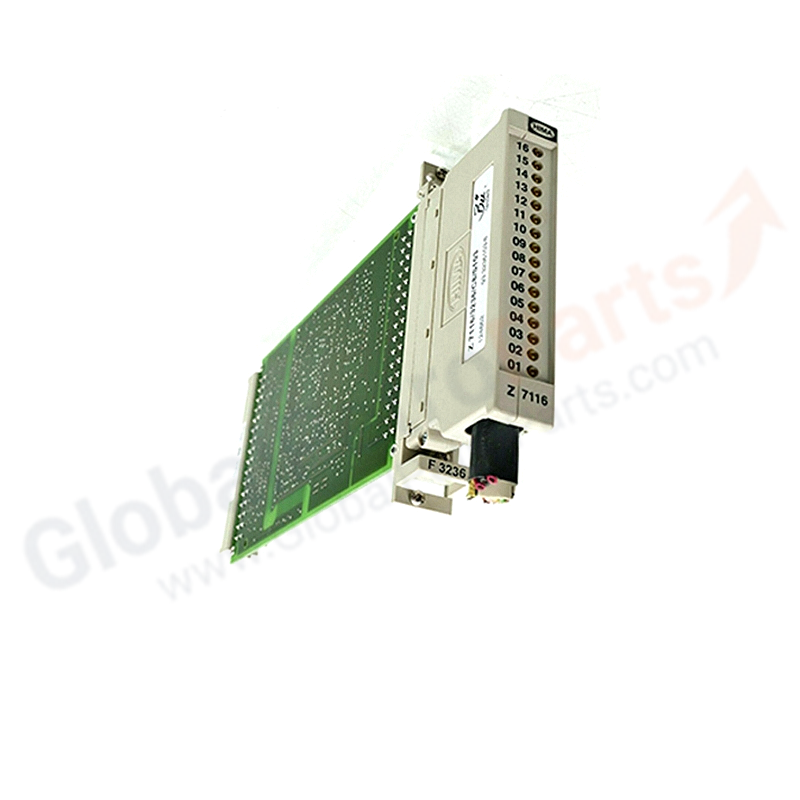

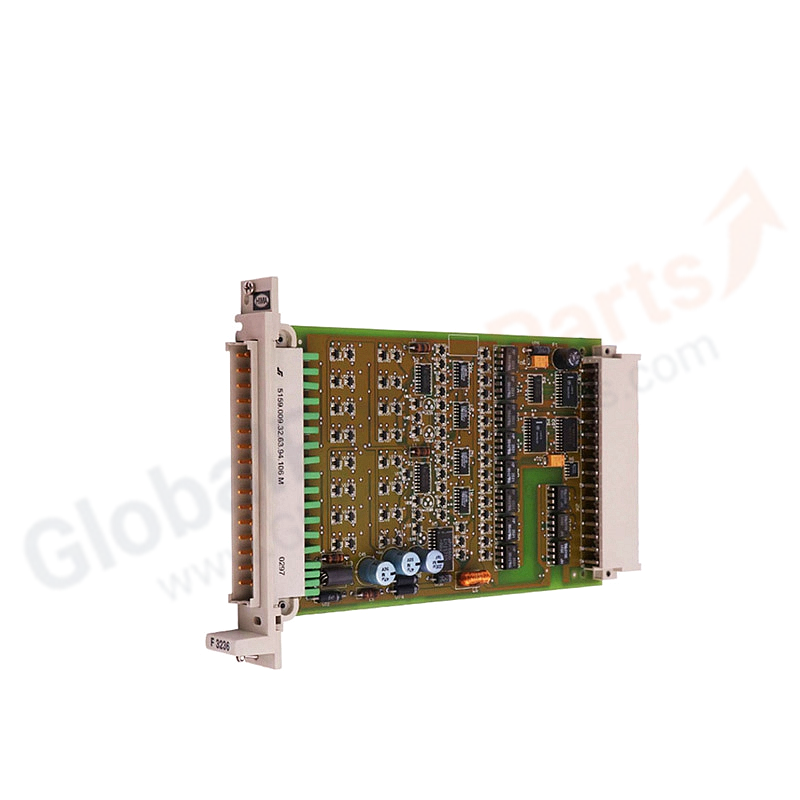

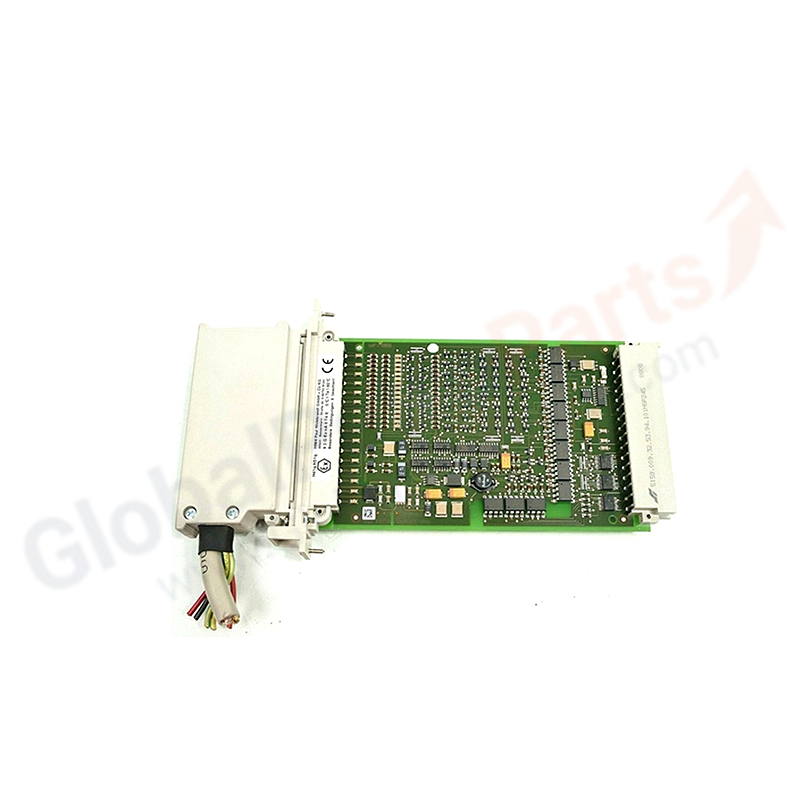

HIMA F 3236 98 4323602 Digital Input Module

Overview

The HIMA F 3236 is a 16-Fold Digital Input Module for safety-related applications. It monitors discrete input signals from field devices in HIMA HIQuad and HIMax safety systems.

Technical Specifications

• Manufacturer: HIMA
• Model: F 3236
• Type: 16-Fold Digital Input Module
• Channels: 16 digital inputs
• Input Voltage: 24 VDC
• Safety Certification: SIL 3 (IEC 61508)

Key Features

• 16-channel digital input for high-density signal monitoring
• Automatic self-testing during operation
• Short-circuit and wire-break detection per channel
• Walking 0 test for input circuit crosstalk verification

FAQ

Q: What types of sensors can connect to F 3236?
A: The module supports mechanical contacts and signal voltage sources with 24 VDC.

Installation Guidelines

1. Install the module into the HIQuad or HIMax system rack.
2. Connect field sensor wiring to the cable plug terminals.
3. Apply the de-energized-to-trip principle for external wiring.

Selection Tips

• Select F 3236 for 16-channel digital input monitoring in HIMA safety systems.
• Verify sensor type compatibility (mechanical contact vs. powered signal).
