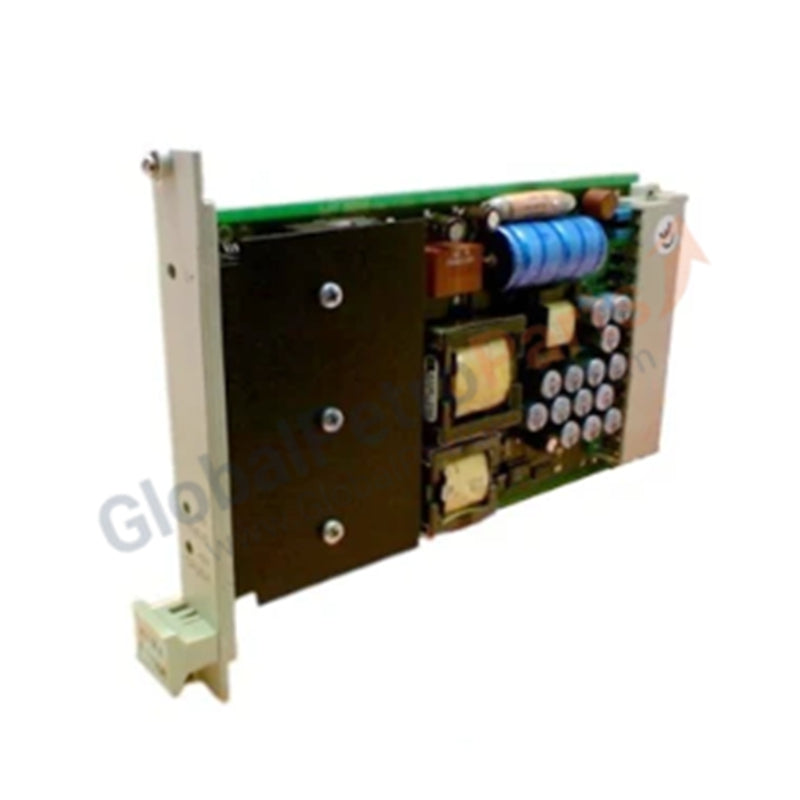

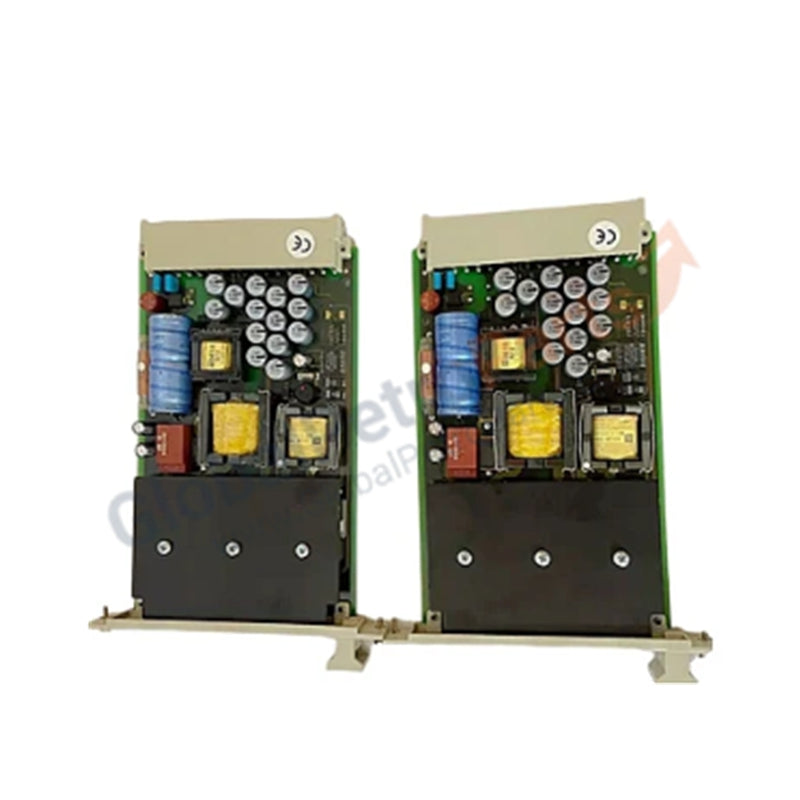

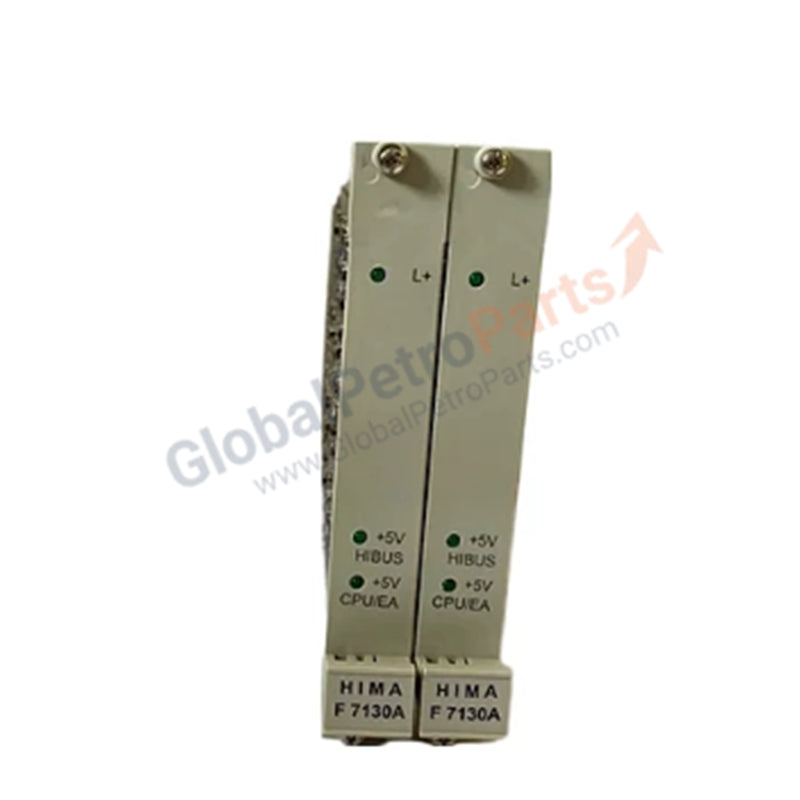

HIMA F 7130 HIMatrix Power Distribution Module (PDM)

Product Overview

The HIMA F 7130 serves as the central Power Distribution Module (PDM) within the HIMatrix safety controller ecosystem. This critical component manages the energization of internal system modules and precisely distributes power to various field devices. Engineered for high-integrity environments, the F 7130 provides the fault-tolerant electrical foundation required for emergency shutdown (ESD) and process control applications.

Condition: 100% Brand New and Original Factory Sealed.

Technical Specifications

The F 7130 maintains stable power delivery across a wide range of industrial electrical conditions.

• Input Voltage: 18 to 36 VDC

• Output Voltage: 24 VDC

• Output Current: 6.3 A

• Number of Outputs: 4

• Isolation Voltage: 2 kV

• Degree of Protection: IP20

• Operating Temperature: -20 to +70 °C

• Storage Temperature: -40 to +85 °C

• Humidity: 0 to 95% RH (non-condensing)

• Vibration Resistance: 0.5 g peak-to-peak, 10 to 500 Hz

• Shock Resistance: 5 g, 11 ms half-sine

Engineering Advantages

• Superior Electrical Isolation: The F 7130 provides a 2 kV isolation voltage, which shields the central safety processor from field-side electrical surges and ground loops. This protection prevents catastrophic hardware failure and maintains signal integrity in electrically noisy environments.

• Extreme Thermal Resilience: With an operating temperature range of -20 to +70 °C, this module thrives in unconditioned remote instrument enclosures and harsh process areas. It ensures consistent power distribution despite the radical temperature fluctuations common in upstream oil and gas sites.

• Multi-Channel Load Management: The module features four independent outputs to streamline field wiring. This allows engineers to segment power distribution, ensuring that a localized fault in one field segment does not compromise the power integrity of the entire safety rack.

• Ruggedized Mechanical Build: Designed to withstand 5 g shock and continuous vibration, the F 7130 remains stable in heavy-duty machinery applications. This mechanical durability minimizes the risk of intermittent power loss caused by physical stress in high-vibration industrial zones.

• Compact Cabinet Integration: The modular design allows for effortless mounting within standard control cabinets. This high-density footprint solves the problem of limited rail space, enabling the expansion of safety systems without requiring larger enclosures.

FAQs

• Does the F 7130 handle input voltage fluctuations? Yes. The F 7130 accepts a wide input range from 18 to 36 VDC. This flexibility allows the module to maintain a steady 24 VDC output even when the primary battery or power supply experiences significant voltage drops or surges.

• Can I use the F 7130 to power non-HIMA field devices? The F 7130 distributes 24 VDC at a total of 6.3 A. While specifically designed for the HIMatrix system, it effectively powers any standard 24V industrial field device, provided the total current draw remains within the 6.3 A limit.

• What is the benefit of the IP20 protection rating? The IP20 rating ensures protection against solid objects larger than 12mm, making it safe for handling during installation. It requires installation within a control cabinet or enclosure to protect against dust and moisture.

• Is the F 7130 compatible with high-humidity environments? Yes. The module operates in humidity levels up to 95% RH. However, ensure the cabinet environment remains non-condensing to prevent electrical tracking and corrosion of the internal logic components.
