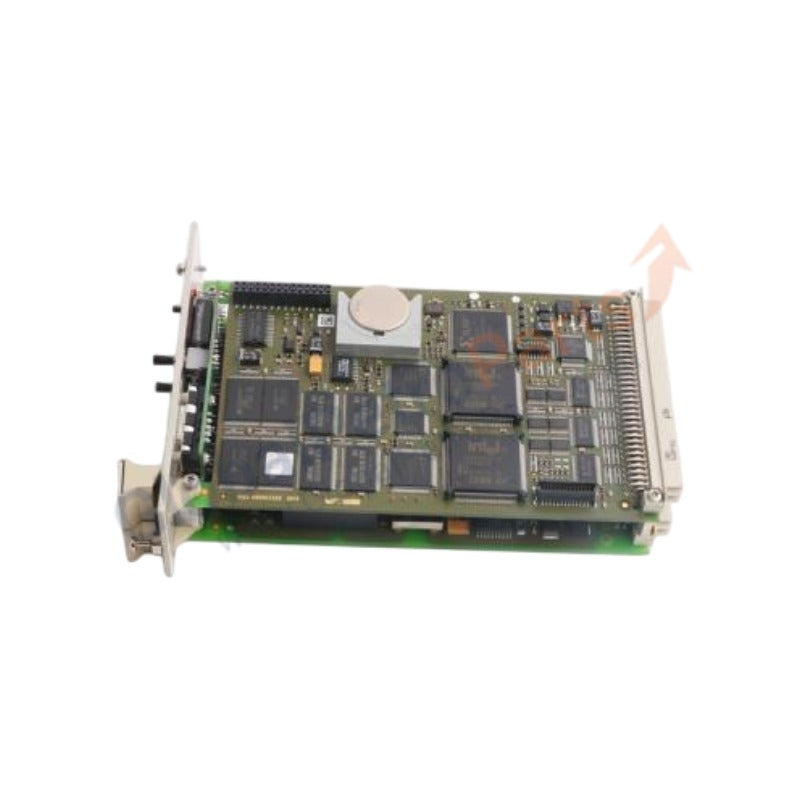

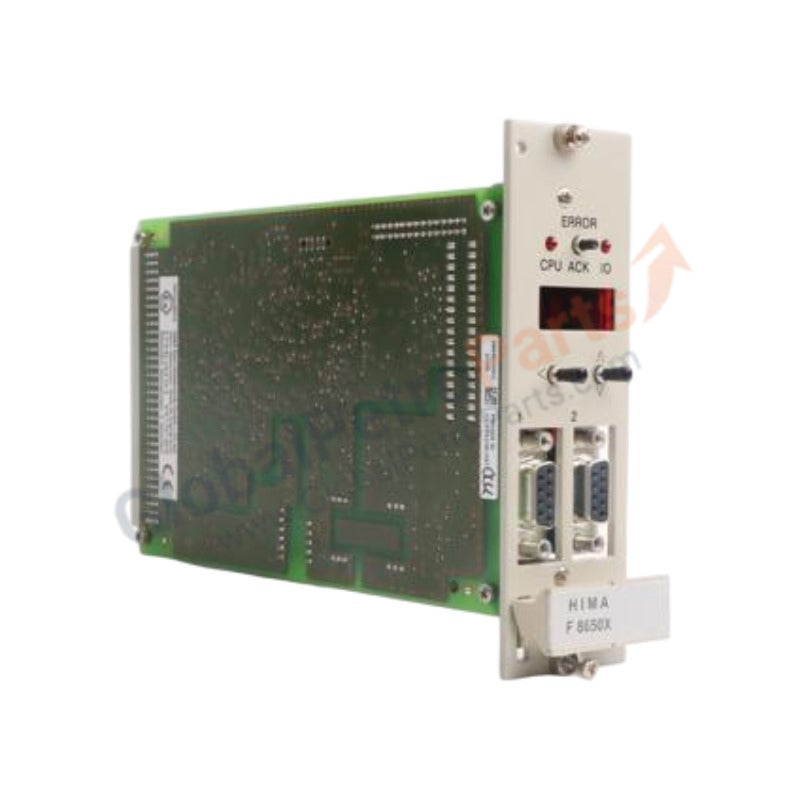

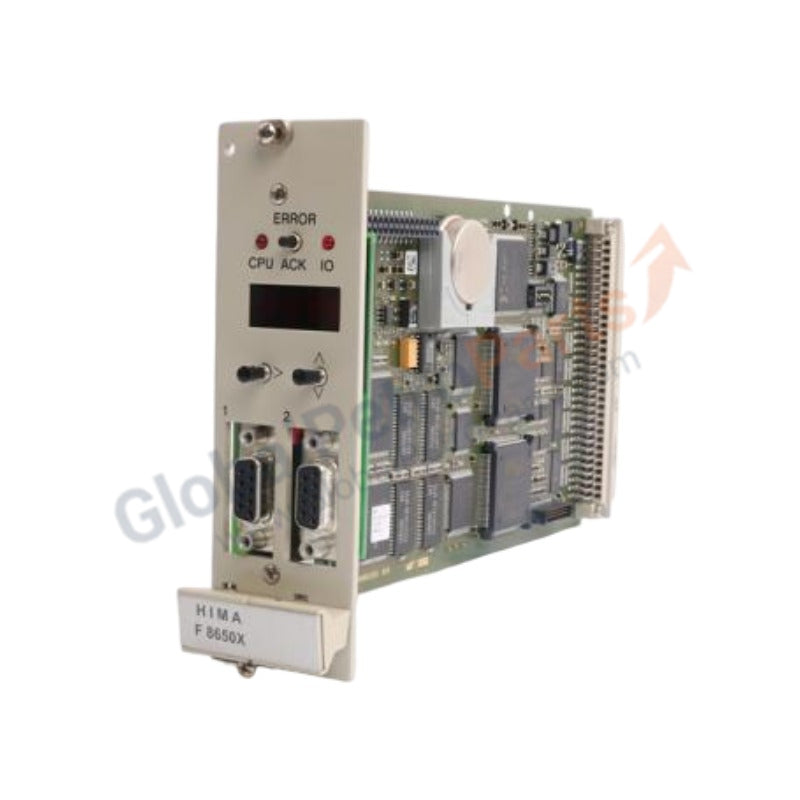

HIMA F8650 F 8650 Central Processor Module

Product Overview

The HIMA F 8650 (F8650) functions as the flagship central processing unit within the HIMax safety platform. This high-capacity module executes the entire safety program for large-scale, complex industrial facilities, including Emergency Shutdown (ESD) systems and Burner Management Systems (BMS). The F 8650 manages high-speed data processing across thousands of I/O points with absolute hardware determinism. By utilizing this 100% Brand New original processor, engineers secure a SIL 3 certified environment that supports "Non-Stop" operation, allowing for system maintenance and hardware changes without interrupting the critical safety function or plant production.

Technical Specifications

The F 8650 integrates advanced multi-core safety technology and high-speed safeethernet communication to ensure maximum system integrity:

• Model: F 8650 / F8650

• Brand: HIMA

• Series: HIMax

• Condition: 100% Brand New Original

• Safety Rating: SIL 3 (IEC 61508), PL e (EN ISO 13849-1)

• Communication: Integrated safeethernet (100 Mbit/s Full Duplex)

• Memory: Non-volatile Flash for safety logic and high-speed ECC RAM

• Processor Clock: Optimized for millisecond scan times

• Operating Voltage: 24 VDC (Nominal)

• Power Consumption: 22 W (Typical)

• Operating Temperature: 0 to 60 °C

• Diagnostic Coverage: > 99% (Continuous internal hardware monitoring)

• Clock Synchronization: Supports SNTP and internal high-precision oscillators

Engineering Advantages

The HIMA F 8650 delivers technical solutions for the most demanding distributed safety networks:

• Bumpless Online Expansion: The F 8650 architecture supports "Reload" functionality. This feature enables engineers to modify safety logic or add new I/O modules during active operation, eliminating the massive revenue losses associated with forced plant shutdowns.

• Hardware-Based Cybersecurity: HIMA implements a "locked" proprietary operating system within the F 8650. This prevents unauthorized firmware tampering and protects the safety-critical logic from external network-based threats.

• Superior Fault forensics: The module captures and stores high-resolution Sequence-of-Event (SOE) logs and diagnostic data locally. This allows technical teams to identify the root cause of a process trip instantly, significantly reducing recovery time after an event.

• Vibration-Resistant Interconnects: Specialized backplane connectors and a robust mechanical locking system protect the F 8650 from signal degradation in environments with extreme mechanical resonance, such as turbine halls or offshore platforms.

FAQs

• Can I run the F 8650 in a redundant configuration?Yes. The HIMax system supports redundant F 8650 configurations. Both processors run in parallel; if the active CPU detects an internal fault, the backup module assumes control instantly without any disruption to the safety loop.

• Does the F 8650 require an external SD card?The F 8650 stores the primary safety program in its internal non-volatile memory. However, we recommend using a HIMA-approved industrial SD card to facilitate quick hardware swaps and local data backups.

• How does the F 8650 communicate with remote I/O?The module utilizes safeethernet—a proprietary, SIL 3 certified Ethernet protocol—to communicate with remote HIMax racks, ensuring timing synchronization and signal integrity across the entire facility.

• Why is buying a "Brand New" F 8650 essential?Safety processors utilize high-density semiconductors that are sensitive to thermal aging. A used or refurbished CPU may harbor latent failures in its logic gates or internal capacitors. Only 100% Brand New units guarantee the full 20-year safety lifecycle required for hazardous industrial processes.
