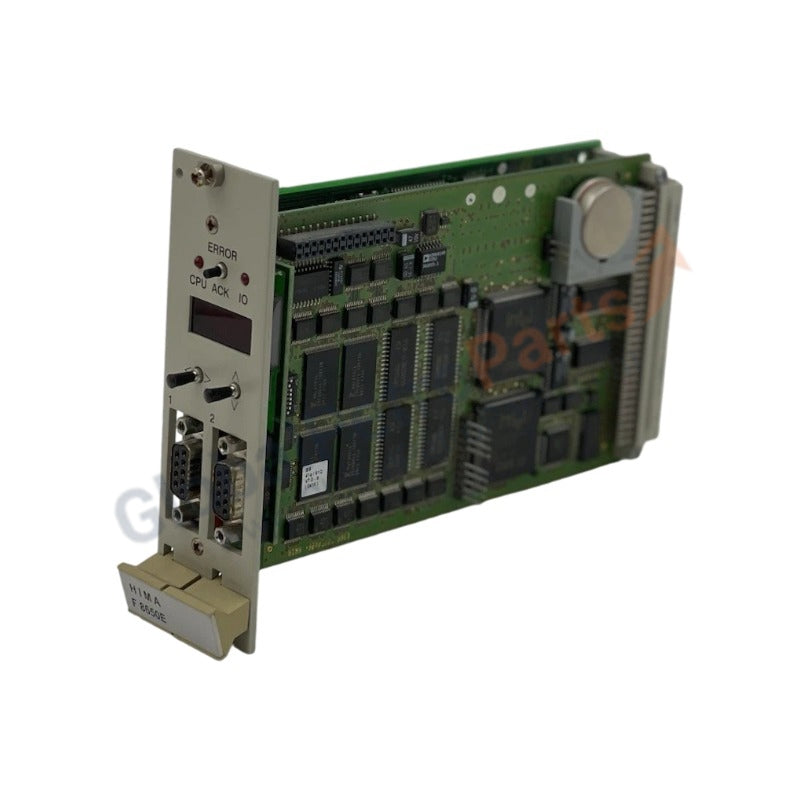

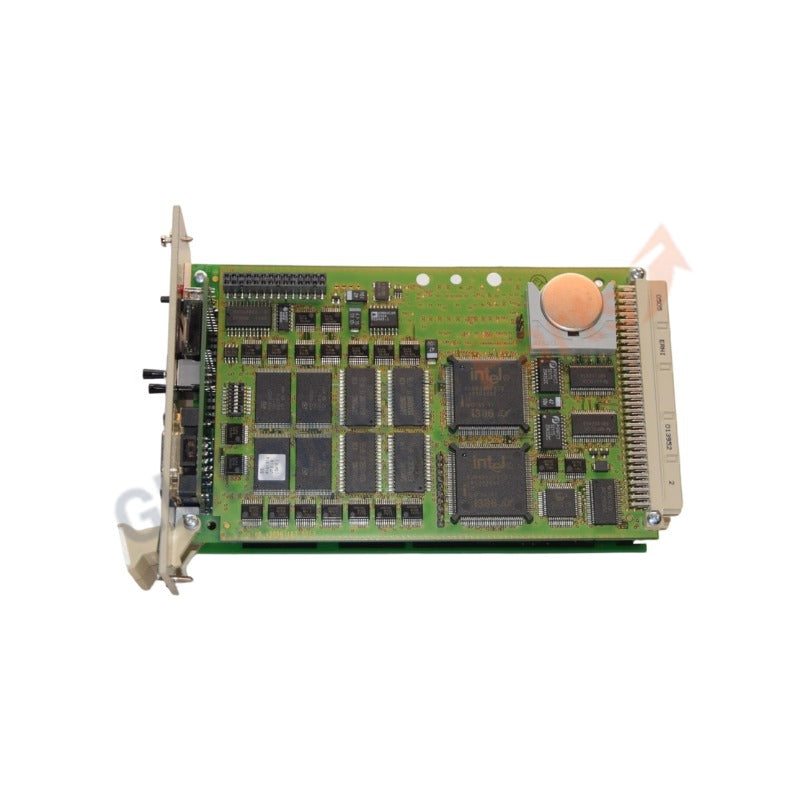

HIMA F8650E F 8650E Central Processor Module

Product Overview

The HIMA F 8650E (F8650E) serves as the high-capacity central processing unit for the HIMax safety platform, specifically optimized for large-scale distributed safety architectures. This module executes complex safety logic for critical applications including Emergency Shutdown (ESD), Fire and Gas (F&G) systems, and Burner Management Systems (BMS). The F 8650E (F8650E) manages time-critical processing tasks with absolute hardware determinism, ensuring that safety-critical reactions occur within millisecond windows. By integrating this 100% Brand New original processor, engineers secure a SIL 3 certified control environment that facilitates "Non-Stop" operation, allowing for online logic modifications and hardware hot-swaps without interrupting the plant's protective functions.

Technical Specifications

The F 8650E incorporates multi-core safety chipsets and advanced diagnostic firmware to maintain total system integrity:

• Model: F 8650E / F8650E

• Brand: HIMA

• Series: HIMax

• Condition: 100% Brand New Original

• Safety Integrity Level: SIL 3 (IEC 61508), PL e (EN ISO 13849-1)

• Communication: Integrated safeethernet (100 Mbit/s Full Duplex)

• Protocol Support: safeethernet, Modbus TCP, Profinet IO, TCP/UDP

• Memory: ECC-protected RAM and non-volatile Flash for safety programs

• Operating Voltage: 24 VDC (Nominal)

• Power Dissipation: 22 W (Typical)

• Operating Temperature: 0 to 60 °C

• Clock Synchronization: SNTP support for plant-wide time alignment

• Diagnostic Coverage: > 99% internal hardware self-monitoring

Engineering Advantages

The HIMA F 8650E provides targeted technical solutions for the most complex industrial safety challenges:

• Seamless Online Reloading: The F 8650E supports HIMA’s "Reload" feature, which allows technical teams to download modified safety logic or change system parameters during active production. This eliminates the financial losses associated with safety-related plant shutdowns.

• Built-in Cyber Resilience: The module utilizes a proprietary, locked operating system that lacks a traditional PC-based file structure. This design inherently resists malware attacks and unauthorized firmware manipulation, ensuring the safety program remains untampered.

• High-Resolution Diagnostic Logging: The CPU records detailed Sequence-of-Event (SOE) data and diagnostic codes internally. This allows maintenance teams to identify the exact millisecond and cause of a process trip, facilitating rapid root-cause analysis and system recovery.

• Electromagnetic Interference (EMI) Shielding: The F 8650E features a ruggedized metal housing and filtered backplane interfaces. This protects the processing cores from the high-frequency electrical noise generated by large variable frequency drives (VFDs) and heavy machinery in industrial environments.

FAQs

• Can the F 8650E operate in a redundant CPU architecture?Yes. The HIMax platform allows for redundant F 8650E configurations. In this setup, two processors run in parallel; if the primary CPU detects an internal fault, the backup assumes control instantly with no loss of signal or safety function.

• Does this module require an industrial SD card?While the F 8650E stores the safety program in internal non-volatile Flash, you can use a HIMA-approved industrial SD card to store backups or to transfer configurations to a new module without a PC.

• How does the "E" variant differ from the standard F 8650?The "E" variant typically offers specific hardware enhancements or communication optimizations for later-generation HIMax racks. Always verify the specific hardware revision against your system’s project configuration.

• Why is buying a Brand New F 8650E vital for safety?Safety processors utilize high-density semiconductors that are sensitive to thermal stress and aging. A used or refurbished CPU may fail to execute a critical trip command due to latent logic-gate fatigue. Only 100% Brand New units guarantee the full 20-year safety lifecycle.
