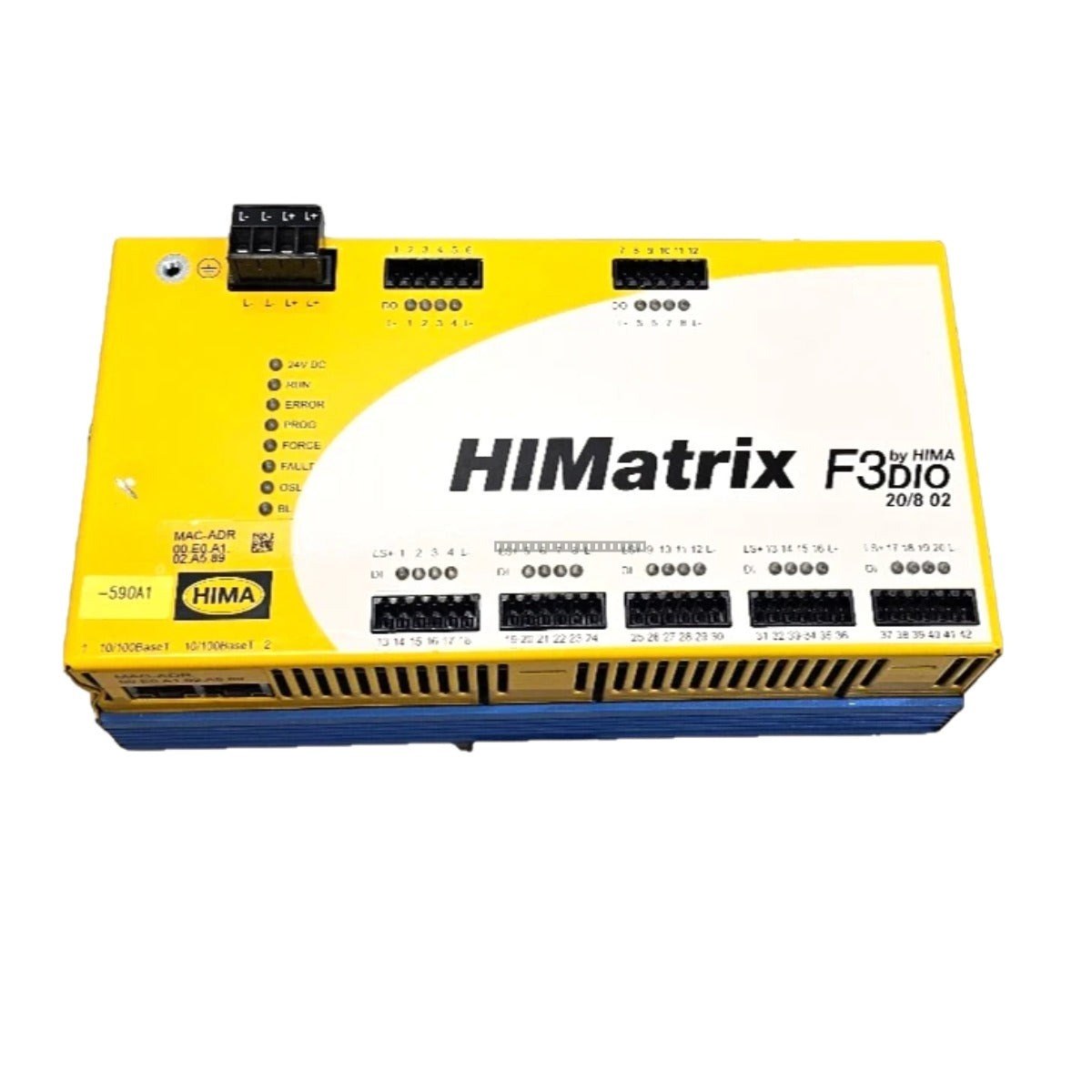

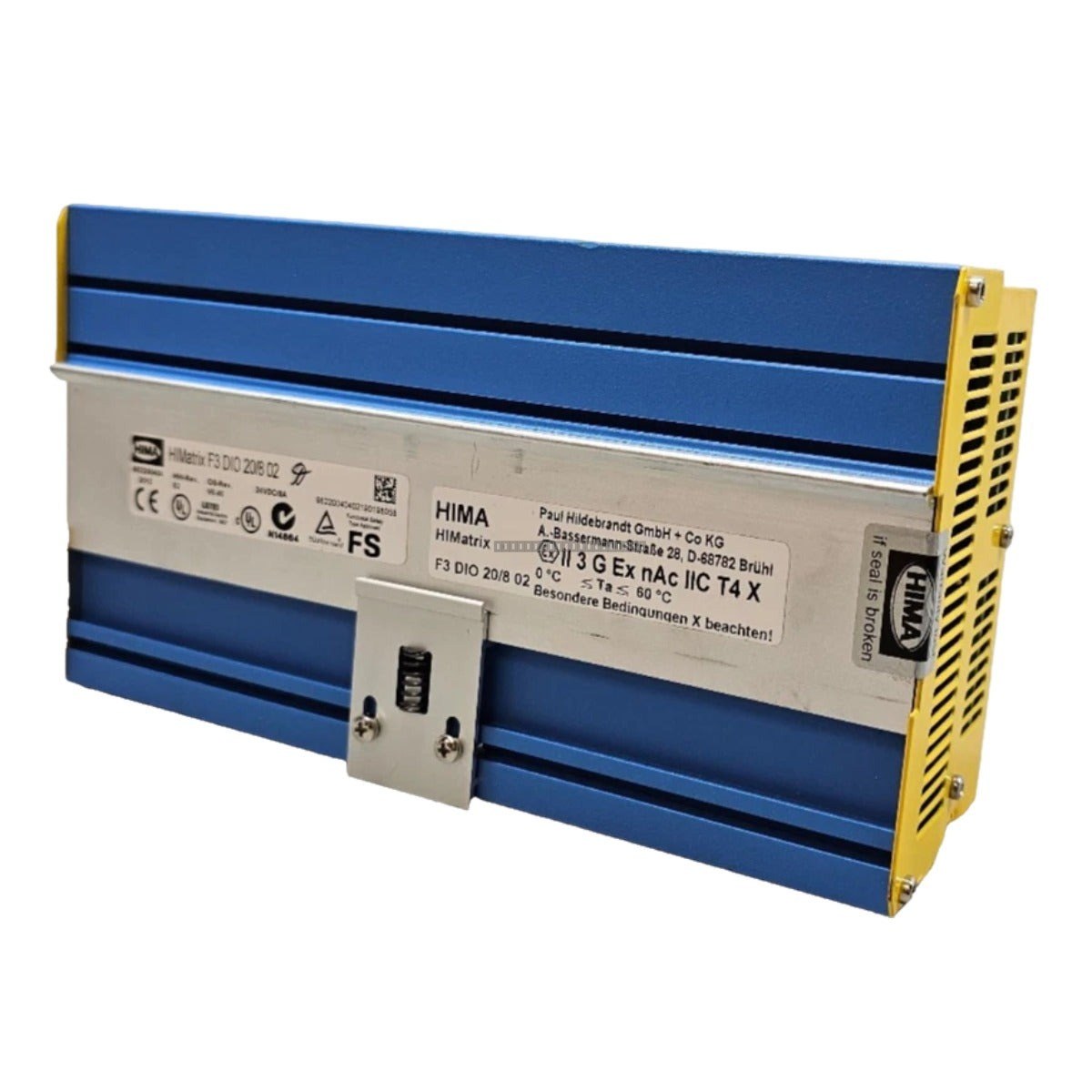

HIMA F3 DIO 20/8 02 Himatrix I/O Module

Description

The HIMA F3 DIO 20/8 02 is a high-performance remote I/O module designed for the Himatrix safety system. This module provides a robust interface for safety-critical applications, offering 20 digital inputs with configurable line control and 8 digital outputs. It features an integrated 2-port switch for 100 BASE-TX communication, supporting Safe Ethernet protocols to ensure reliable data transmission within industrial automation environments.

Features

• 20 Digital Inputs with configurable line monitoring capabilities.
• 8 Digital Outputs for control and signaling.

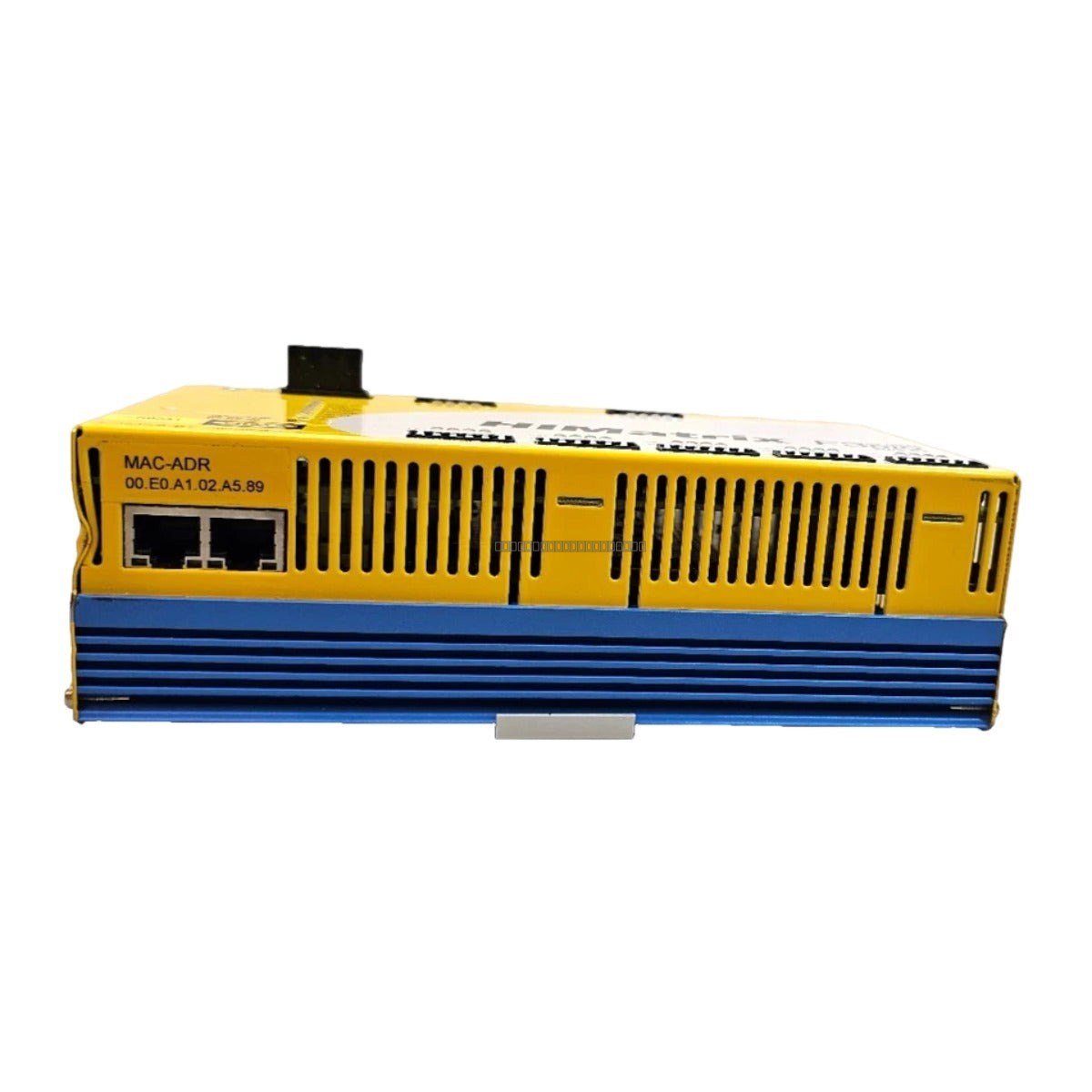

• Integrated 2-port switch for seamless network integration.
• Supports 100 BASE-TX Safe Ethernet communication.
• Designed for high-availability safety applications.

Technical Specifications

Installation Guidelines

• Ensure the module is installed in a clean, dry environment protected from excessive dust and moisture.
• Always power down the system before inserting or removing the I/O module to prevent electrical damage.
• Use appropriate shielded cabling for Safe Ethernet connections to minimize EMI interference.
• Ensure proper grounding of the module chassis to the system backplane or DIN-rail as per HIMA installation standards.
• Verify that the external fuse (10 A time-lag) is correctly installed to protect the module circuitry.
• Maintain adequate clearance around the module to allow for proper ventilation and cooling.

FAQ

What is the primary function of the F3 DIO 20/8 02?

This module serves as a remote I/O unit for the HIMA Himatrix system, providing digital input and output connectivity with integrated Safe Ethernet communication for safety-related control tasks.

Does this module require a backup battery?

No, the F3 DIO 20/8 02 does not utilize a back-up battery.

Is this module compatible with standard Ethernet?

The module is designed for Safe Ethernet communication via its integrated 2-port switch (100 BASE-TX). Ensure your network infrastructure is configured to support HIMA safety communication protocols.
