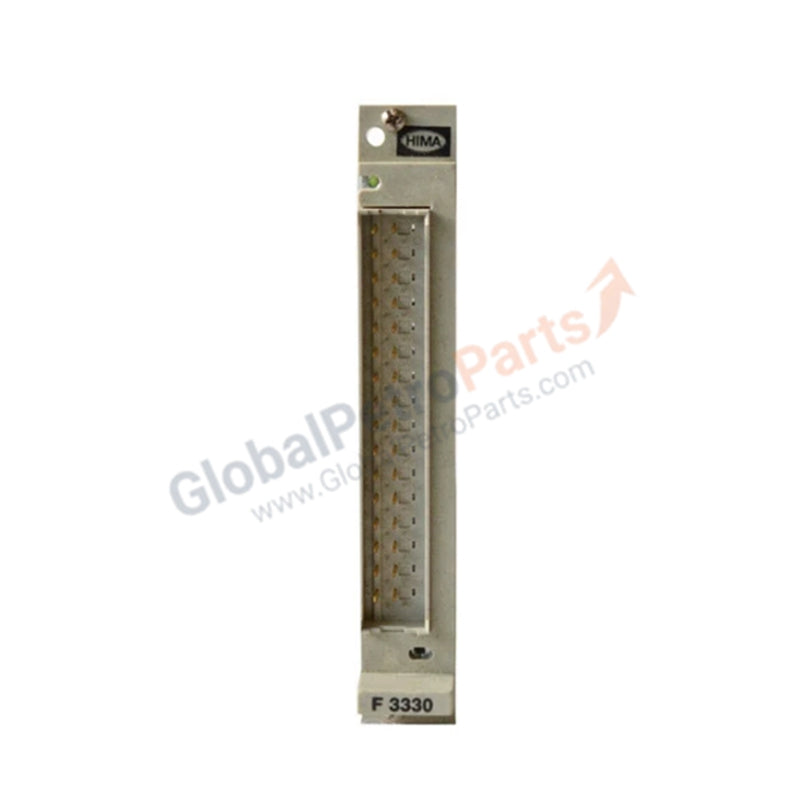

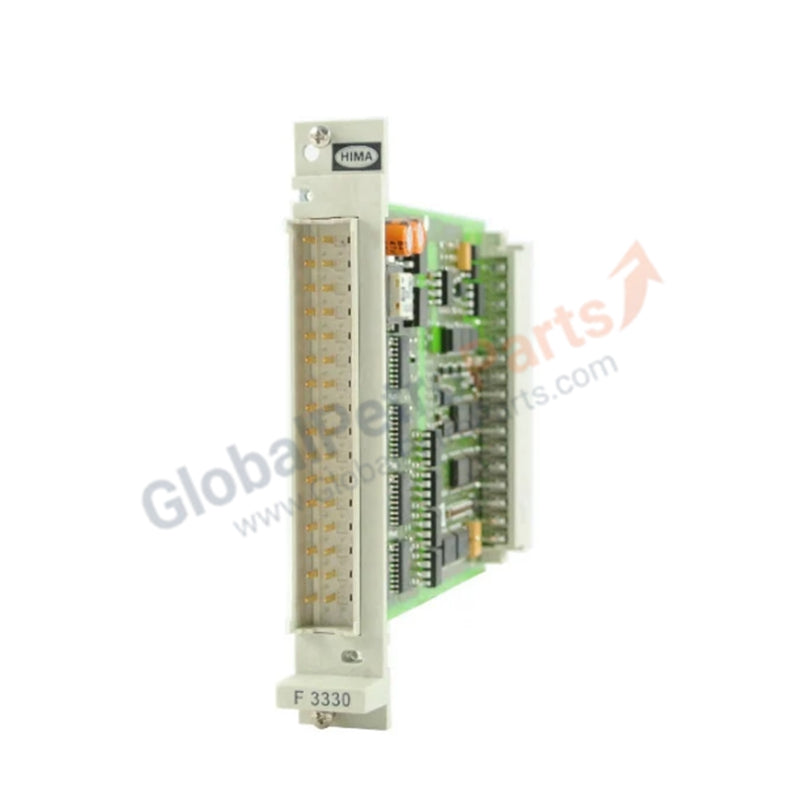

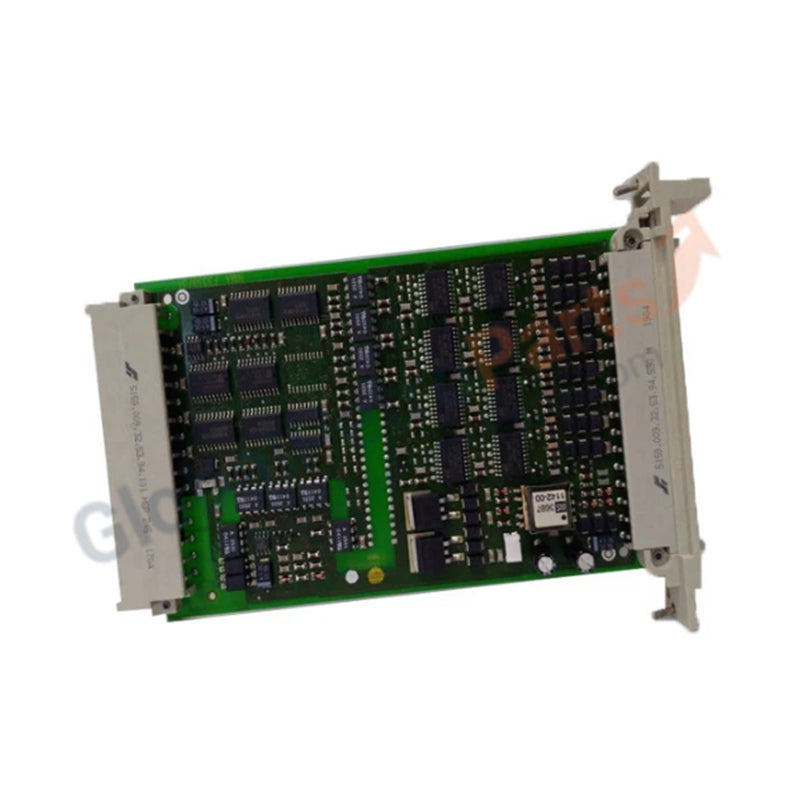

HIMatrix | HIMA F 3330 | 8-Channel Digital Output Module

Product Overview

The HIMA F 3330 serves as a specialized digital output interface within the HIMatrix safety and control environment. This module controls 8 independent output channels, providing the necessary switching logic for actuators, solenoid valves, and signaling devices in process automation. Although the original manufacturer has discontinued production, we provide 100% Brand New, original factory units to maintain existing safety systems and avoid the high costs of complete system overhauls.

Condition: 100% Brand New and Original Factory Sealed.

Technical Specifications

The F 3330 delivers precise electrical control for standard 24V DC industrial loads.

Engineering Advantages

• Optimized Load Switching: The 0.5 Amp output capacity allows the F 3330 to drive standard industrial solenoids and contactors directly. This eliminates the need for interposing relays in many configurations, reducing wiring complexity and potential failure points within the control loop.

• Galvanic Isolation: The module features robust electrical separation between the internal logic bus and the field-side outputs. This protection prevents field-level voltage spikes from damaging the central CPU, ensuring continuous operation in electrically noisy environments.

• Simplified Legacy Integration: Because we supply "Brand New" stock for this discontinued model, engineers can perform direct drop-in replacements. This ensures 100% hardware and firmware compatibility with your current HIMA backplane, removing the need for software re-configuration or safety loop re-validation.

• Efficient Thermal Profile: The F 3330 utilizes high-efficiency switching components that minimize heat generation. This low thermal signature allows for dense module packing within the PLC rack without exceeding the operating temperature limits of the enclosure.

FAQs

• How do I verify if this Brand New F 3330 is compatible with my current system?

  If your existing module carries the F 3330 part number on the faceplate, this unit acts as a direct replacement. It utilizes the standard HIMA connector interface, requiring no physical or logical modifications.

• What type of protection does the F 3330 offer against short circuits?

  The module incorporates internal electronic protection to safeguard against overloads. However, we recommend installing external fast-acting fuses according to the HIMA safety manual to provide comprehensive protection for your field-side cabling.

• Can I use this 8-channel module in a safety-instrumented system (SIS)?

  Yes, the F 3330 is a standard component for HIMatrix safety architectures. Ensure your system's overall SIL calculation accounts for this module's specific reliability data as provided in the HIMA technical documentation.

• Does this "Discontinued" status affect the warranty of a Brand New unit?

  Despite the manufacturer's production status, we provide a full functional guarantee on all 100% Brand New F 3330 units, ensuring they meet the original factory performance specifications upon installation.
