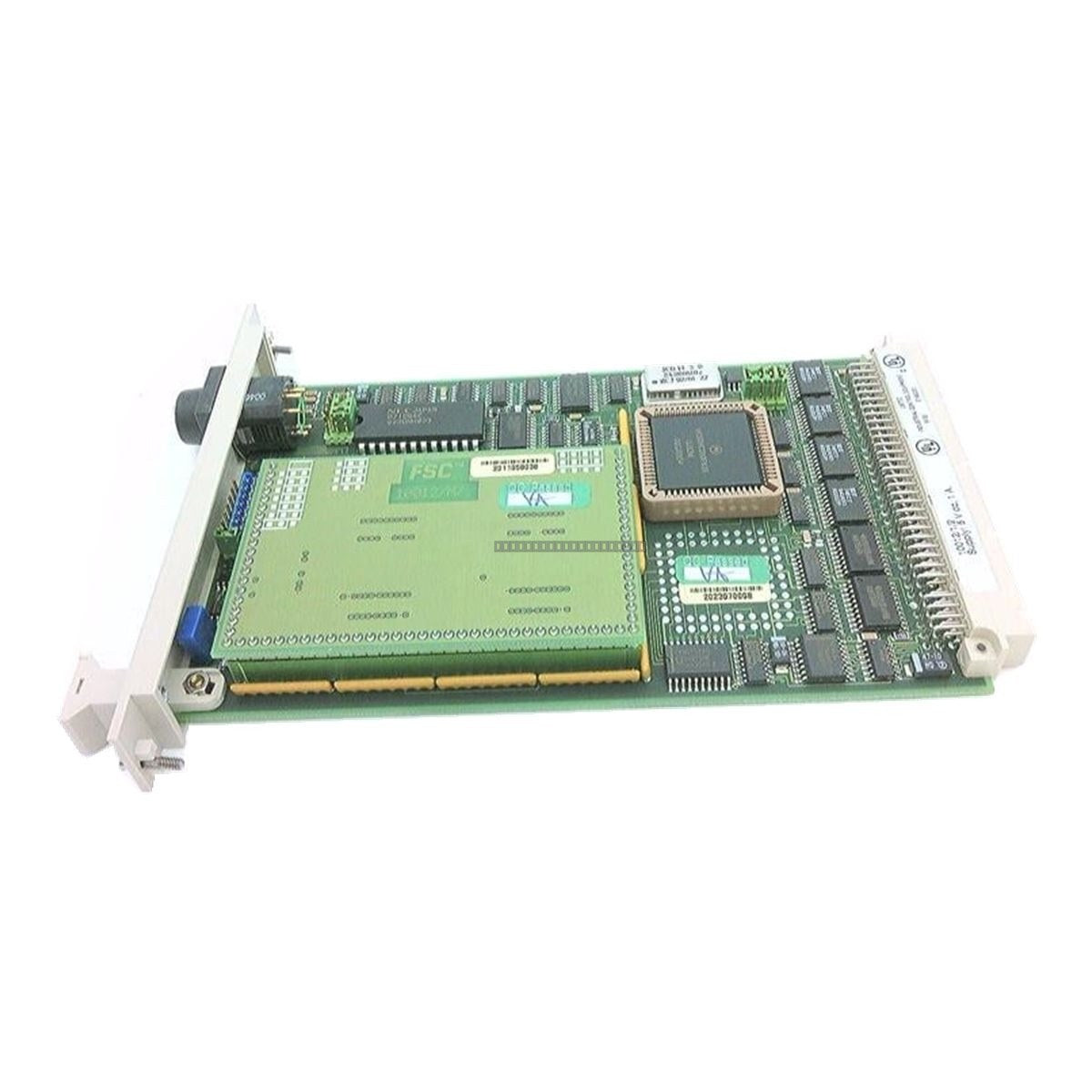

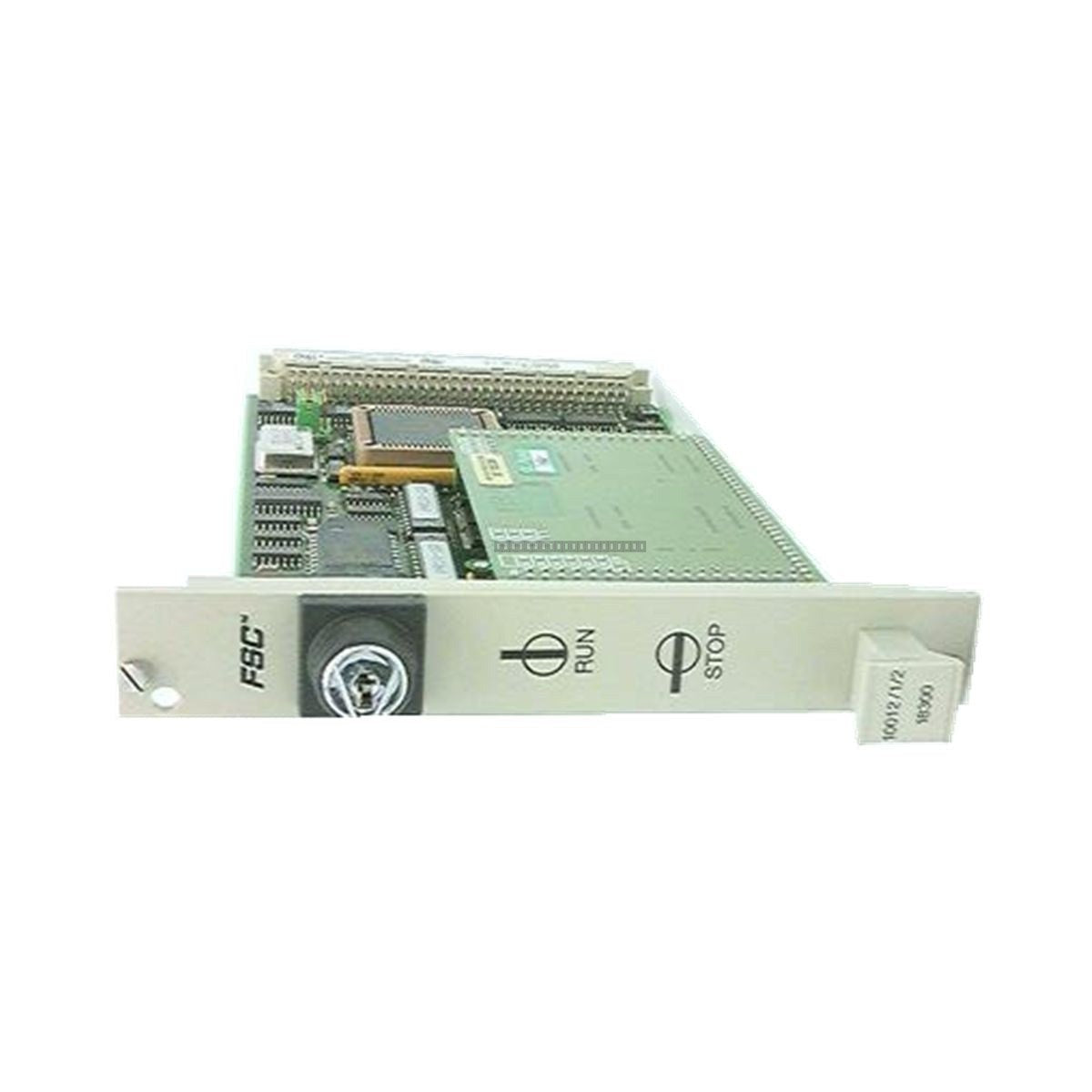

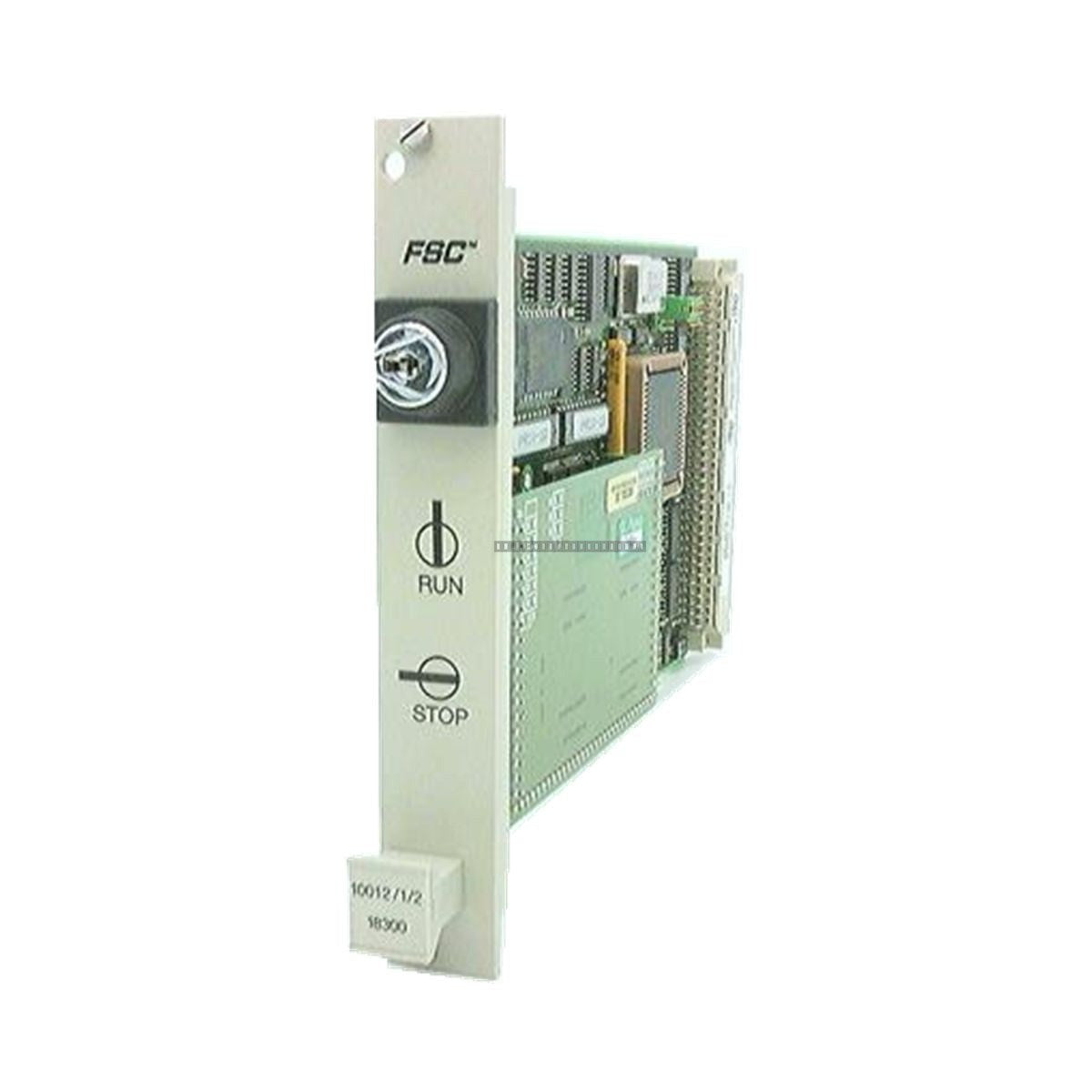

Honeywell 10012/1/2 FSC Central Processing Unit Module

Description

The Honeywell 10012/1/2 is a Central Processing Unit (CPU) module designed for the Fail Safe Control (FSC) system. This module serves as a critical component in safety-critical automation environments, providing high-reliability processing and control logic execution. It features integrated flash memory for secure firmware and application storage, ensuring data integrity during operation.

Features

• Designed for Honeywell FSC (Fail Safe Control) safety systems.
• Integrated flash memory for robust program and data storage.
• High-reliability architecture suitable for safety-instrumented systems.
• Compact modular design for efficient rack mounting.

Applications

This CPU module is primarily utilized in industrial safety-instrumented systems (SIS) where continuous, fault-tolerant operation is required. Typical applications include emergency shutdown systems (ESD), fire and gas monitoring, and critical process control in oil and gas, chemical, and power generation facilities.

Technical Specifications

Installation Guidelines

• Ensure the system power is completely disconnected before attempting to install or remove the CPU module from the FSC rack.
• Handle the module using proper ESD (Electrostatic Discharge) protection practices to prevent damage to internal circuitry.
• Verify that the module is correctly seated in the designated slot and that all locking mechanisms are engaged.
• Ensure the environment is free from excessive vibration and within the specified operating temperature range for the FSC system.
• Check for proper grounding of the rack assembly to minimize EMI/RFI interference.

FAQ

Is this module still supported by the manufacturer?

The 10012/1/2 is listed as discontinued by Honeywell. We provide this unit as a reliable spare part option for maintaining legacy safety systems.

What is the primary function of the flash memory in this module?

The flash memory is used to store the critical control logic and firmware required for the FSC system to execute safety functions reliably without the risk of data loss during power cycles.
