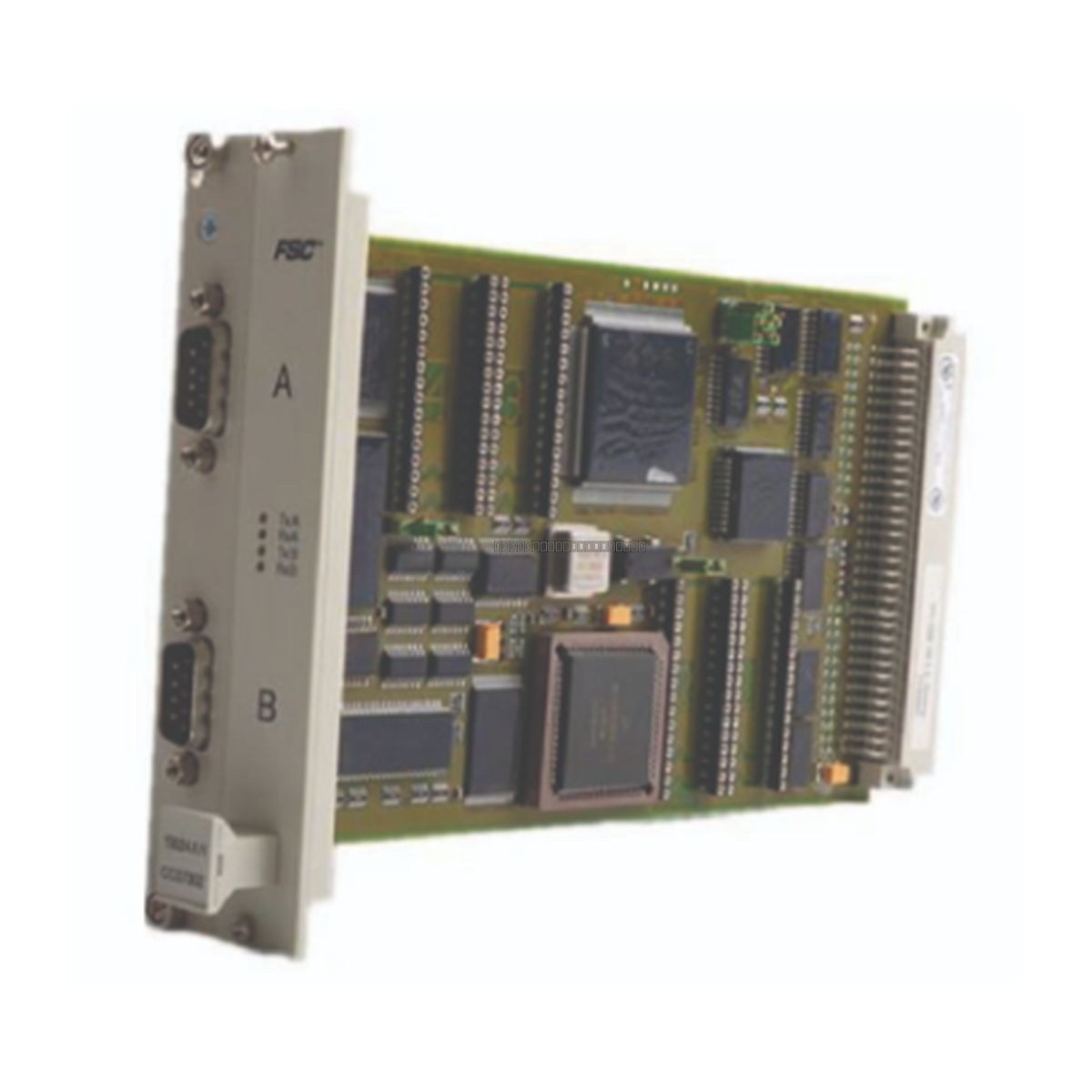

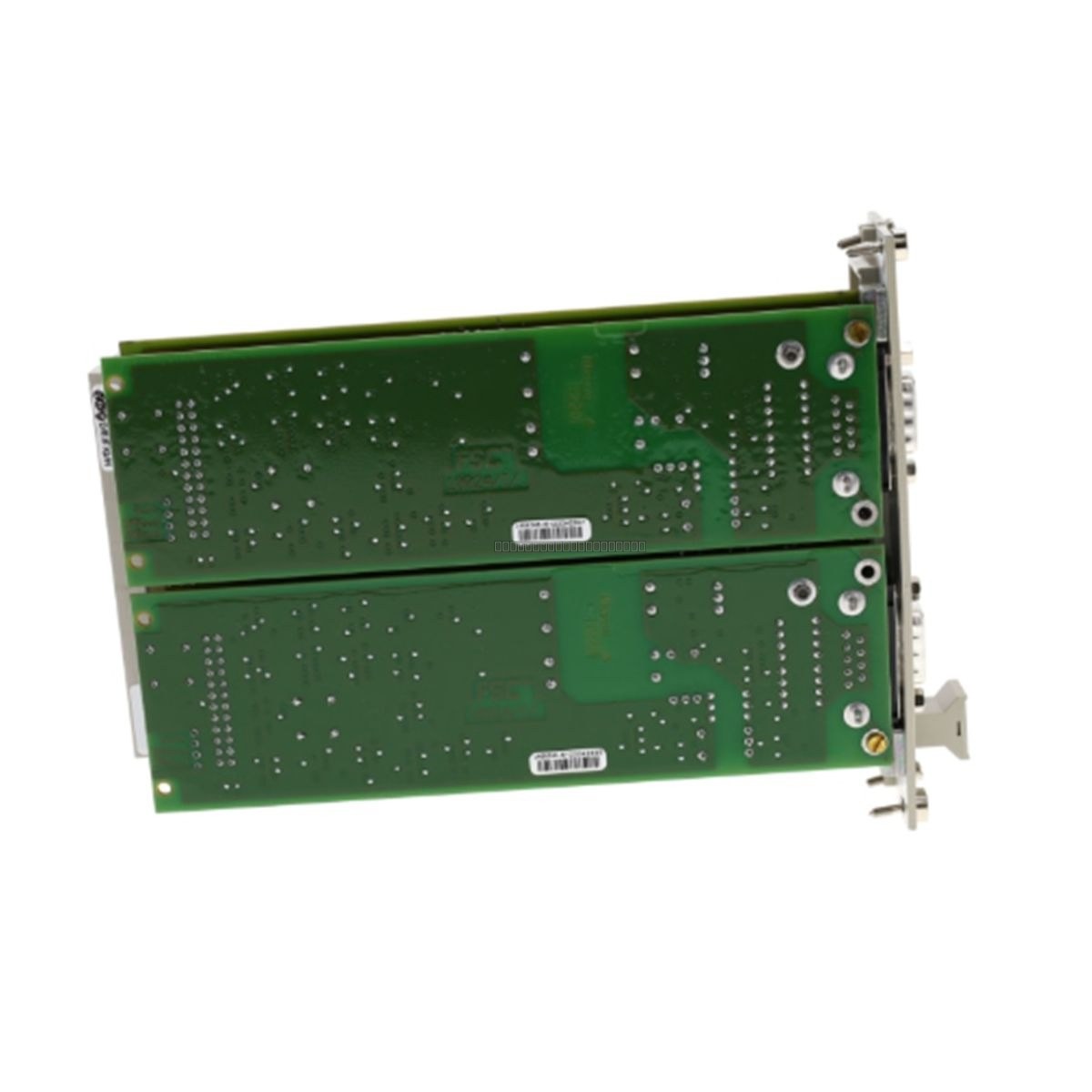

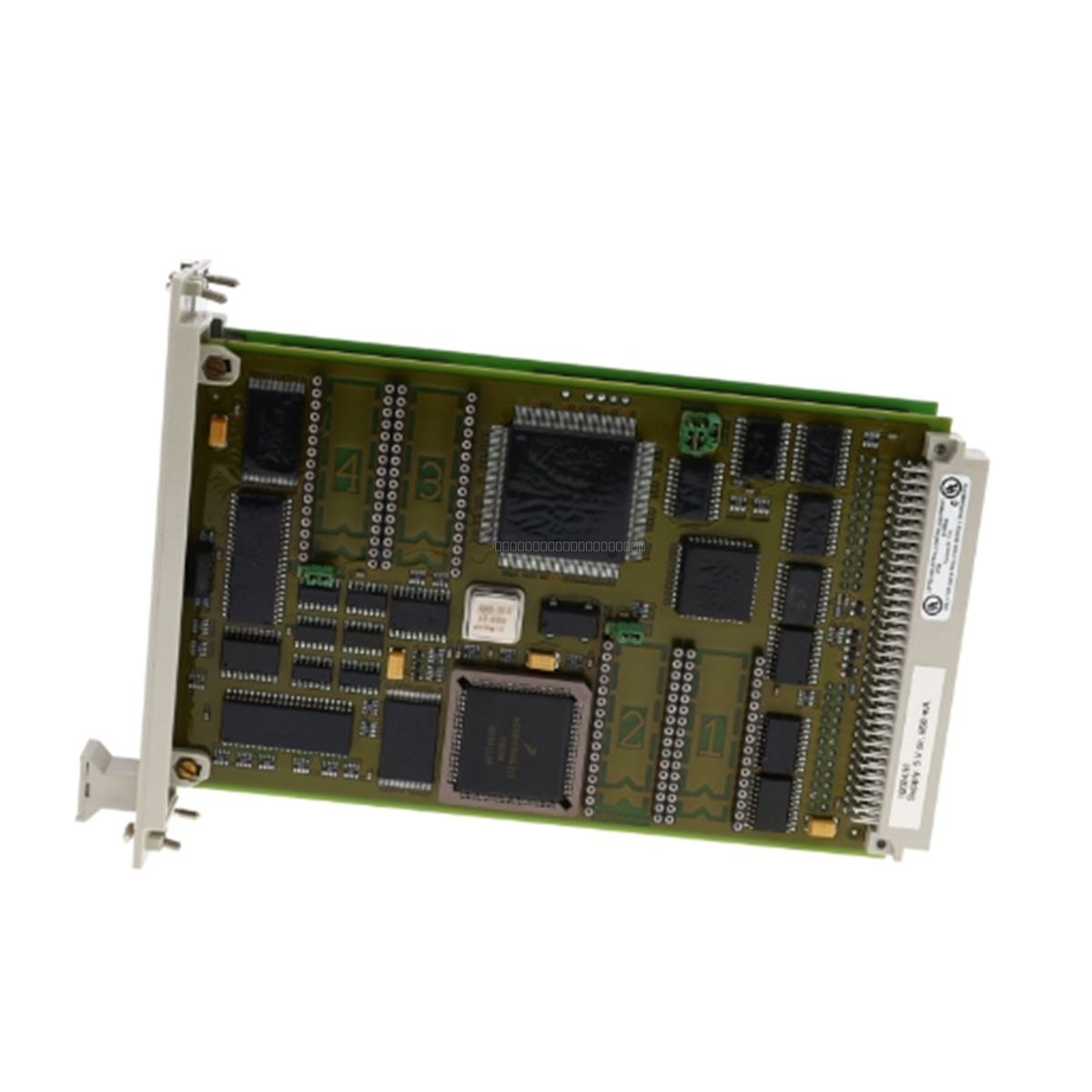

Honeywell 10024/I/I Enhanced Communication Module

Description

The Honeywell 10024/I/I (10024II) is an enhanced communication module engineered for industrial PLC and machine control systems. It is designed to facilitate high-speed data exchange and robust memory management within distributed automation environments. By utilizing advanced semiconductor memory architecture, this module ensures deterministic communication and rapid signal processing, making it a critical component for maintaining controller availability in demanding industrial processes.

Features

• High-Speed Performance: Features a rapid 1.5 microsecond access time for efficient process synchronization and data throughput.
• Memory Capacity: Provides 10,024 words of semiconductor memory for reliable handling of process variables and communication buffers.
• Industrial Reliability: Designed for continuous operation in harsh environments, including power generation, water treatment, and manufacturing facilities.
• Compact Design: Optimized for rack-mounted integration to minimize cabinet footprint while supporting high-volume data transactions.

Applications

This module is widely utilized in refinery control systems, power generation plants, manufacturing automation lines, and mining operations. It is specifically suited for applications requiring stable, high-speed communication between controllers, operator stations, and field-connected instrumentation.

Technical Specifications

Installation Guidelines

• Power Safety: Always disconnect power from the PLC rack before inserting or removing the module to prevent electrical damage or system faults.
• Mounting: Ensure the module is securely seated in the designated rack slot to maintain proper electrical contact and mechanical stability.
• Environment: Install in a clean, dry environment within the specified temperature range. Ensure adequate ventilation around the rack to prevent overheating.
• Handling: Observe standard ESD (Electrostatic Discharge) precautions when handling the module to protect sensitive internal semiconductor components.
• Grounding: Ensure the PLC rack is properly grounded according to local industrial electrical codes to minimize EMI interference.

FAQ

What is the primary function of the 10024/I/I module?
The module acts as an enhanced communication interface for PLC systems, providing high-speed data buffering and memory management for distributed control tasks.

Is this module suitable for high-vibration environments?
The module is designed for standard industrial rack mounting. While it supports continuous operation, ensure the rack assembly is properly secured in accordance with your specific site vibration standards.

What power supply does this module require?
The module operates on a 5 VDC logic supply and accepts 220 to 240 VAC input at 50/60 Hz.
