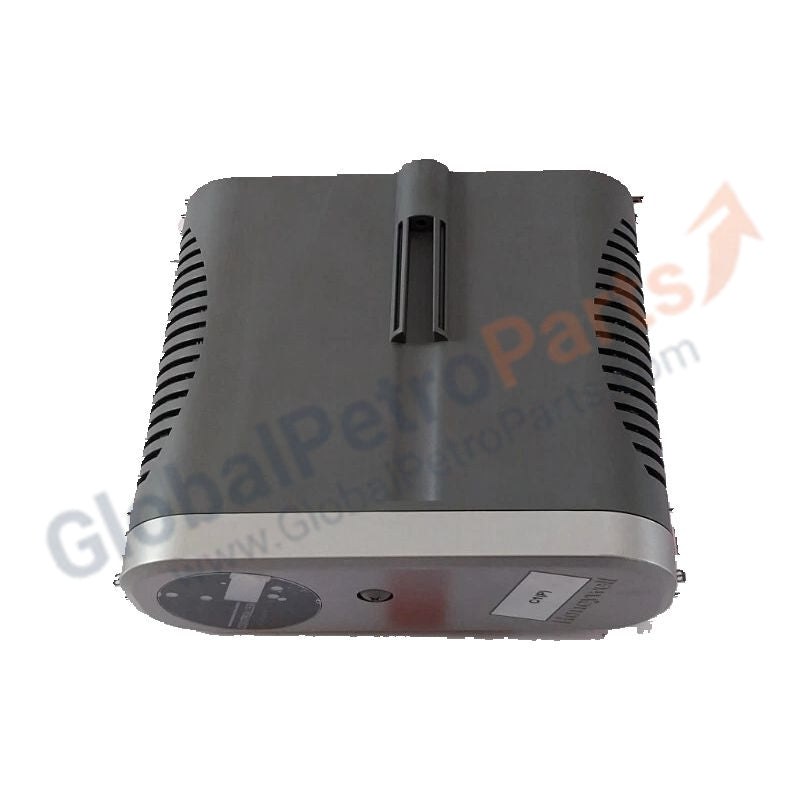

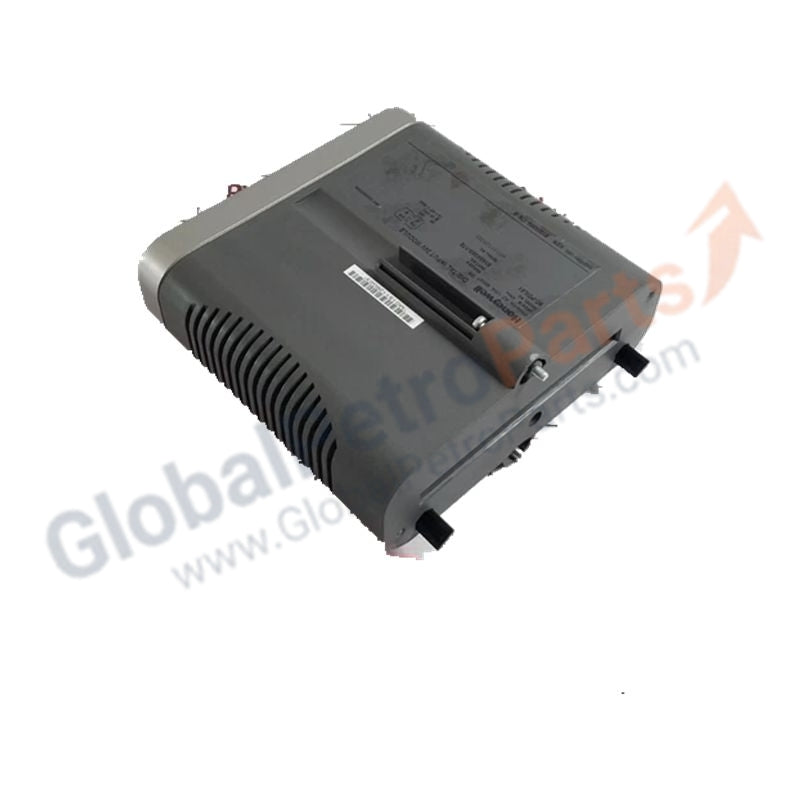

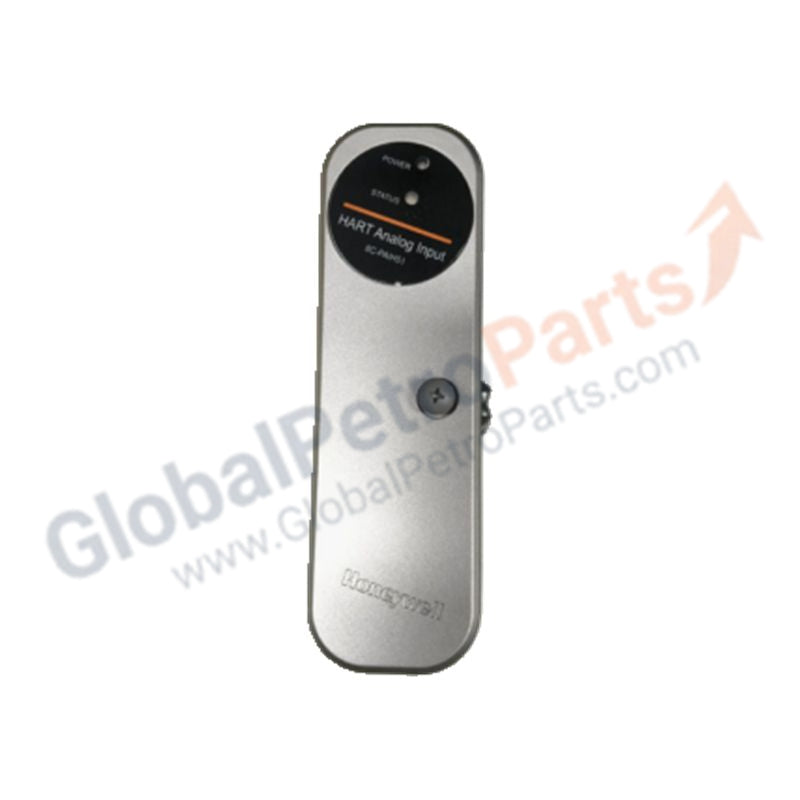

Honeywell 8C-PAIH51*E Industrial Analog Input Module

Product Description

The 8C-PAIH51*E is a robust industrial analog input module engineered for the Honeywell Experion PKS Series 8 platform. It provides accurate 4–20 mA signal acquisition, forming a reliable interface between field instrumentation and the control layer.

Designed for operation in extreme environmental conditions, the module maintains high signal integrity and diagnostic transparency for critical process variables. High-performance analog-to-digital conversion ensures low-latency data processing, while seamless integration with the C300 controller environment supports deterministic, high-speed communication.

Technical Specifications

Application Scenarios

The 8C-PAIH51*E is commonly deployed in:

• Remote Instrument Enclosures (RIEs)

• Distributed control rooms

Its extended temperature range makes it suitable for outdoor and semi-controlled environments, such as:

• Oil & gas upstream facilities

• Mining and heavy industrial sites with limited climate control

Frequently Asked Questions

Q: What does the “E” suffix indicate on the 8C-PAIH51*E?
A: The “E” variant generally denotes an enhanced or environment-rated version, typically associated with hardware revisions designed for improved durability in harsh industrial conditions.

Q: Does the 8C-PAIH51*E require external power for field loops?
A: The module operates on a nominal 24 VDC supply for internal logic. Depending on the termination assembly configuration, this power may also be used to supply connected field transmitters.
