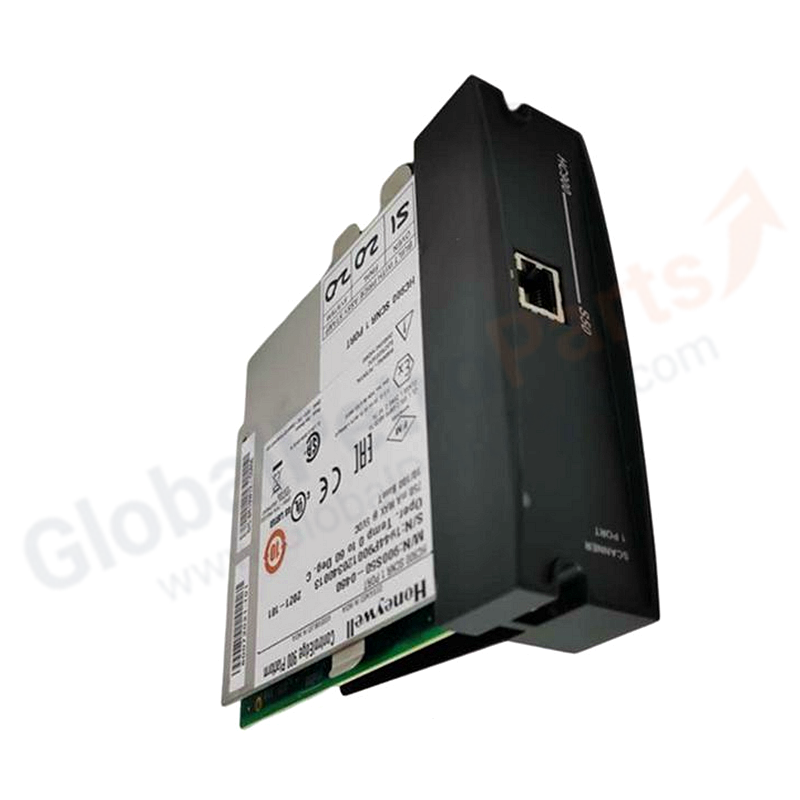

Honeywell 900A01-0102 Analog Input Module 8 Point

Product Overview

The Honeywell 900A01-0102 is a Universal Analog Input Module providing 8 isolated channels for the Honeywell ControlEdge HC900 platform. This versatile module accepts multiple signal types including thermocouples (TC), RTDs, voltage, current (4-20 mA), millivolt, and slidewire inputs, making it ideal for comprehensive process monitoring applications. With 16-bit A/D resolution, ±0.1% accuracy, and galvanic isolation per channel, it delivers precise, reliable measurement of temperature, pressure, flow, and level variables.

Key Features

• 8 Isolated Analog Inputs: Per-channel galvanic isolation for signal integrity
• Universal Signal Support: TC, RTD, voltage, current (4-20 mA), mV, slidewire
• 16-Bit A/D Resolution: High-precision digital conversion
• ±0.1% Full-Scale Accuracy: Factory-calibrated precision
• 400 VDC Point-to-Point Isolation: Prevents ground loops and noise
• Hot-Swap Capable: Replace without system shutdown
• Non-Volatile Calibration: Calibration data stored in module memory

Technical Specifications

• Model: 900A01-0102
• Type: Universal Analog Input Module
• Series: ControlEdge HC900
• Channels: 8 (isolated)
• Input Types: Thermocouple (J, K, T, E, R, S, B, N), RTD (Pt100, Pt1000, etc.), Voltage (0-10V, ±10V, etc.), Current (4-20 mA, 0-20 mA), mV, Slidewire
• Input Impedance: > 1 MΩ (voltage), 250 Ω (current)
• A/D Resolution: 16-bit
• Accuracy: ±0.1% of full scale (at reference conditions)
• Isolation: 400 VDC point-to-point, 1000 VDC to logic
• Update Rate: 500 ms (per module)
• Scan Time: 500 ms
• Power Consumption: 5V: 380 mA max; 24V: 40 mA max
• Heat Dissipation: ~8.5W
• Dimensions: 137 mm H × 35.6 mm W (5.4" H × 1.4" W)
• Weight: ~210 g
• Mounting: Chassis slot mount
• Operating Temperature: -40°C to +70°C
• Approvals: CE, UL508, TÜV, CSA

Installation Guide

1. Chassis Insertion: Slide module into designated I/O slot; secure with retention mechanism
2. Terminal Block: Use 900TEK (Euro style) or 900TBK (barrier style) terminal block
3. Sensor Wiring: Connect sensors per signal type:
   • Thermocouple: Connect + and - leads; use compensation cable
   • RTD: Connect 2-wire, 3-wire, or 4-wire per configuration
   • 4-20 mA: Connect +24V, signal +, signal -
4. Shield Grounding: Connect cable shields to single-point ground
5. Configuration: Set channel types and ranges in ControlEdge Builder software

FAQ

Q: What is the difference between 900A01-0102 and 900A01-0202?
A> 900A01-0202 is a later revision with similar functionality. Both support universal analog inputs. Verify software compatibility when mixing revisions.

Q: Can all 8 channels be configured differently?
A> Yes. Each channel is independently configurable for any supported input type via ControlEdge Builder software.

Q: Is HART protocol supported?
A> The 900A01-0102 does not natively support HART. For HART-enabled analog inputs, consider the 900U01-0100 Universal I/O Module.

Selection Tips

• Use 900A01-0102 when multiple analog signal types (TC, RTD, mA, V) are needed in one module
• For high-density voltage/current only (16 CH), use 900A16-0101/0103
• Verify sensor wiring requirements (2-wire vs. 3-wire RTD) before installation
• Consider 900U01-0100 Universal I/O for mixed AI/AO/DI/DO applications
