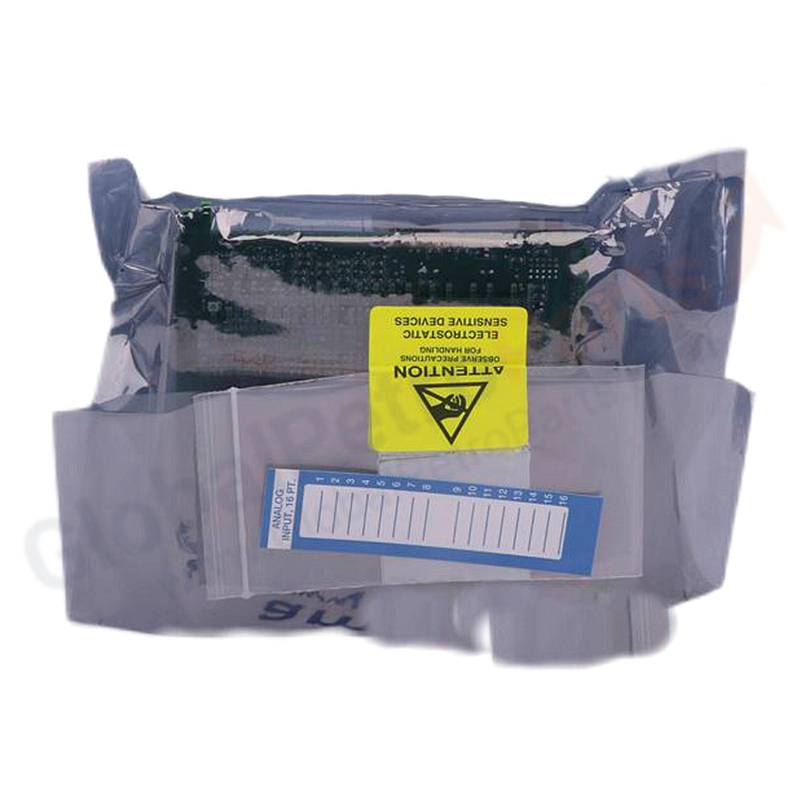

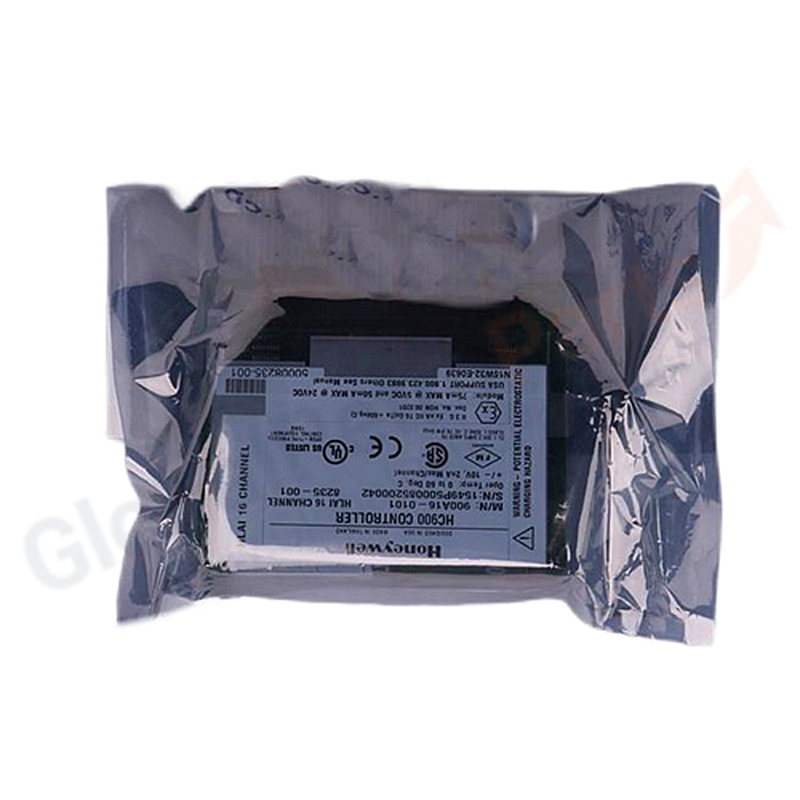

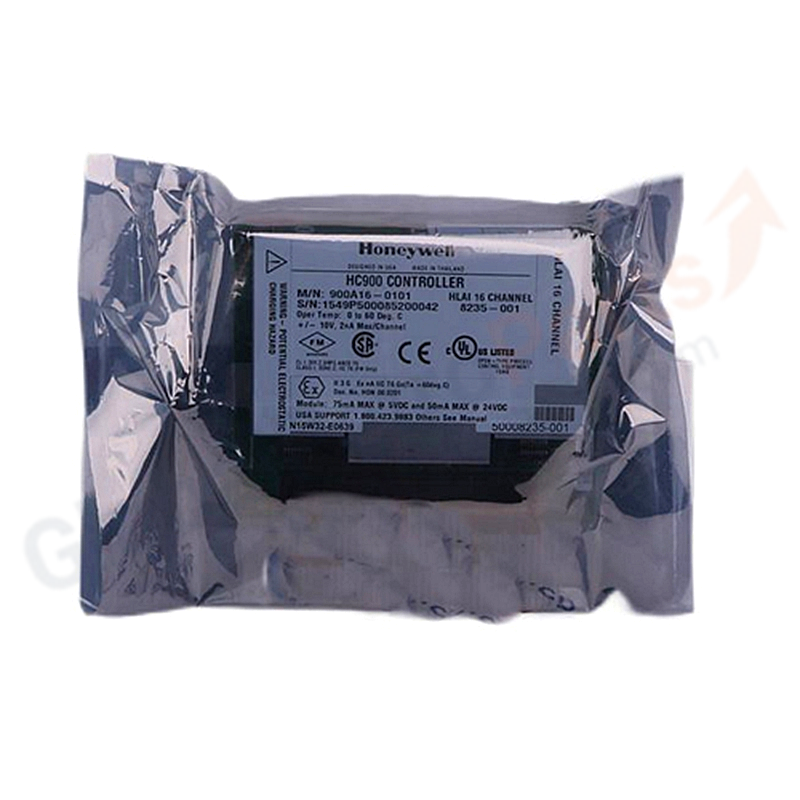

Honeywell 900A16-0101 Analog Input Hi Level Module

Product Overview

The Honeywell 900A16-0101 is a High-Level Analog Input Module providing 16 isolated channels for voltage and current signal acquisition in the Honeywell ControlEdge HC900 system. Designed for high-density process monitoring, this module accepts ±10V voltage and 4-20 mA current inputs with 15-bit A/D resolution and ±0.1% accuracy. Point-to-point galvanic isolation and solid-state switching ensure reliable operation in noisy industrial environments.

Key Features

• 16 Isolated Analog Inputs: High-density voltage and current acquisition
• High-Level Signals: ±10V, 4-20 mA, 0-20 mA
• 15-Bit A/D Resolution: Precise digital conversion
• ±0.1% Accuracy: Factory-calibrated precision
• 400 VDC Point-to-Point Isolation: Prevents ground loops
• 100 ms Update Rate: Fast analog-to-digital conversion
• Parallel Sampling: Consistent scan rate regardless of module count

Technical Specifications

• Model: 900A16-0101
• Type: High-Level Analog Input Module
• Series: ControlEdge HC900
• Channels: 16 (isolated)
• Input Types: Voltage (±10V, 0-10V, etc.), Current (4-20 mA, 0-20 mA)
• Input Impedance: > 1 MΩ (voltage), 250 Ω (current)
• A/D Resolution: 15-bit
• Accuracy: ±0.1% of range (factory configured)
• Isolation: 400 VDC point-to-point; 1000 VDC to logic
• Noise Rejection: Series mode > 31 dB; Common mode > 90 dB at 120 VAC
• Over-Range Limit: ±10% for linear ranges
• Update Rate: 100 ms (per module)
• Scan Time: 100 ms
• Power Consumption: 5V: 75 mA max; 24V: 50 mA max
• Heat Dissipation: ~2.2W
• Dimensions: 137 mm H × 35.6 mm W (5.4" H × 1.4" W)
• Weight: ~397 g
• Mounting: Chassis slot mount
• Operating Temperature: -40°C to +70°C
• Approvals: CE, UL, TÜV, CSA

Installation Guide

1. Chassis Insertion: Install in HC900 I/O rack slot
2. Terminal Block: Use 900TEK/900TBK low-voltage terminal blocks
3. Transmitter Wiring: Connect 2-wire or 4-wire transmitters per channel
4. Shield Grounding: Single-point ground for shielded cables
5. Configuration: Set voltage or current range per channel in ControlEdge Builder

FAQ

Q: What is the difference between 900A16-0101 and 900A16-0103?
A> 900A16-0103 is a later revision with enhanced specifications. Both are 16-channel high-level analog input modules. Verify software compatibility.

Q: Can this module measure thermocouples or RTDs?
A> No. The 900A16 is for high-level voltage/current signals only. For TC/RTD inputs, use 900A01-0102 Universal Analog Input Module.

Q: What is the maximum source resistance for current inputs?
A> The module presents a 250 Ω burden. Ensure transmitter output voltage is sufficient to drive 4-20 mA through this resistance plus wiring.

Selection Tips

• Use 900A16-0101 for high-density voltage/current monitoring (16 CH vs. 8 CH on 900A01)
• For mixed signal types (TC, RTD, mA, V), use 900A01-0102 instead
• Verify scan time requirements: 100 ms for 900A16 vs. 500 ms for 900A01
