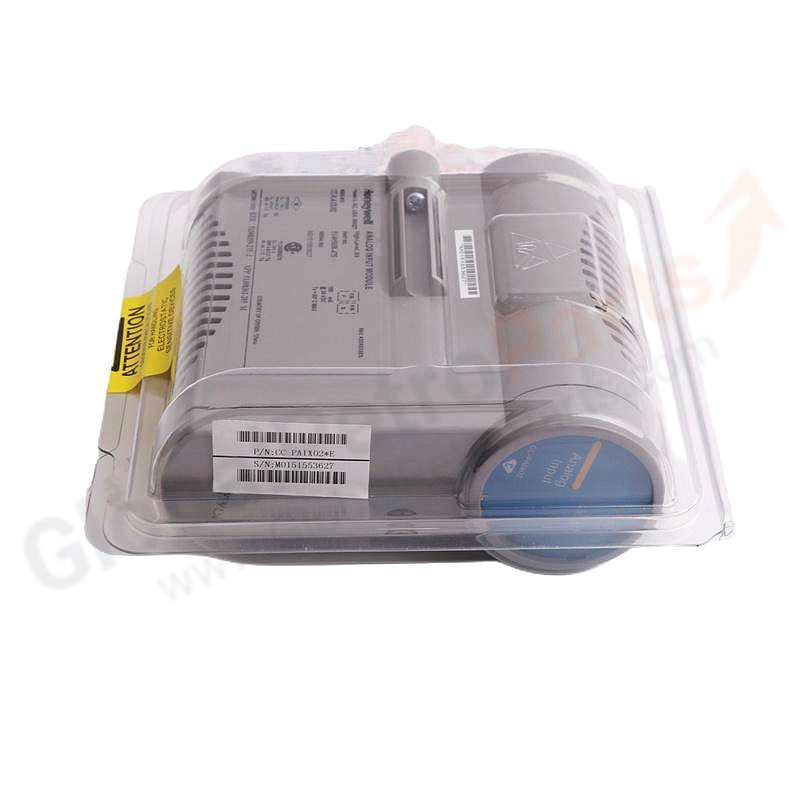

Honeywell CC-PAIX02 Hart Analog Input Module 51405038-475

Overview

The Honeywell CC-PAIX02 is a 16-Channel High-Level Analog Input Module for Honeywell Experion™ PKS Series C distributed control systems. It accepts current and voltage inputs from transmitters and sensing devices, providing high-resolution signal conversion for precise process monitoring.

Technical Specifications

• Manufacturer: Honeywell
• Model: CC-PAIX02
• Type: 16-Channel High-Level Analog Input Module
• Input Channels: 16 (12 single-ended / 4 differential)
• Input Types: Voltage, current (2-wire or self-powered transmitters)
• Input Ranges: 0–5 V, 1–5 V, 0.4–2 V, 4–20 mA (through 250 Ω)
• A/D Resolution: 16 bits
• Common Mode Rejection Ratio (CMRR): 70 dB (DC to 60 Hz, 500 Ω imbalance)
• Common Mode Voltage: −6 to +5 V peak (DC to 60 Hz)
• Normal Mode Rejection Ratio (NMRR): 19 dB (at 60 Hz)
• Normal Mode Filter: Single-pole RC, −3 dB @ 6.5 Hz
• Maximum Normal Mode Input: ±30 V (differential, no damage)
• Crosstalk: −60 dB (DC to 60 Hz, channel-to-channel)
• Input Impedance (voltage): >10 MΩ
• Input Scan Rate: 50 ms
• Hardware Accuracy: ±0.075 % FS (23.5 °C ± 2 °C); ±0.15 % FS (0–60 °C)
• Power Supply: 24 VDC (backplane)
• Weight: 0.3 kg
• Dimensions: ~120 × 80 × 60 mm

Environmental & Safety Ratings

• Operating Temperature: −40 °C to +85 °C (per some sources); 0 °C to +60 °C (standard)
• Storage Temperature: −40 °C to +85 °C
• Humidity: 5 % – 95 % RH non-condensing

Key Features

• 16-channel high-density analog input with flexible single-ended/differential configuration
• 16-bit resolution for precise process variable measurement
• 70 dB CMRR for excellent noise rejection in industrial environments
• Supports 4–20 mA, 0–5 V, 1–5 V, and 0.4–2 V input ranges
• Optional redundancy for high-availability applications
• Supplies non-incendive field power for Class I Div. 2 hazardous areas

FAQ

Q: What is the difference between CC-PAIX01 and CC-PAIX02?
A> CC-PAIX02 is the enhanced successor to CC-PAIX01. CC-PAIX02 supports differential inputs on all 16 channels; CC-PAIX01 only supports differential on channels 13–16.

Q: Does this module support HART communication?
A> No, CC-PAIX02 is a non-HART high-level analog input module. For HART support, use CC-PAIH02.

Q: What IOTA bases are required?
A> Compatible IOTAs include CC-TAIX01 (non-redundant), CC-TAIX11 (redundant), CC-GAIX21, CC-GAIX11, CC-TAID01, CC-TAID11.

Installation Guidelines

1. Mount the CC-PAIX02 on the appropriate IOTA base.
2. Connect 4–20 mA or voltage signal wiring to the terminal blocks.
3. Configure input range and scaling via Experion PKS Control Builder.
4. Verify channel accuracy against calibrated reference signals.

Selection Tips

• Choose CC-PAIX02 for high-level analog input (4–20 mA, 0–5 V) without HART requirements.
• For HART-enabled transmitters, upgrade to CC-PAIH02.
• Verify whether your application requires single-ended or differential input configuration.
