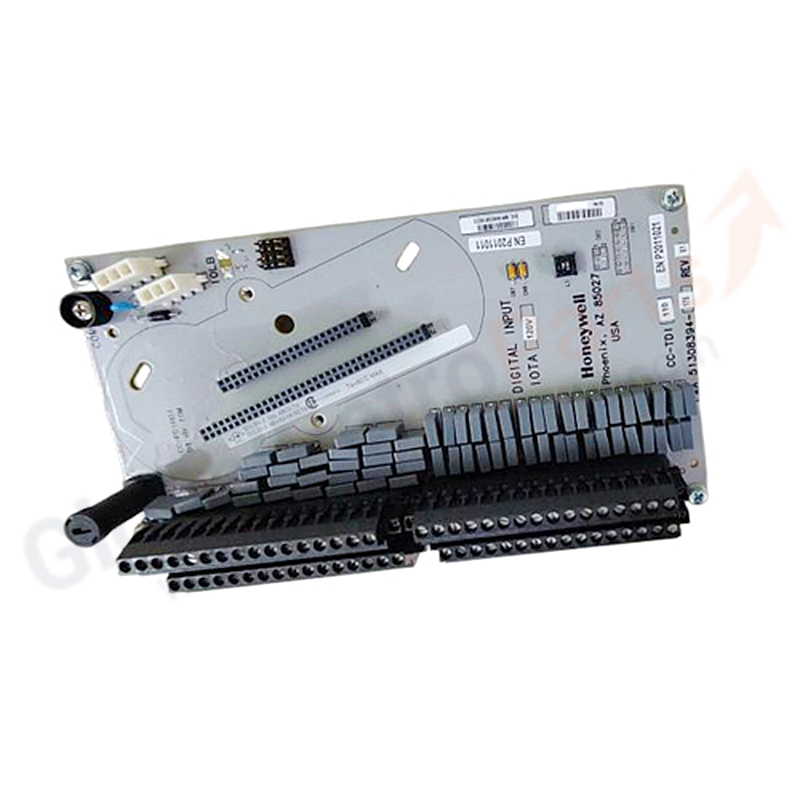

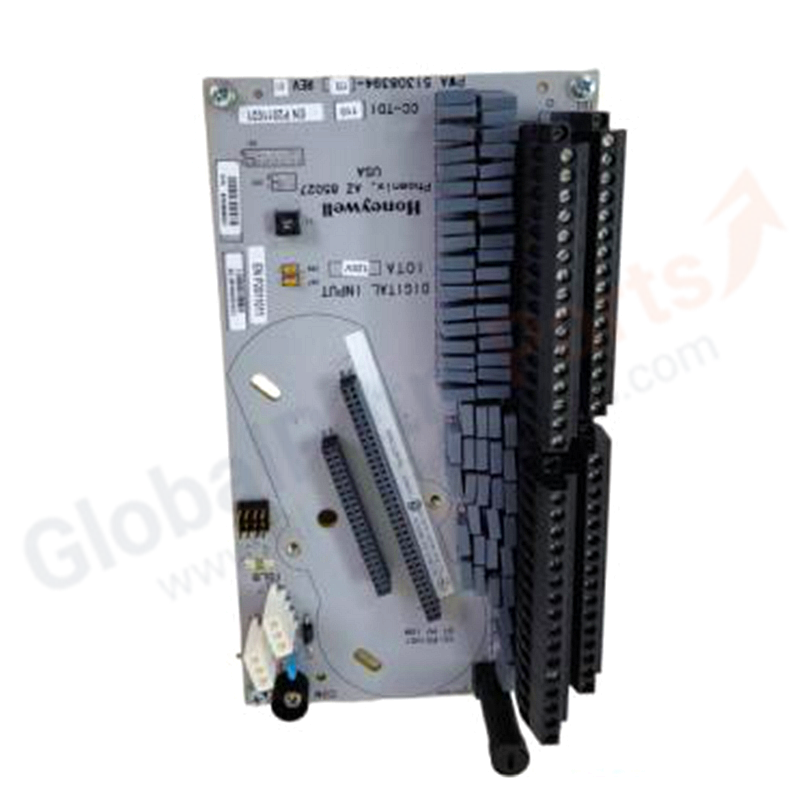

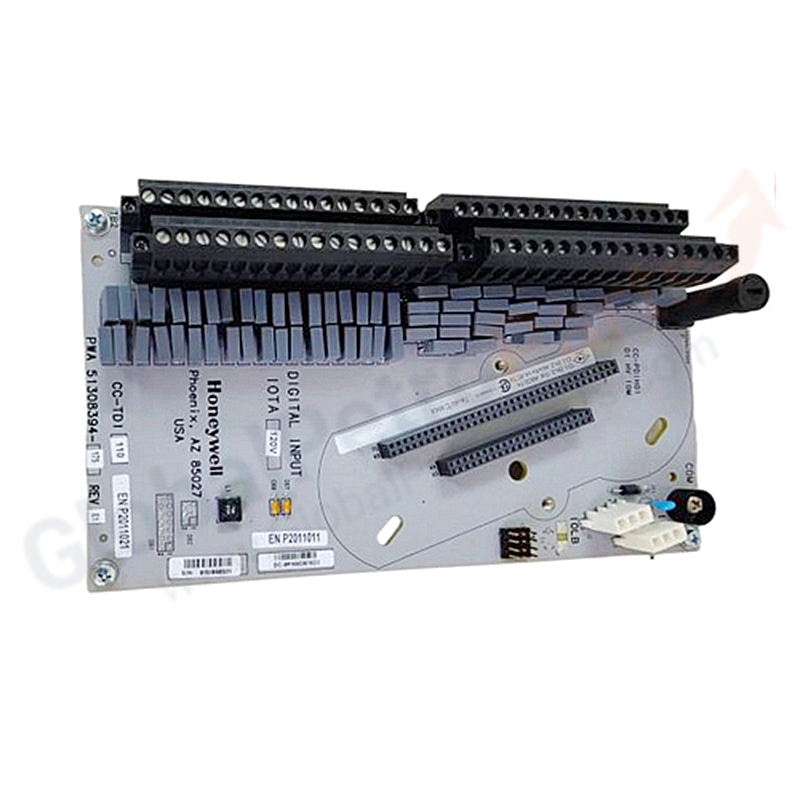

Honeywell CC-TDI110 Digital Input IOTA Board

Overview

The Honeywell CC-TDI110 is a Digital Input High-Voltage IOTA (Input/Output Termination Assembly) for Honeywell Experion™ PKS Series C distributed control systems. It provides non-redundant termination for high-voltage discrete input signals (120 VAC, 125 VDC, 240 VAC) in a 9-inch form factor.

Technical Specifications

• Manufacturer: Honeywell
• Model: CC-TDI110
• Type: Digital Input High-Voltage IOTA (Non-Redundant, 9")
• Nominal Voltage: 120 VAC (PROX), 125 VDC, 240 VAC
• Input Power Range: 90–132 VAC RMS; 100–138 VDC; 180–264 VAC RMS
• Sense Current (ON): 7.5 mA RMS min @ 90 V; 10 mA RMS @ 132 V
• Sense Current (OFF): 2.0 mA RMS max
• Pick-up Voltage (ON): 90 VAC RMS min; 100 VDC min
• Drop-out Voltage (OFF): 20 VAC RMS max; 25 VAC RMS max (IOTA models)
• Frequency Range: 47–63 Hz
• Delay Time: 25 ms max (bounceless input to logic change)
• Galvanic Isolation: 1500 VAC RMS or ±1500 VDC
• Isolation Technique: Optical

Key Features

• High-voltage digital input for 120 VAC, 125 VDC, and 240 VAC field signals
• Non-redundant 9-inch form factor for standard cabinet layouts
• Optical galvanic isolation protects against high-voltage transients
• Bounceless input filtering with 25 ms max delay
• Compatible with CC-PDIH01 high-voltage digital input electronics module

FAQ

Q: What voltage levels does this IOTA support?
A> The CC-TDI110 supports 120 VAC, 125 VDC, and 240 VAC nominal input voltages.

Q: Is this IOTA redundant?
A> No, CC-TDI110 is a non-redundant 9-inch IOTA. For redundant configurations, use CC-TDI220 or CC-TDI230.

Q: What electronics module pairs with this IOTA?
A> The CC-TDI110 is designed for use with the CC-PDIH01 Digital Input High-Voltage electronics module.

Installation Guidelines

1. Mount the CC-TDI110 IOTA on a DIN rail or panel in a suitably rated enclosure.
2. Install the CC-PDIH01 electronics module onto the IOTA.
3. Connect high-voltage field wiring (120 VAC / 125 VDC / 240 VAC) to the terminal blocks.
4. Verify proper grounding and shielding for high-voltage signal integrity.

Selection Tips

• Order CC-TDI110 for non-redundant high-voltage digital input (120 VAC / 125 VDC / 240 VAC) applications.
• For redundant high-voltage DI, select CC-TDI220 or CC-TDI230.
• Always pair with CC-PDIH01 electronics module for complete functionality.
