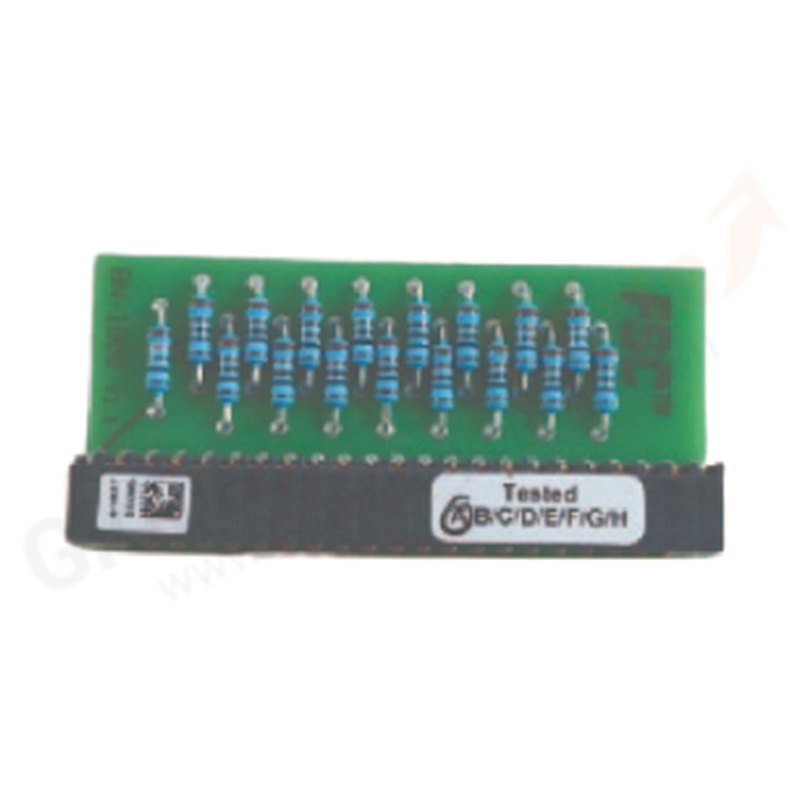

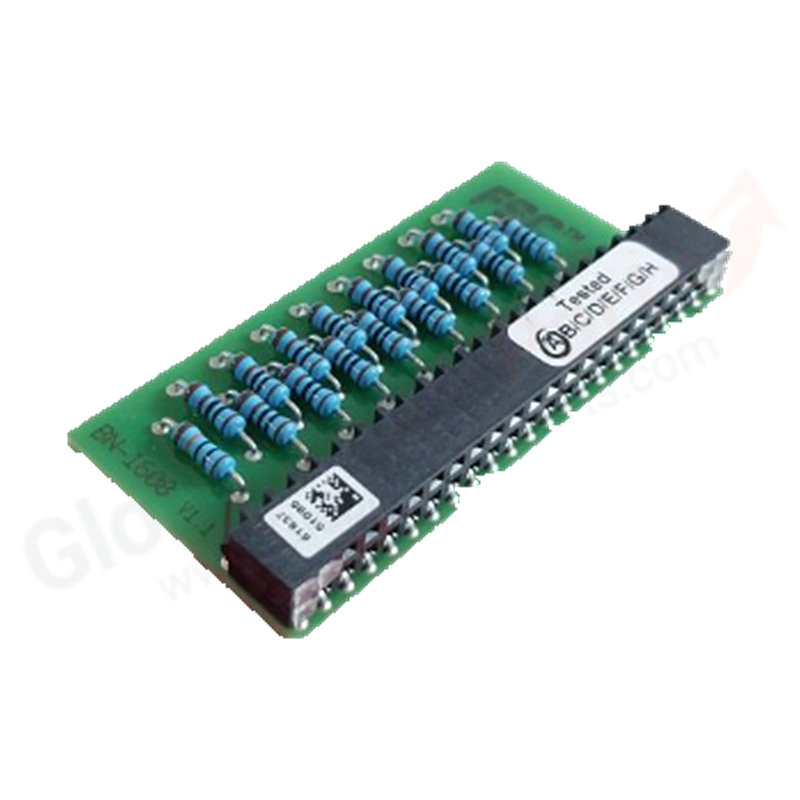

Honeywell FC-BN-1608 Bus Node / Signal Converter Module

Product Overview

The Honeywell FC-BN-1608 is a Bus Node / Signal Converter Module designed for Honeywell Safety Manager systems. It provides signal conversion and bus interface capabilities for specialized I/O modules such as the SDIL-1608 line-monitored digital input module. This module enables communication between the safety controller and devices requiring signal conversion or specialized bus protocols.

Key Features

• Signal Conversion: Converts between signal types for specialized I/O
• Bus Node Function: Interface between I/O bus and signal converters
• SDIL-1608 Support: Required for NAMUR proximity switch applications
• Programming Connector: Installs on backplane programming connector (Px)
• Compact Module: Standard form factor

Technical Specifications

• Model: FC-BN-1608
• Type: Bus Node / Signal Converter
• Function: Signal conversion for SDIL-1608 and similar modules
• Installation: Programming connector (Px) on IO backplane
• Compatibility: SDIL-1608, BSN-1608
• Operating Temperature: -40°C to +70°C

Installation Guide

1. Backplane Installation: Install on programming connector (Px) at back of IO backplane
2. Module Pairing: Pair with SDIL-1608 or compatible module in corresponding slot
3. Verification: Confirm signal conversion operation via diagnostics

FAQ

Q: Is this required for all digital input modules?
A: No. The BN-1608 is specifically required for SDIL-1608 line-monitored input modules using NAMUR proximity switches. Standard SDI-1624 modules do not require this converter.

Q: What is the difference between BN-1608 and BSN-1608?
A: BSN-1608 is a variant with similar functionality. Verify system compatibility when ordering.

Selection Tips

• Required for SDIL-1608 NAMUR proximity switch applications
• Verify programming connector (Px) availability on backplane
• Order with SDIL-1608 module as a matched pair
