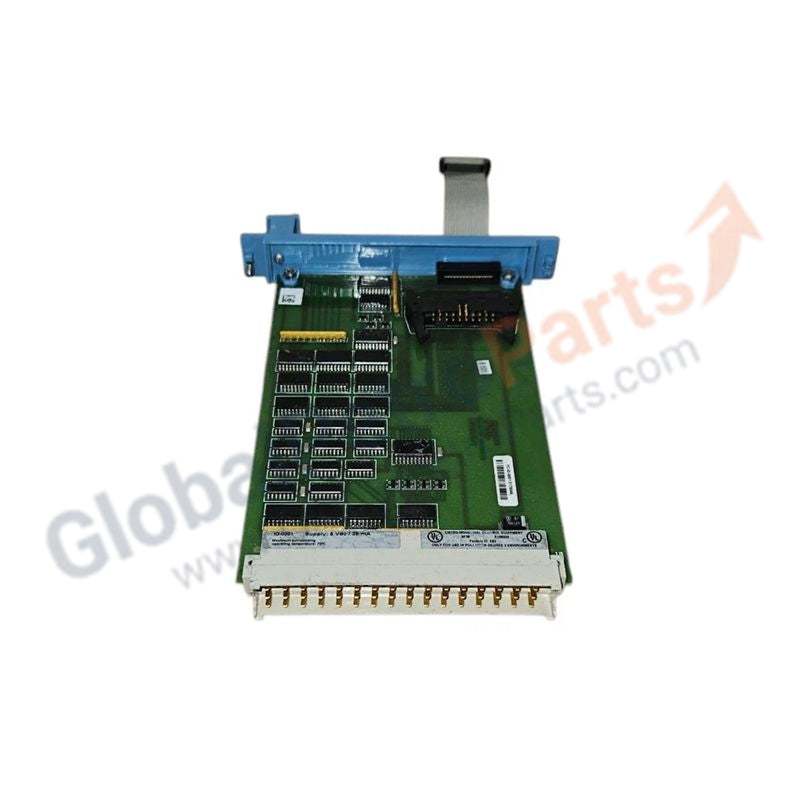

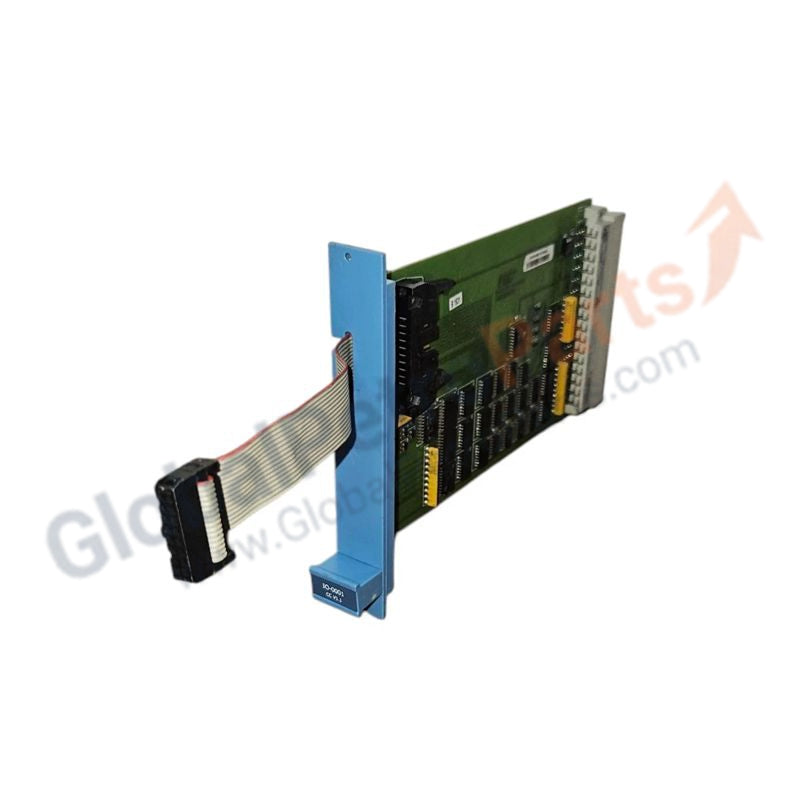

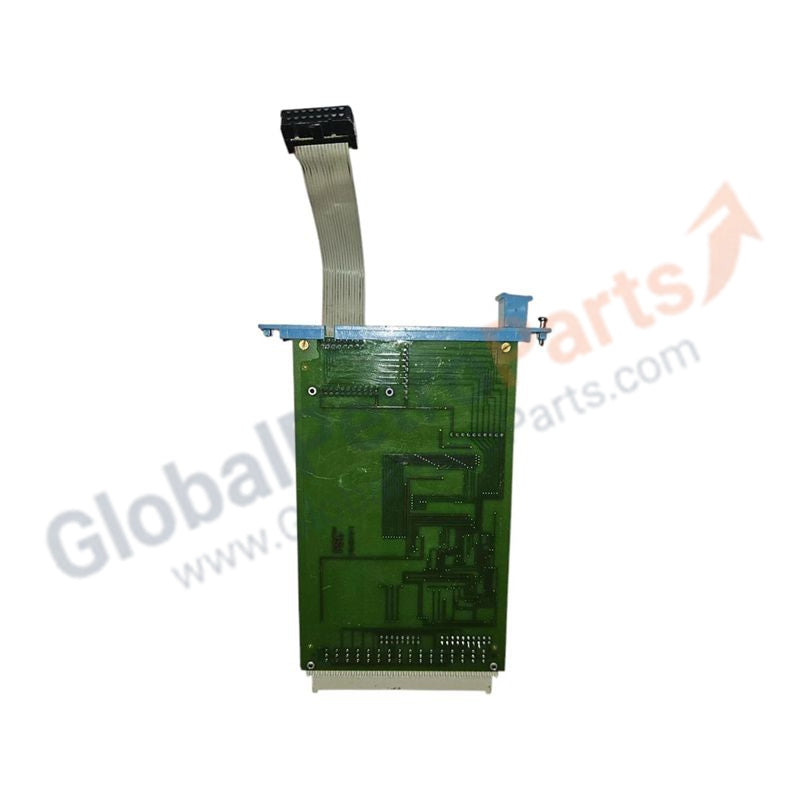

Honeywell FC-IO-0001 Safety Manager I/O Extension Module

Product Description

The FC-IO-0001 is a specialized I/O expansion module designed for the Honeywell Safety Manager (SM) system architecture. It enables the extension of I/O capacity across the safety backplane, increasing point density and allowing distributed field signal integration without compromising the high-speed data integrity required for Safety Instrumented Functions (SIF).

Designed for seamless operation within the Safety Manager chassis, the FC-IO-0001 serves as a critical communication bridge in large-scale safety systems. It preserves the stringent diagnostic and fault-detection standards of the Safety Manager platform, ensuring extended I/O points remain continuously monitored for hardware faults and communication integrity. This module is essential in complex Emergency Shutdown (ESD) and Burner Management Systems (BMS) where I/O requirements exceed the capacity of a single base rack.

Technical Specifications

System Role & Functionality

The FC-IO-0001 is typically deployed in expanded I/O cabinets where multiple racks must interface with a single safety processor. It ensures consistent application of fail-safe logic across all connected I/O modules.

Key Functions

• Signal Distribution: Reliable data exchange between the safety processor and extended I/O racks

• System Scalability: Modular expansion path for plant growth and additional safety loops

• High Availability: Fault-tolerant bus architecture minimizes single points of failure

Technical FAQ

When is the FC-IO-0001 required in a Safety Manager system?
It is required when the number of I/O modules exceeds the capacity of a single local rack or when system design calls for distributed I/O across multiple cabinets while maintaining one logic solver.

Does the FC-IO-0001 support both analog and digital I/O modules?
Yes. The FC-IO-0001 provides the communication infrastructure required to support mixed analog and digital I/O modules within an extended Safety Manager rack configuration.
