Honeywell FC-IOCHAS-0001S Non-Redundant I/O Chassis - 19-inch

Product Overview

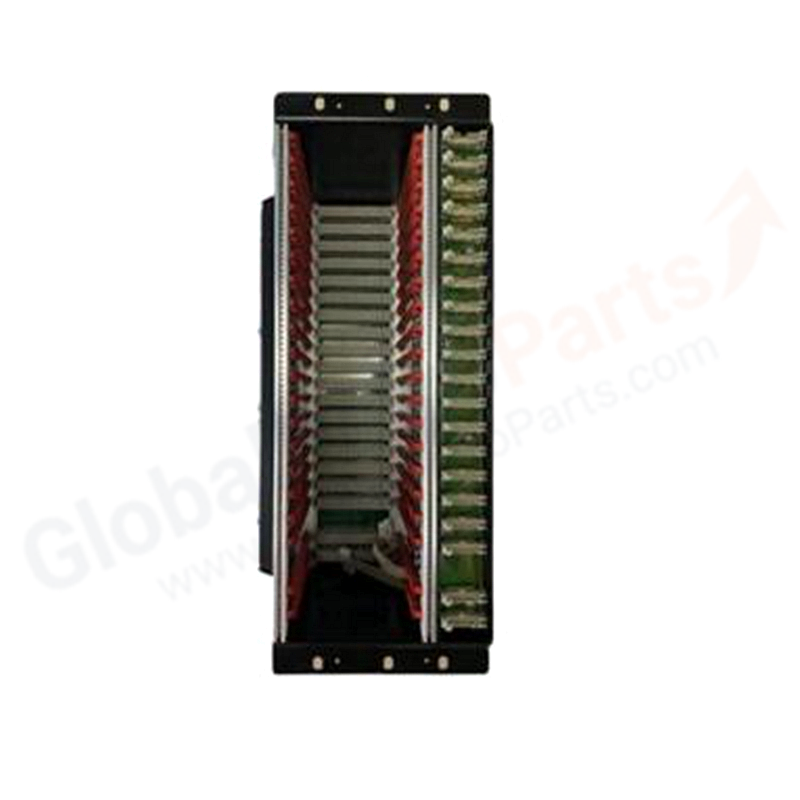

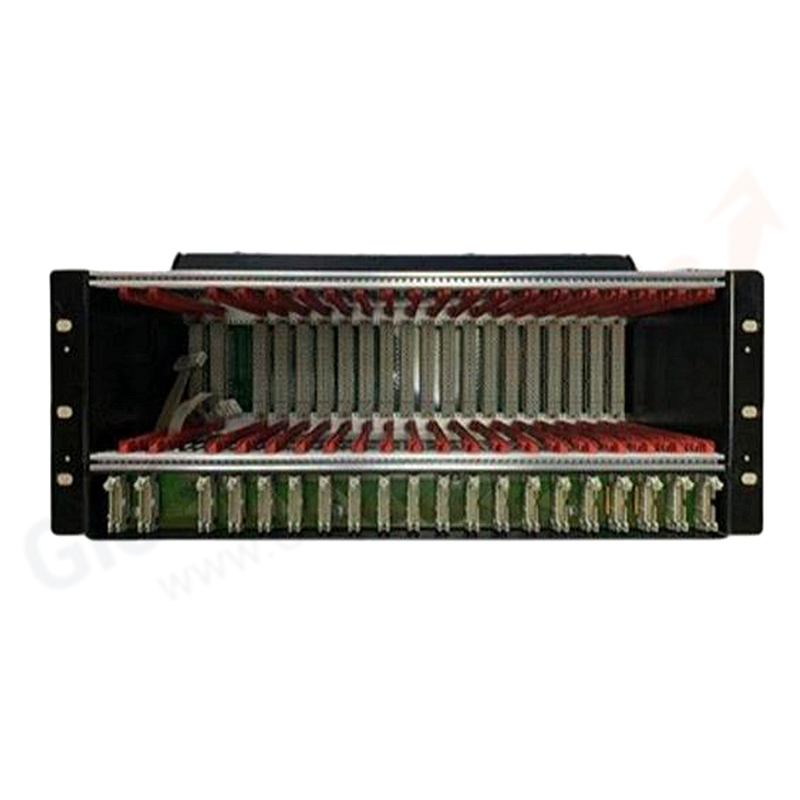

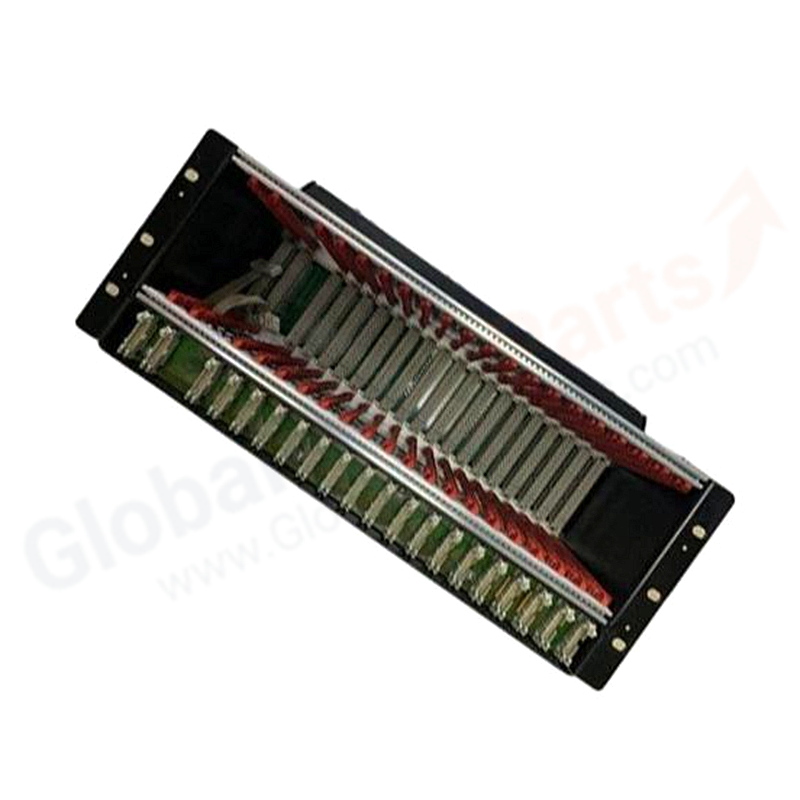

The Honeywell FC-IOCHAS-0001S is a 19-inch non-redundant I/O chassis designed for Honeywell Safety Manager systems. It provides housing for up to 18 I/O modules in a single, cost-effective chassis configuration ideal for applications where redundancy is not required. The chassis features a modular, compact design with organized slot configuration and integrated cable management for streamlined installation and maintenance.

Key Features

• 18 I/O Module Slots: Supports up to 18 non-redundant I/O modules (Slots 1–18)
• 21 Total Slots: Slot 19 reserved; Slot 21 houses IO-0001 extender module
• Standard 19-Inch Rack: Fits standard industrial cabinets with minimal footprint
• Removable Covers: Front and back covers swing open for easy access to flat cables and modules
• Integrated Cable Management: Rear clamps and cover plates for organized cable routing
• High Compatibility: Seamlessly integrates with Honeywell Safety Manager I/O modules

Technical Specifications

• Model: FC-IOCHAS-0001S (also FS-IOCHAS-0001S)
• Type: Non-Redundant I/O Chassis
• Dimensions (W × D × H): 482.6 mm × 280 mm × 222.4 mm (19 × 11 × 8.75 in)
• Height: 5 HE (44.5 + 133.4 + 44.5 mm)
• Weight: ~8.5 kg (18.7 lbs)
• Slot Configuration: 21 slots, each 4TE wide; Slots 1–18 for I/O; Slot 19 reserved; Slot 21 for IO-0001
• Power Consumption: 5V-R: 35 mA (Slot 21 – IO-0001)
• Approvals: CE, UL, CSA, TÜV, FM

Installation Guide

1. Mounting: Install in standard 19-inch rack below the CP chassis (FC-CPCHAS-0001)
2. Slot Planning: Assign I/O modules to Slots 1–18; leave Slot 19 empty; install IO-0001 in Slot 21
3. Module Insertion: Insert modules front-to-back; secure with screws; connect flat cables to horizontal IO bus
4. Cable Management: Route flat cables through rear clamps; use tie-wraps for power and signal cables
5. Cover Installation: Swing front cover down and lock; secure back cover plate with half-turn screws

FAQ

Q: How many I/O modules can this chassis hold?
A: Up to 18 I/O modules in Slots 1–18. Slot 19 is reserved and cannot be used.

Q: Is this chassis suitable for redundant I/O configurations?
A: No. For redundant I/O, use the FC-IOCHAS-0001R chassis which supports 9 pairs of redundant modules.

Q: What is the IO-0001 module in Slot 21?
A: The IO-0001 is an I/O extender module that provides the interface between the I/O chassis and the Control Processor chassis.

Selection Tips

• Choose FC-IOCHAS-0001S for cost-sensitive, non-redundant safety applications
• Ensure sufficient cabinet depth (≥280 mm) for proper cable routing
• Plan I/O module placement to minimize flat cable length and interference
