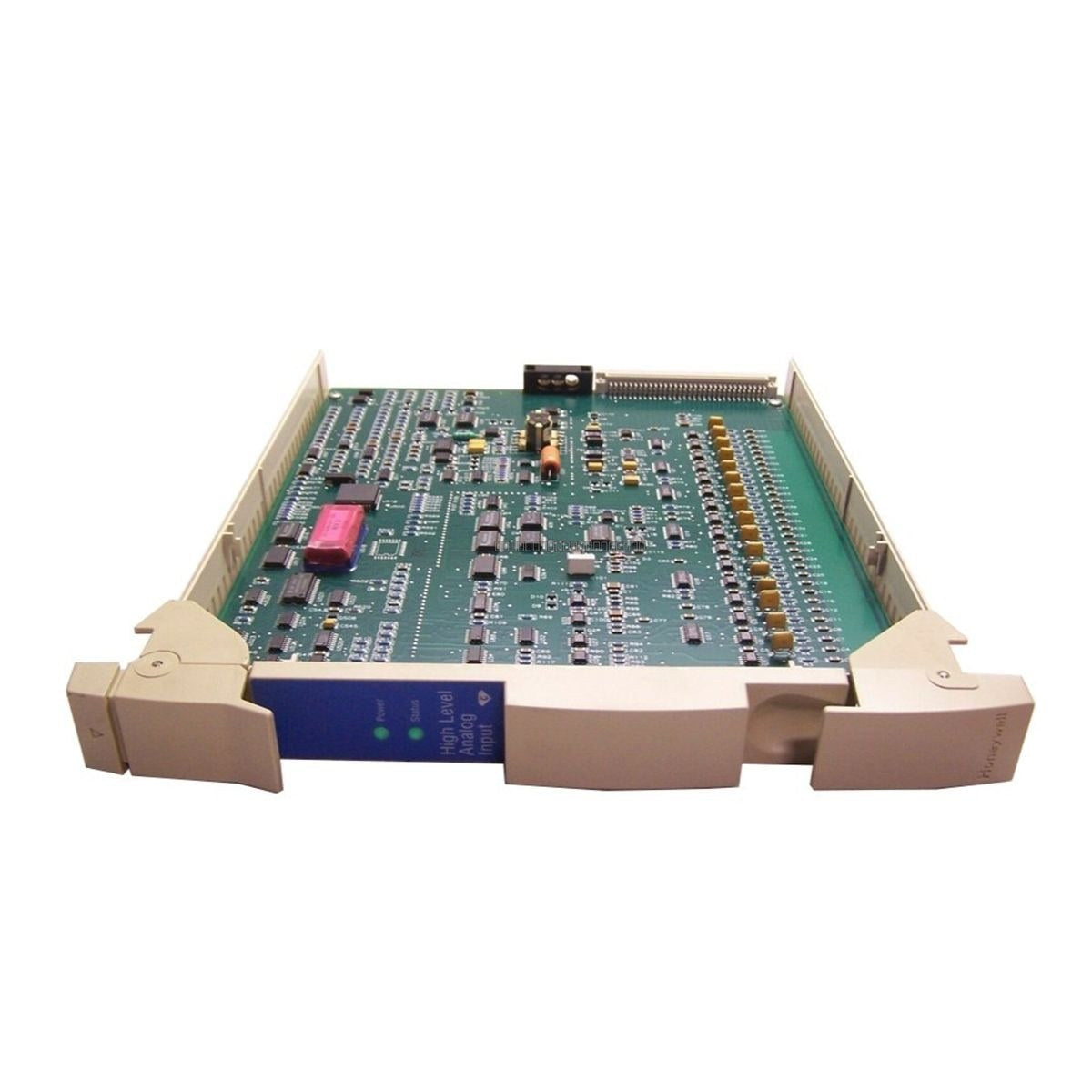

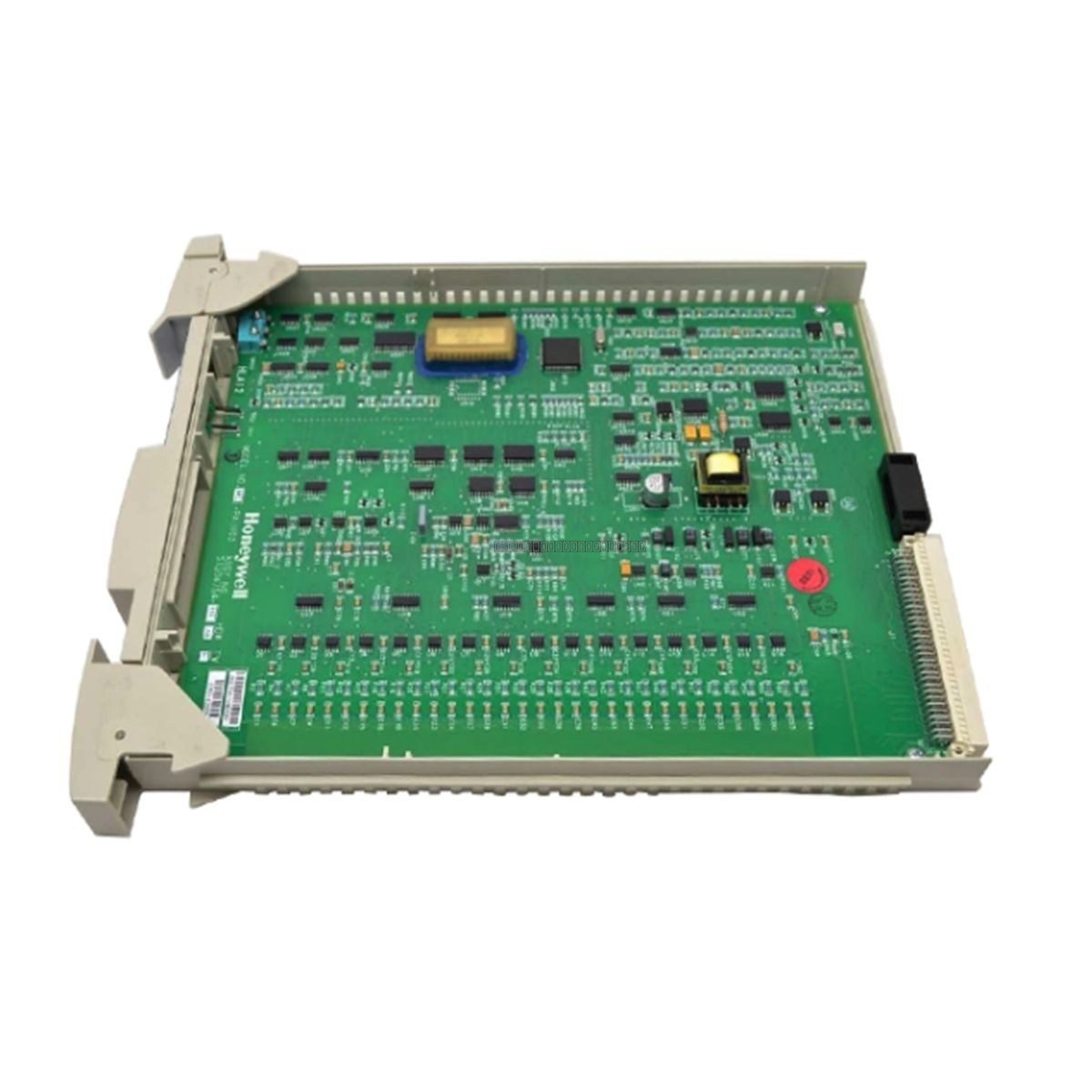

Honeywell MC-PAIH03 51304754-150 Analog Input Module

Description

The Honeywell MC-PAIH03 (51304754-150) is a high-performance analog input module designed for use within the Honeywell FSC (Fail Safe Controller) system. This module provides reliable signal acquisition for industrial control applications, converting high-level analog signals into digital data for processing by the controller. It is engineered to meet the stringent requirements of safety-critical environments, ensuring accuracy and stability in process monitoring.

Features

• 16-point analog input capacity for high-density signal monitoring.
• High-level analog input processing for industrial sensors and transmitters.
• Integrated LED indicators for real-time status and diagnostic monitoring.
• Robust design suitable for demanding industrial environments.
• Optimized for low power consumption within the control cabinet.

Technical Specifications

Installation Guidelines

• Ensure the system is powered down before installing or removing the module from the rack.
• Handle the module using proper ESD (Electrostatic Discharge) protection practices to prevent damage to internal circuitry.
• Verify that the module is securely seated in the designated slot to ensure proper backplane connectivity.
• Use shielded cables for all analog input signals to minimize interference from high-EMI sources.
• Ensure adequate ventilation within the control cabinet to maintain operating temperatures within the specified range.
• Check that the 24 V DC power supply is stable and correctly wired to the module terminals.

FAQ

What is the primary function of the MC-PAIH03?

The MC-PAIH03 is an analog input module used in Honeywell FSC systems to interface with high-level analog field devices, providing 16 channels of signal conversion for process control and safety monitoring.

Is this module compatible with standard 0-20 mA signals?

Yes, the module is designed to accept 0-20 mA analog inputs with 16-bit resolution, making it suitable for standard industrial instrumentation.
