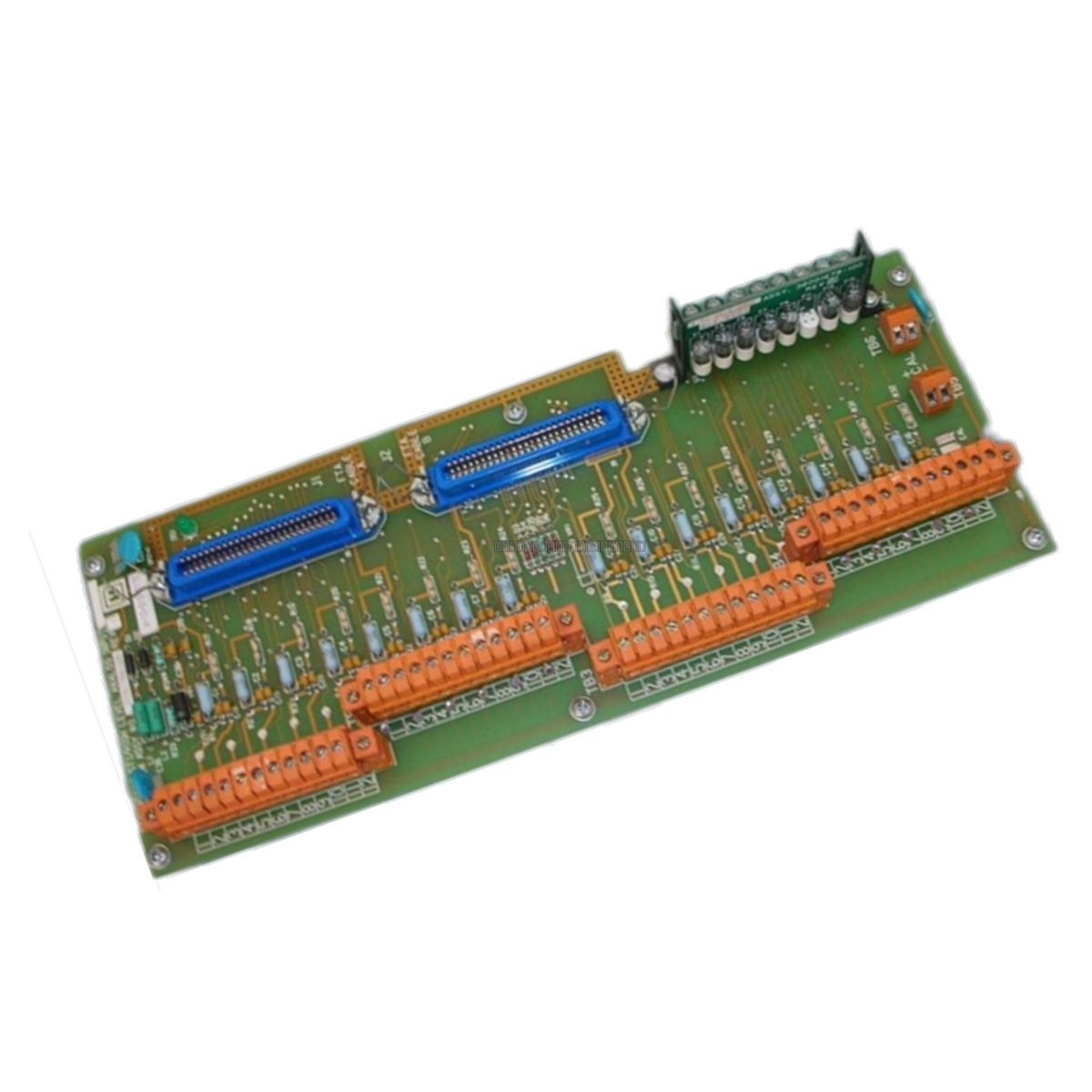

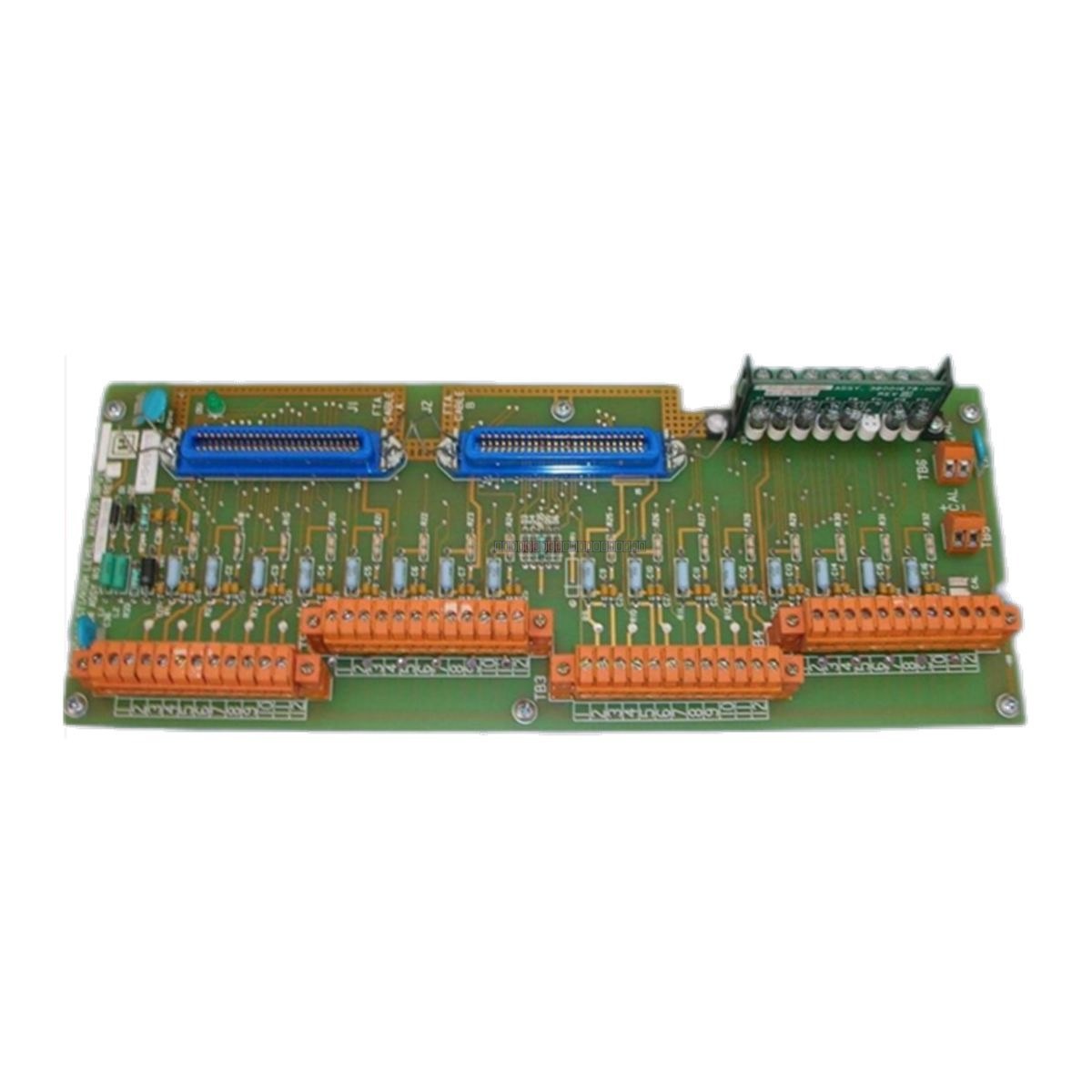

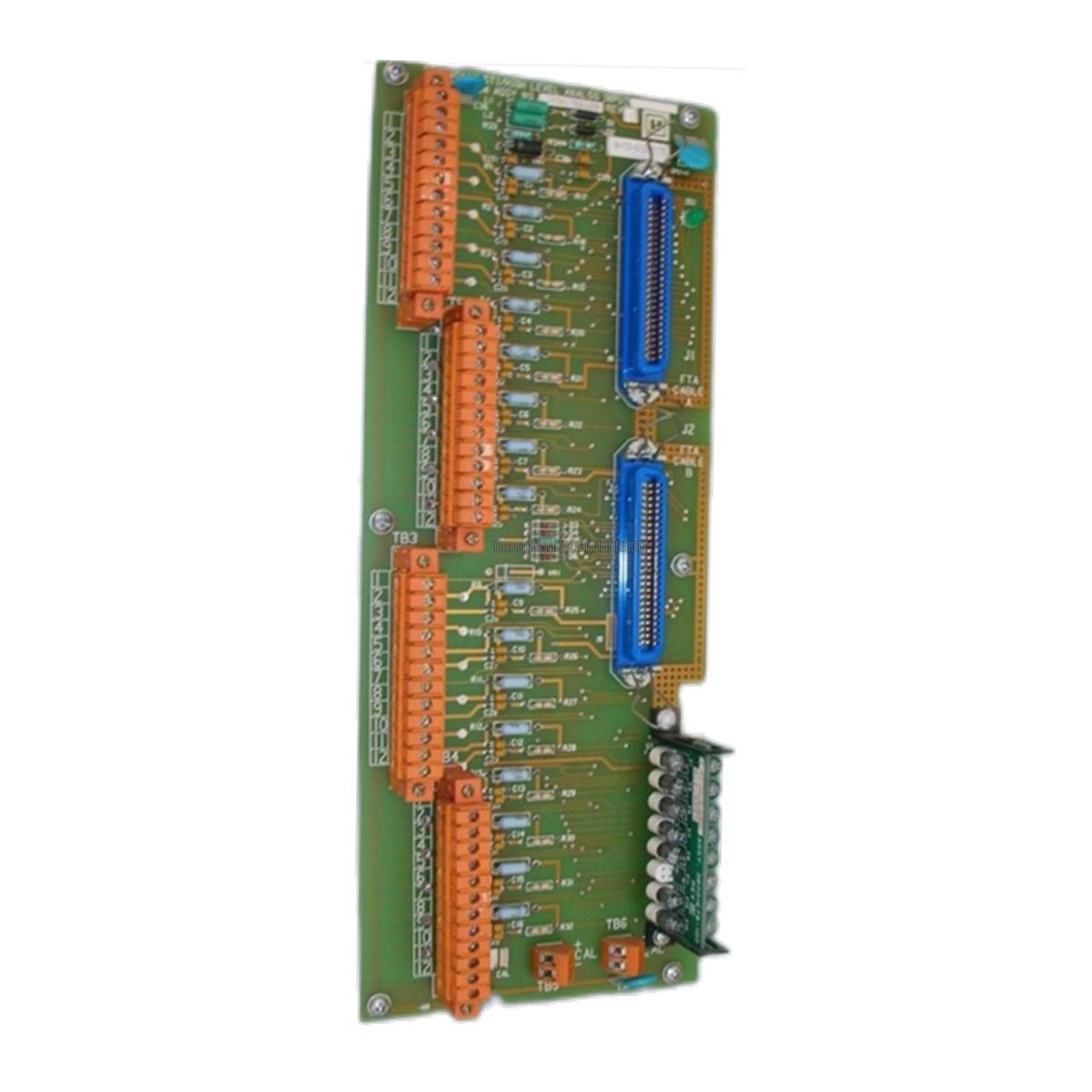

Honeywell MU-TAIH62 Enhanced Power High Level Analog Input STI FTA

Description

The Honeywell MU-TAIH62 (MU TAIH62) is an Enhanced Power High Level Analog Input and Smart Transmitter Interface (STI) Field Termination Assembly (FTA). This module is engineered for 16-channel industrial signal acquisition within distributed control systems, providing a robust electrical interface between field instrumentation and the control system I/O subsystem. The enhanced power design ensures stable field loop energization and superior signal integrity, making it suitable for demanding process environments including power generation, refineries, and offshore platforms.

Features

• 16-channel high-level analog input capacity.
• Integrated Smart Transmitter Interface (STI) for intelligent field device communication.
• Enhanced power distribution architecture for improved loop stability.
• Passive termination circuitry designed to minimize fault propagation.
• Optimized for high-availability control systems and safety-related instrumentation loops.

Applications

The MU-TAIH62 is utilized in critical process control applications where signal accuracy and continuous operation are mandatory. Typical deployments include:

• Process monitoring and control in refinery units.
• Instrumentation loops in power generation facilities.
• Signal acquisition for offshore oil and gas platforms.
• Heavy process industry automation requiring high-integrity analog signal processing.

Technical Specifications

Installation Guidelines

• Ensure the control system is powered down before installing or removing the FTA to prevent electrical damage.
• Mount the module in a clean, dry environment, ensuring adequate clearance for heat dissipation.
• Use shielded cabling for all field inputs to minimize electromagnetic interference (EMI) in noisy industrial environments.
• Verify proper grounding of the FTA chassis to the system common ground to maintain signal integrity.
• Follow standard ESD (Electrostatic Discharge) handling procedures when touching internal circuitry or connectors.
• Ensure all field wiring is securely terminated and checked for correct polarity before applying loop power.

FAQ

What is the primary function of the MU-TAIH62?

The MU-TAIH62 serves as a field termination assembly that bridges field-mounted analog sensors and transmitters to the control system's analog input processing layer, providing enhanced power and signal conditioning.

Does this module support intelligent field devices?

Yes, the MU-TAIH62 includes Smart Transmitter Interface (STI) functionality, allowing it to support intelligent field devices that provide diagnostic data alongside standard process variables.

Can this module be used in redundant systems?

Yes, the FTA is designed for use in high-availability architectures, supporting system-level redundancy configurations to ensure continuous operation.
