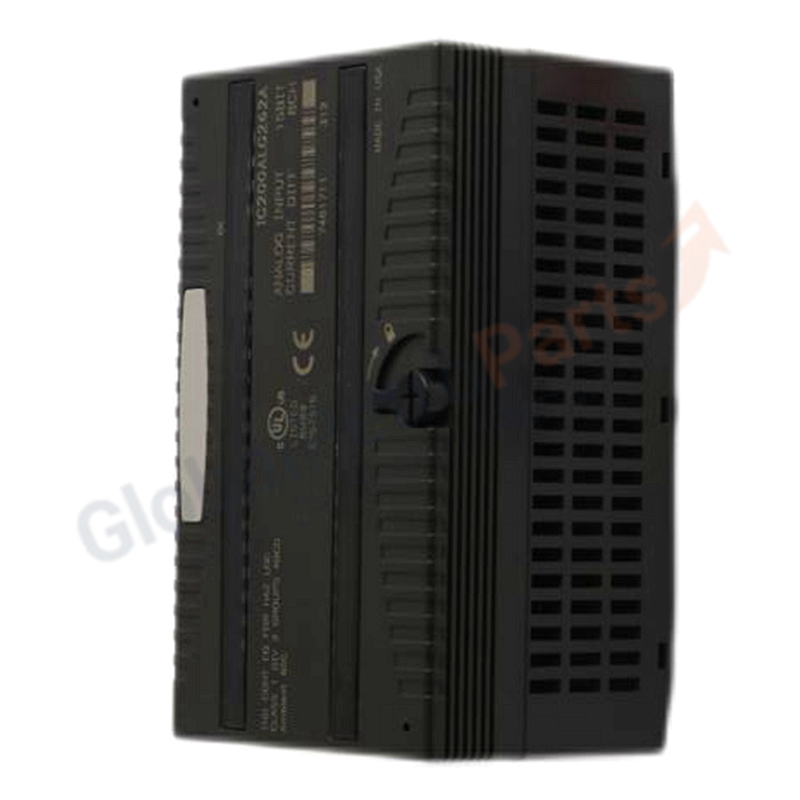

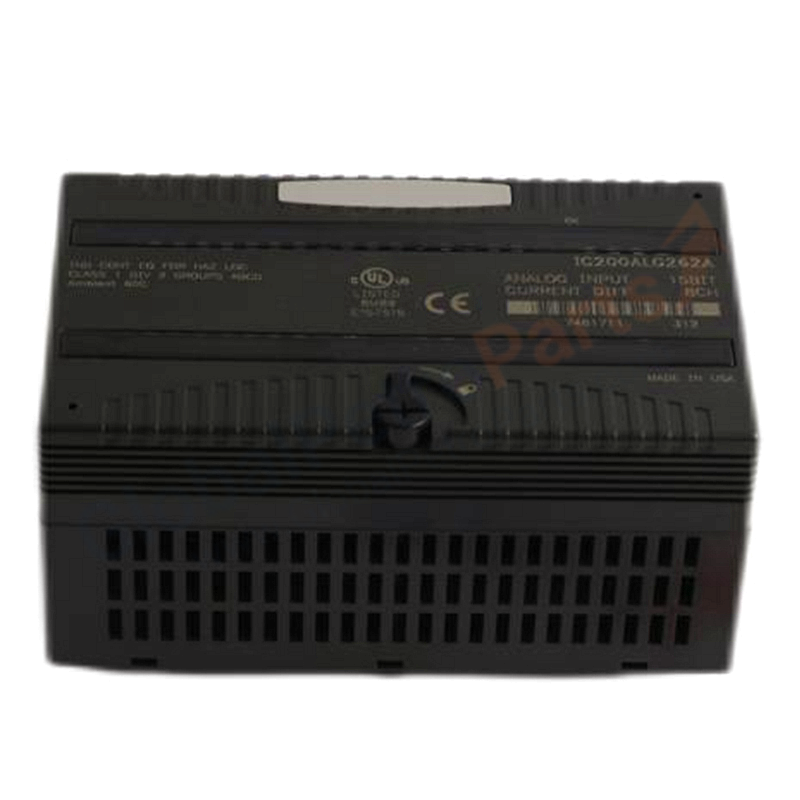

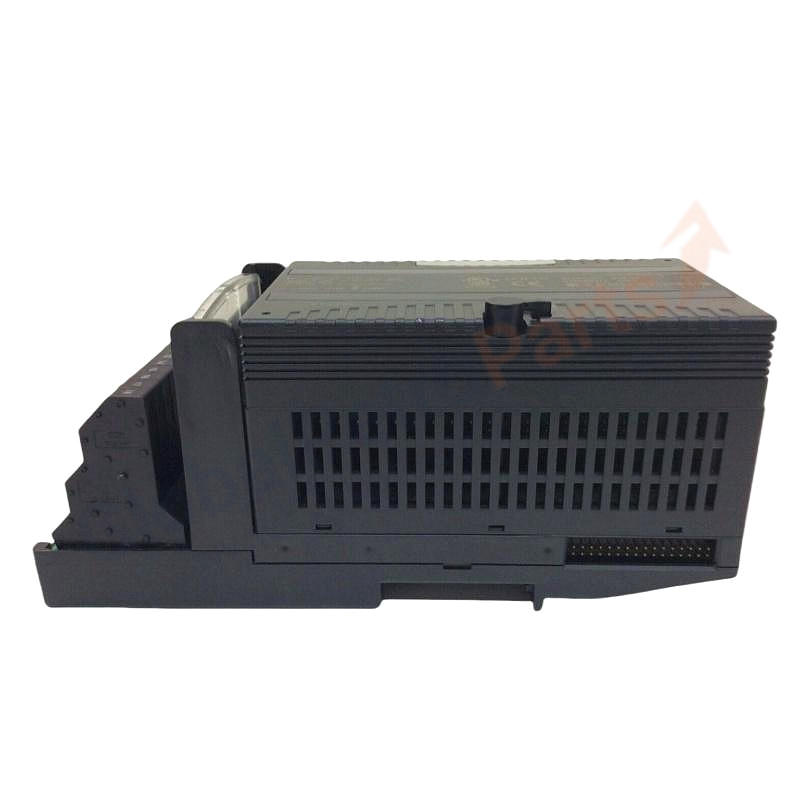

IC200ALG262 | GE VersaMax Analog Input Module 15-channel

Product Summary

The IC200ALG262 is a VersaMax 15-channel analog input module. It provides 15 differential or 30 single-ended 4–20 mA analog input channels for the VersaMax I/O system.

Core Specifications

• Model Number: IC200ALG262
• Module Type: 15-Channel Analog Input Module (Current)
• Compatible System: VersaMax I/O and Micro PLC platforms
• Input Channels: 15 differential or 30 single-ended
• Input Range: 4–20 mA
• Resolution: 15 bits (plus sign bit)

Electrical Characteristics

• Input Impedance: Low impedance suitable for current loop inputs
• Update Rate: Configurable per channel or module
• Isolation: Channel-to-channel and channel-to-backplane isolation
• Backplane Current: Specified in VersaMax power budget calculations

Installation Guide

1. Install the module on a VersaMax carrier or baseplate in the desired I/O slot.
2. Connect field wiring to the removable terminal block (observe polarity and loop power requirements for 4–20 mA inputs).
3. Configure the module using VersaMax programming software for input ranges and scaling.
4. Verify operation through module status LEDs and diagnostic tools.

Selection Guidelines

• Select IC200ALG262 for high-density 4–20 mA analog current input applications.
• For voltage inputs, refer to IC200ALG26x series voltage input modules (e.g., IC200ALG265).
• Ensure the VersaMax power supply and carrier configuration supports the module’s backplane current draw.
