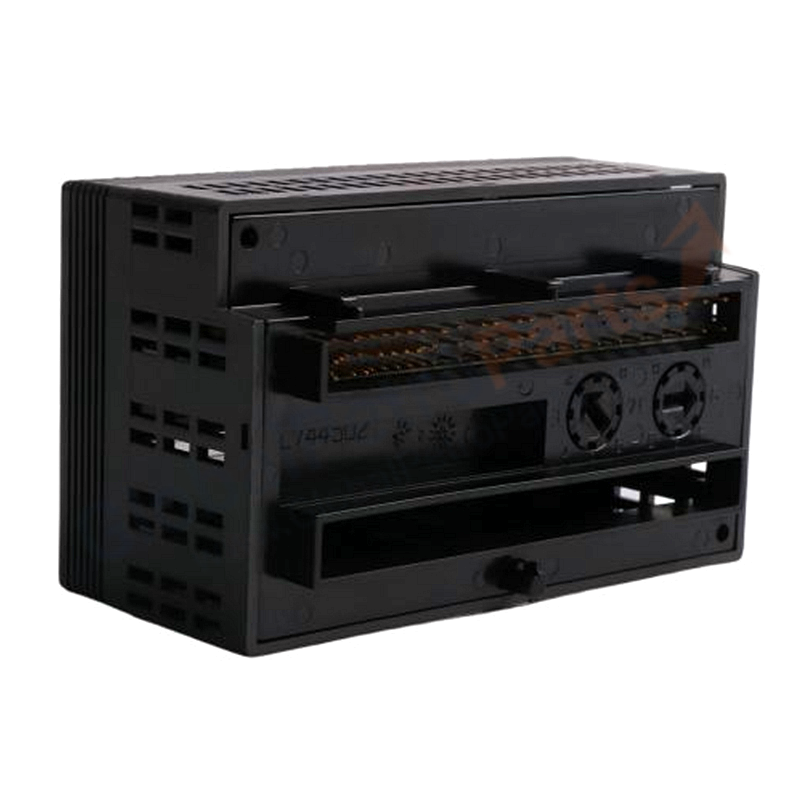

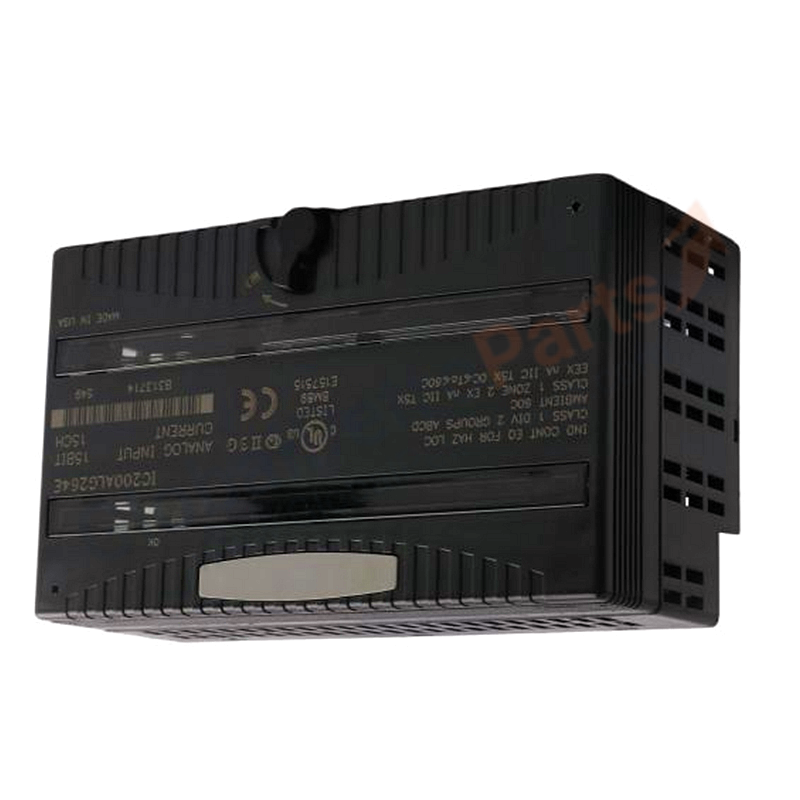

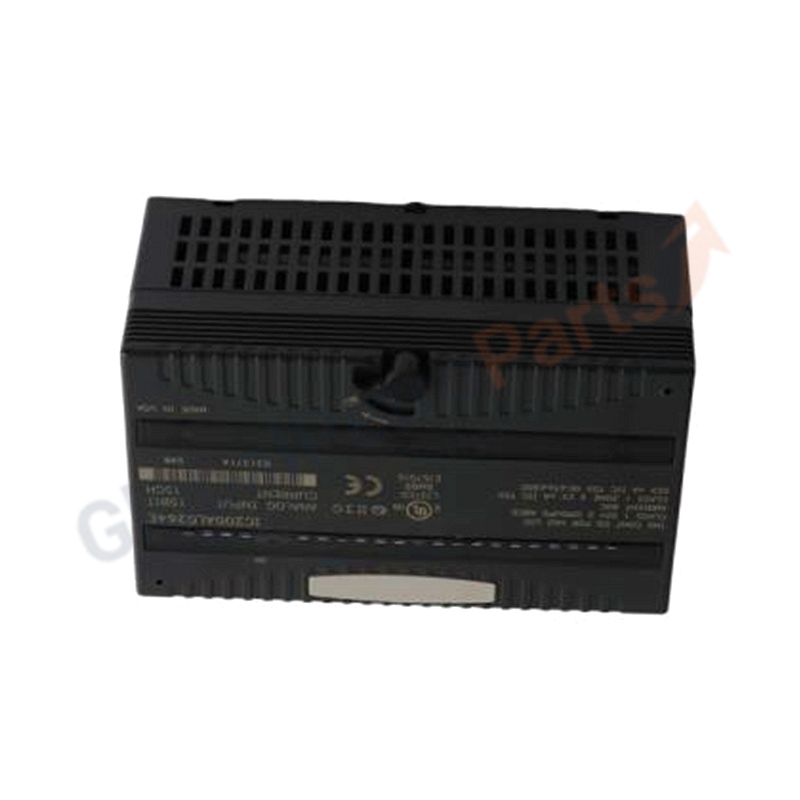

IC200ALG264 | GE VersaMax | 15-Point Analog Current Input Module

Product Summary

The GE Fanuc IC200ALG264 is a VersaMax 15-Channel Analog Input Module with 13-bit resolution. It accepts 0–10VDC or ±10VDC voltage inputs and converts them to digital values for the PLC, enabling precise measurement of process variables from voltage-output sensors and transmitters.

Core Specifications

• Model Number: IC200ALG264
• Type: 15-Channel Analog Voltage Input Module
• Channels: 15 single-ended or 8 differential
• Input Range: 0–10VDC or ±10VDC (jumper-selectable)
• Resolution: 13 bits
• Accuracy: ±0.3% of full scale @ 25°C
• Input Impedance: >100 kΩ
• Update Rate: 15 ms typical (all channels)
• Isolation: 250VAC continuous, field-to-backplane
• Backplane Power: 5VDC, 100mA; 3.3VDC, 75mA
• Manufacturer: GE Fanuc / Emerson

Key Features

• 15-channel high-density voltage input
• Jumper-selectable 0–10V or ±10V range per channel group
• 13-bit resolution for precise measurement
• Removable terminal block for easy wiring

Environmental Limits

• Operating Temperature: -20°C to +60°C
• Humidity: 5% to 95% RH, non-condensing

Frequently Asked Questions

What is the IC200ALG264 used for?

It acquires 0–10V or ±10V voltage signals from sensors and transmitters for VersaMax PLC systems.

Can I mix 0–10V and ±10V on the same module?

Yes — range is selectable per channel group via jumpers, not per individual channel.

What is the difference between IC200ALG264 and IC200ALG260?

IC200ALG264 is voltage input (0–10V/±10V). IC200ALG260 is current input (4–20mA).

Installation Guide

Step-by-Step

1. Power down the I/O rack
2. Set range jumpers for 0–10V or ±10V per channel group
3. Insert module into VersaMax backplane
4. Attach terminal block and wire voltage signals
5. Power up and verify LEDs

Related Part Numbers

• IC200ALG260 — 15-Channel 4–20mA Analog Input
• IC200ALG264 — 15-Channel 0–10V/±10V Analog Input (this part)
• IC200ALG320 — 4-Channel 12-Bit Analog Output
• IC200ALG331 — 4-Channel 12-Bit Analog Output, ±10V/4–20mA
