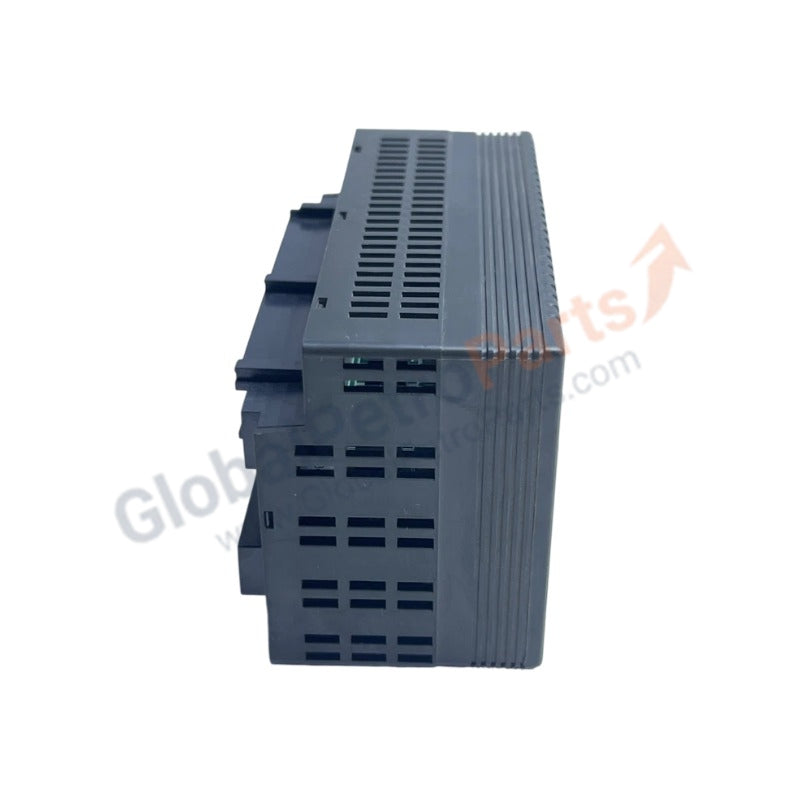

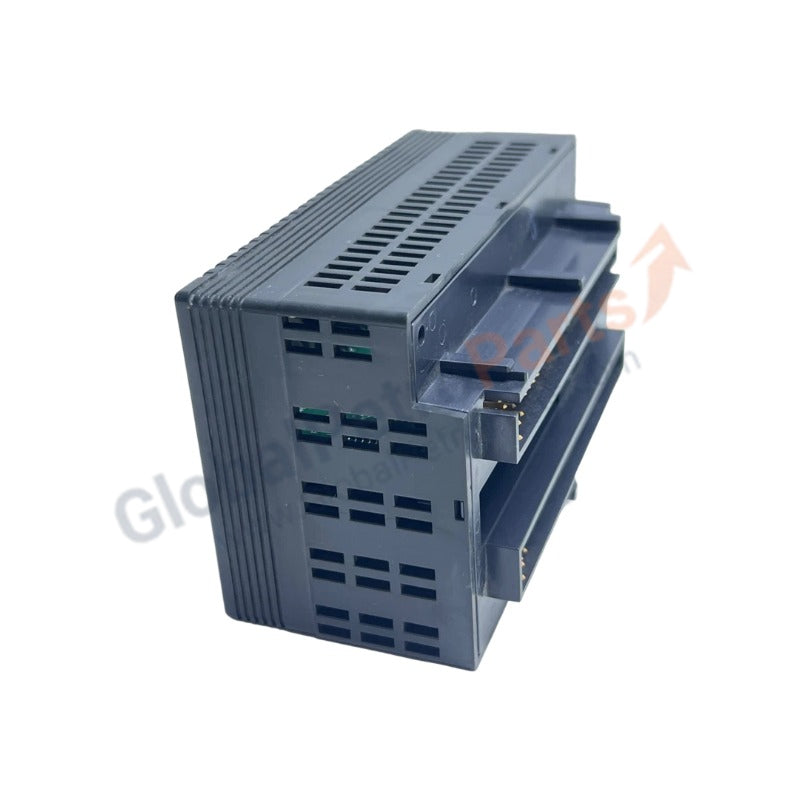

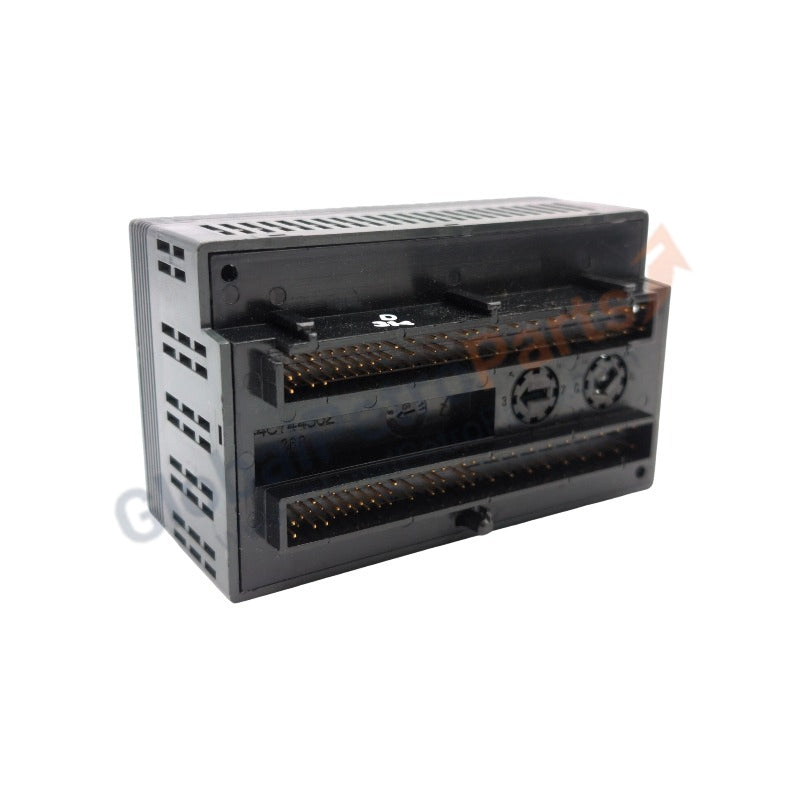

IC200ALG620 GE VersaMax Analog Input Modules

Configured for high-accuracy temperature signal digitization in VersaMax control nodes, the GE IC200ALG620 (IC200ALG620 RTD Input Module) provides direct physical/electrical execution. The module interfaces directly with resistive field sensors to acquire analog thermal fluctuations, executing real-time resistance-to-digital conversions. It processes variations across external Pt100, Pt200, Ni100, or Ni120 sensing loops, digitizing physical ohmic values into structured binary words to update the controller register table during each backplane scanning sequence.

Hardware Specifications

I/O Density Scaling

The module handles thermal signal conversion arrays across four isolated paths, maintaining the station architecture within standard hardware layout bounds. This localized topology matches system guidelines for scaling I/O density options over the terminal carrier frame, preventing thermal heat buildup or signal distortion across neighboring slots. Active firmware flash compatibility inside the product series secures consistent conversion filtering coefficients, eliminating backplane synchronization latencies when mixed with discrete modules on the same station line.

Frequently Asked Questions

Q: Can the IC200ALG620 input module be removed or inserted while the backplane rail is energized?

A: No, hot-swapping this hardware component during active operations is prohibited. Disconnecting the module from a live carrier assembly will disrupt backplane bus communication velocity and may cause terminal electrical breakdown.

Q: How does the component manage an open wire or disconnected field sensor fault?

A: The module continuously monitors loop integrity; upon detecting an open sensor path, it flags a high-scale or low-scale error value in the diagnostic data register and changes the status of the local LED matrix.

Q: Are 2-wire, 3-wire, and 4-wire RTD configurations accommodated by the input terminals?

A: Yes, individual channel terminals can be wired for 2-wire, 3-wire, or 4-wire resistance elements, provided the proper hardware parameters are configured in the engineering configuration workspace.

Field Installation Guidelines

Mount the hardware vertically onto a level 35 mm DIN-rail assembly utilizing the compatible VersaMax terminal carrier block. Maintain an unblocked boundary clearance of at least 50 mm above, below, and beside the enclosure vents to permit continuous natural airflow for internal component cooling. Route all sensor input cables through separate, grounded wireways isolated from high-voltage AC lines or motor driver cabling. Connect the overall cable shields directly to an external instrument earth bar within the local panel enclosure, verifying low-impedance metallic continuity to prevent common-mode noise corruption.
