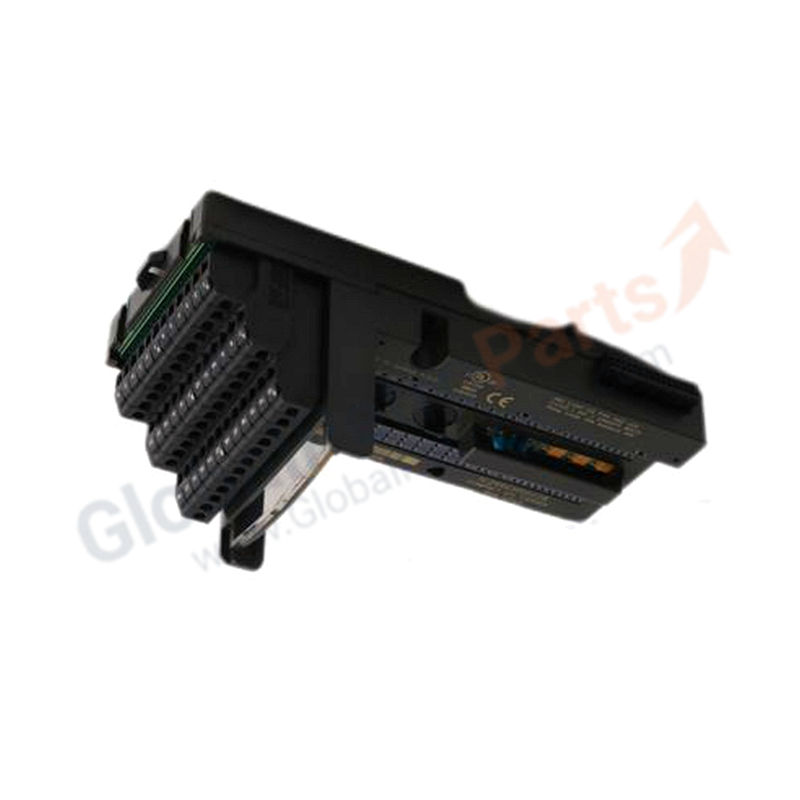

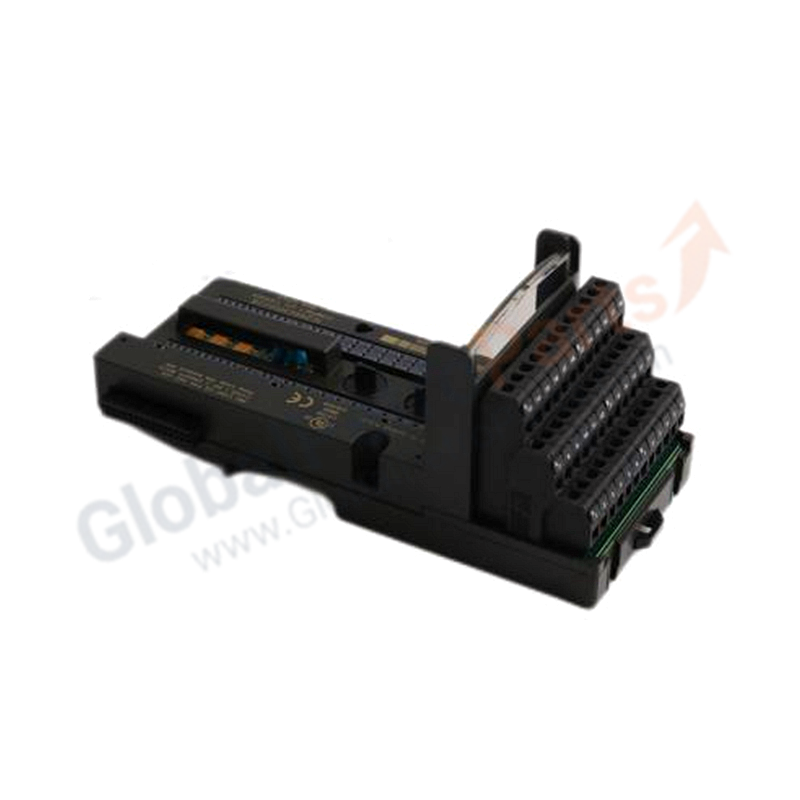

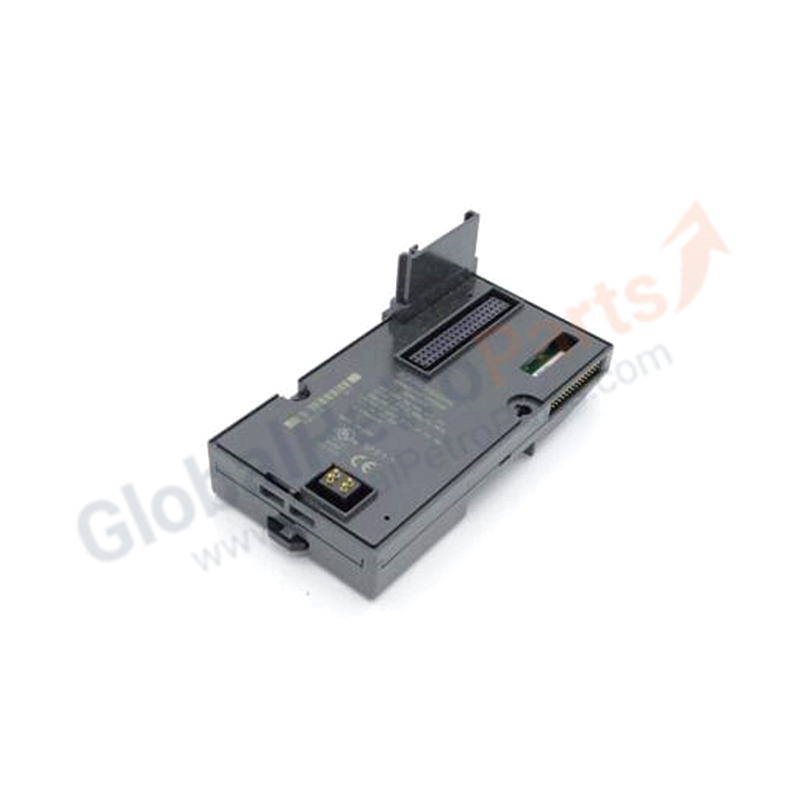

IC200CH003 | GE VersaMax | I/O Carrier Module

Product Summary

The GE Fanuc IC200CH003 is a VersaMax I/O Carrier Module with 3 expansion slots. It serves as the mounting base for VersaMax I/O modules, providing backplane communication and power distribution in distributed I/O applications.

Core Specifications

• Model Number: IC200CH003
• Type: I/O Carrier Module
• Slots: 3 I/O module positions
• Function: Backplane communication and power distribution
• Mounting: DIN rail
• Manufacturer: GE Fanuc / Emerson

Key Features

• 3-slot carrier for VersaMax I/O modules
• DIN rail mounting for flexible installation
• Integrated backplane eliminates separate cables
• Supports mixed I/O configurations

Environmental Limits

• Operating Temperature: -20°C to +60°C
• Humidity: 5% to 95% RH, non-condensing

Frequently Asked Questions

What is the IC200CH003 used for?

It is a 3-slot mounting base for VersaMax I/O modules, providing backplane communication and power.

How many modules can I install?

3 I/O modules per carrier.

What is the difference between IC200CH003 and IC200CH006?

IC200CH003 has 3 slots. IC200CH006 has 6 slots.

Installation Guide

Step-by-Step

1. Mount carrier on DIN rail
2. Insert I/O modules into slots
3. Connect power and communication cables
4. Verify module seating and LEDs

Related Part Numbers

• IC200CH002 — 2-Slot I/O Carrier
• IC200CH003 — 3-Slot I/O Carrier (this part)
• IC200CH006 — 6-Slot I/O Carrier
• IC200CHS022 — 2-Slot I/O Carrier with Interposing Terminals
