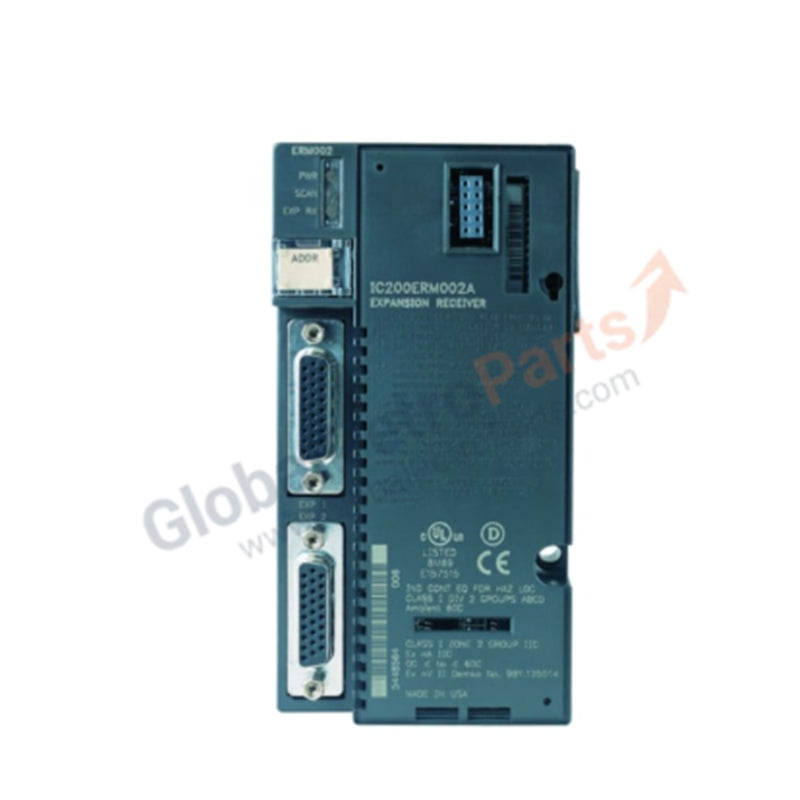

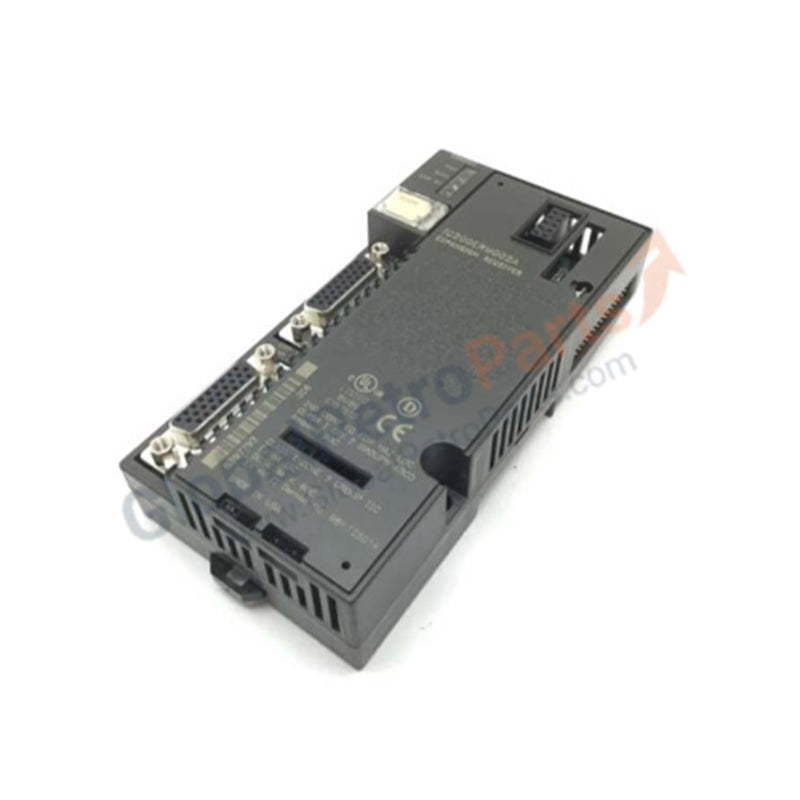

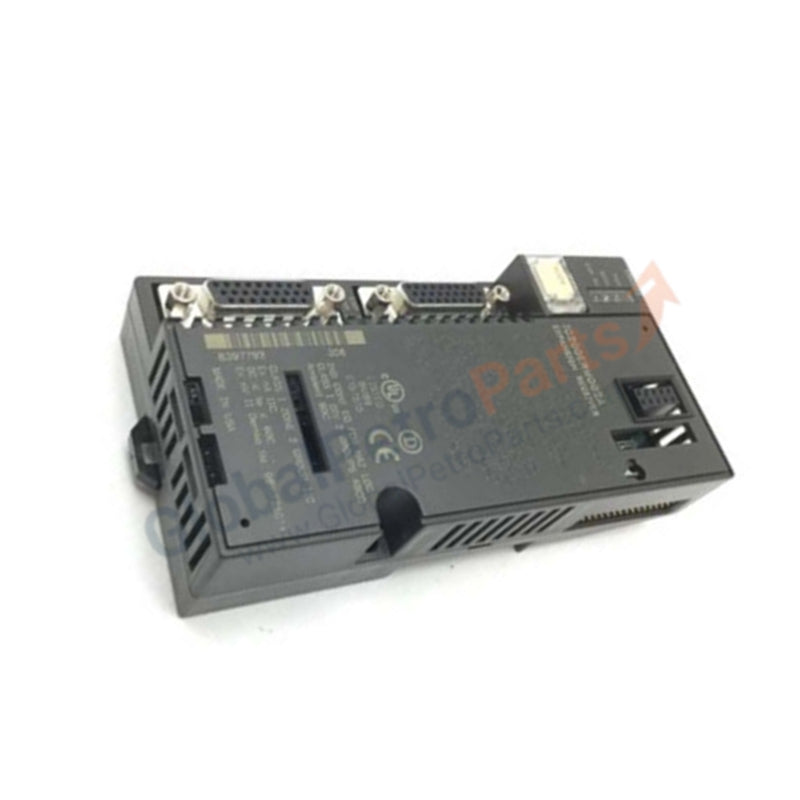

IC200ERMO02 | GE Fanuc | VersaMax Non-Isolated Expansion Receiver Module

Product Description

The GE Fanuc VersaMax IC200ERMO02 is a non-isolated expansion receiver module designed to extend the functionality of VersaMax PLCs and I/O stations. It supports multiple groups and modules, enabling scalable system configurations. With dual expansion ports, LED indicators, and flexible cable length options, this module ensures reliable communication and efficient integration in distributed control environments.

Technical Specifications

• Manufacturer: GE Automation and Controls

• Model / Part Number: IC200ERMO02

• Product Line: VersaMax

• Product Type: Expansion Receiver Module

• Weight: 2.00 lbs (0.91 kg)

• Expansion Capacity:

• Supports up to 7 groups

• Maximum of 8 modules per group

• Power Supply: Requires installed power supply for connected modules; additional boosters can be used if needed

• Ports: Two 26-pin female D-shell connectors

• Top port: inbound cable

• Bottom port: daisy-chaining or terminator connection

• LED Indicators: Three onboard LEDs for device status monitoring

• Dimensions:

• Width: 2.63 in (66.8 mm)

• Height: 5.04 in (128 mm)

• Cable Length:

• Multi-rack system: up to 15 m (50 ft)

• Single-ended system: up to 1 m (3.3 ft)

• Data Transfer Rates: 5 Mbps or 2.765 Mbps depending on configuration

• Backplane Current Consumption:

• 5 V: 70 mA

• 3.3 V: 20 mA

• Mounting: DIN rail

Application Scenarios

The IC200ERMO02 is ideal for expanding VersaMax PLC systems in industrial automation environments. It is commonly used in distributed control networks, machine automation, and process monitoring applications requiring scalable I/O expansion.

FAQ

Q: How many groups and modules can the IC200ERMO02 support?  A: Up to 7 groups, with a maximum of 8 modules per group.

Q: What cable length is supported?  A: Up to 15 meters in multi-rack systems and 1 meter in single-ended systems.

Q: Does the module require a power supply?  A: Yes, it must be connected to the main power supply, with optional boosters if needed.
