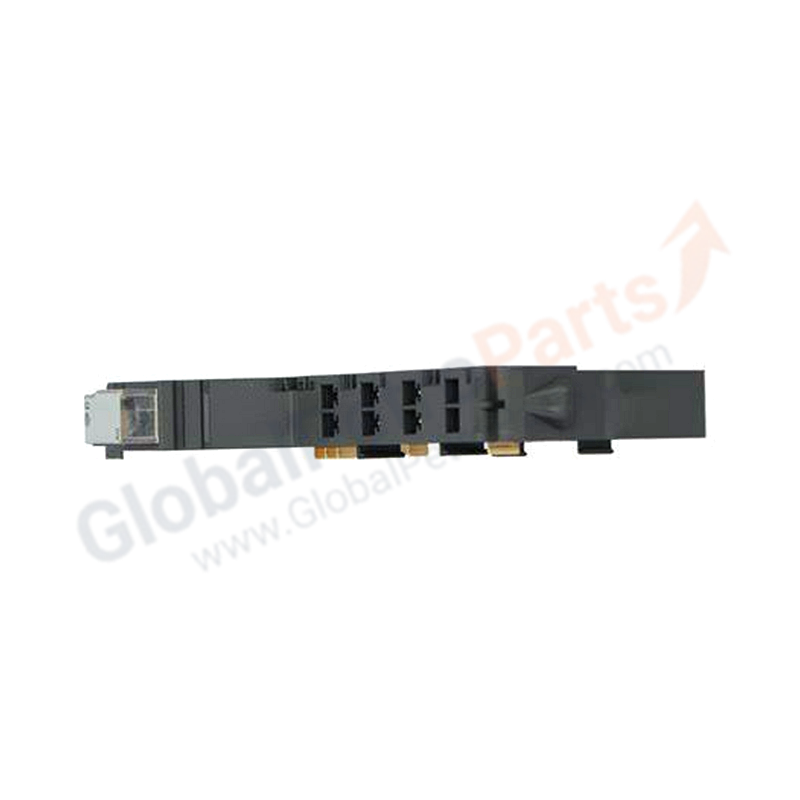

IC220ALG220 | GE VersaMax Analog Input Module

Product Summary

The IC220ALG220 is a VersaMax Nano 4-channel analog input module. It provides 4 differential or 8 single-ended voltage or current analog input channels for compact VersaMax Nano and Micro PLC systems.

Core Specifications

• Model Number: IC220ALG220
• Module Type: 4-Channel Analog Input Module (Voltage/Current)
• Compatible System: VersaMax Nano/Micro PLC platforms
• Input Channels: 4 differential or 8 single-ended
• Input Ranges: Configurable 0–10 VDC, ±10 VDC, 0–20 mA, or 4–20 mA
• Resolution: 12 bits or 15 bits depending on range and configuration

Electrical Characteristics

• Update Rate: Fast scan compatible with Nano/Micro cycle times
• Isolation: Channel-to-channel and channel-to-backplane isolation
• Backplane Current: Low power consumption suitable for compact systems

Installation Guide

1. Mount the module on the VersaMax Nano or Micro baseplate.
2. Connect field wiring to the integrated terminal block, selecting voltage or current mode as required.
3. Configure channel ranges and scaling using the programming software.
4. Verify operation through module diagnostics and status indicators.

Selection Guidelines

• Use IC220ALG220 for compact applications requiring mixed voltage/current analog inputs with limited point count.
• For higher channel density, consider VersaMax standard analog modules (IC200ALG series).
• Ensure compatibility with the specific VersaMax Nano/Micro CPU model and power budget.
