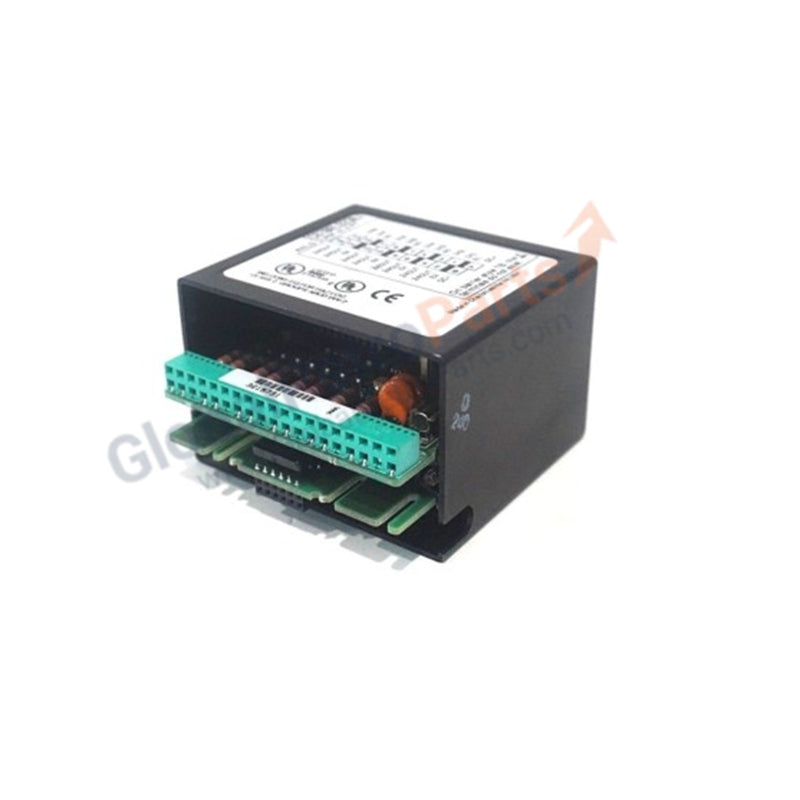

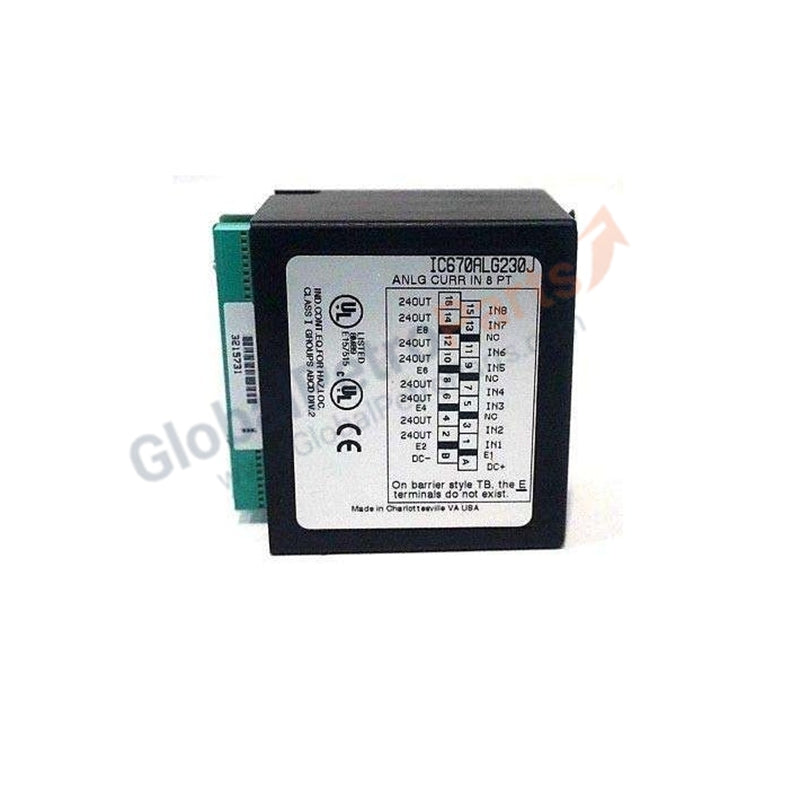

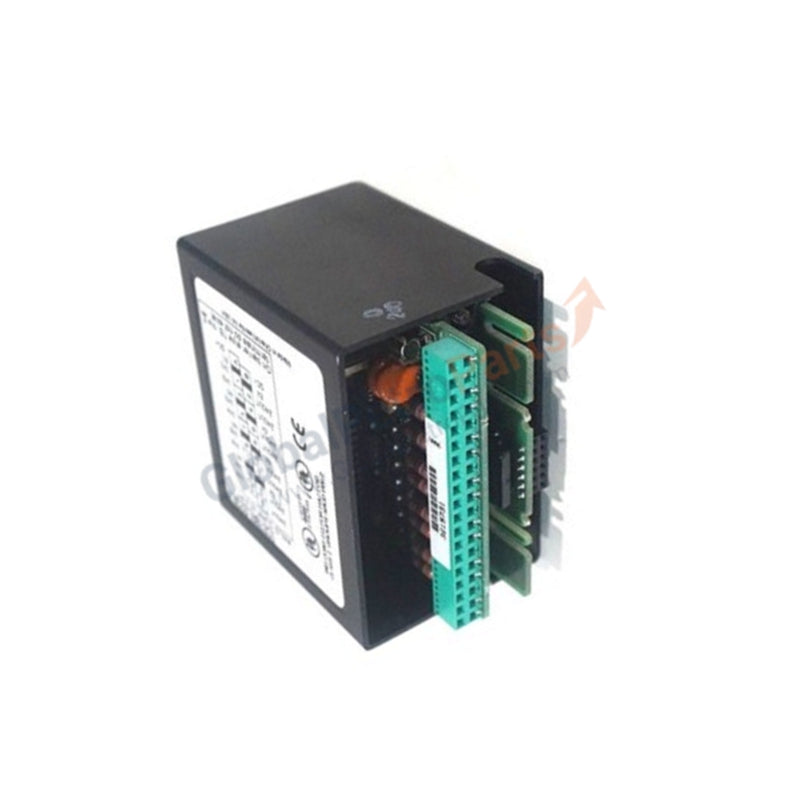

GE Fanuc IC670ALG230 Field Control 8-Channel Analog Current Input Module

The IC670ALG230 (Model: IC670ALG230) is a high-accuracy analog input module within the GE Fanuc Field Control I/O series. Designed for high-speed signal acquisition, this module provides eight (8) single-ended channels specifically optimized for current source inputs. The IC670ALG230 (Part Number: IC670ALG230) converts nominal 0–20 mA or 4–20 mA field signals into 12-bit digital values, enabling precise monitoring of sensors, transmitters, and process instruments across a distributed Genius Bus network.

Engineered for reliability in industrial environments, the IC670ALG230 (Model: IC670ALG230) offers significant electrical protection, including 1500 VAC isolation between field inputs and the internal logic. With a fast conversion rate of 60 microseconds per channel and a low non-linearity error of ±0.025%, this module is ideal for applications requiring stable, real-time data in manufacturing and power utility sectors. Although discontinued by the manufacturer, it remains a critical component for maintaining the Expertise and Trustworthiness (E-E-A-T) of existing Field Control architectures.

Detailed Technical Specifications

The IC670ALG230 (Part Number: IC670ALG230) provides robust analog-to-digital conversion with high thermal stability.
