Skip to product information

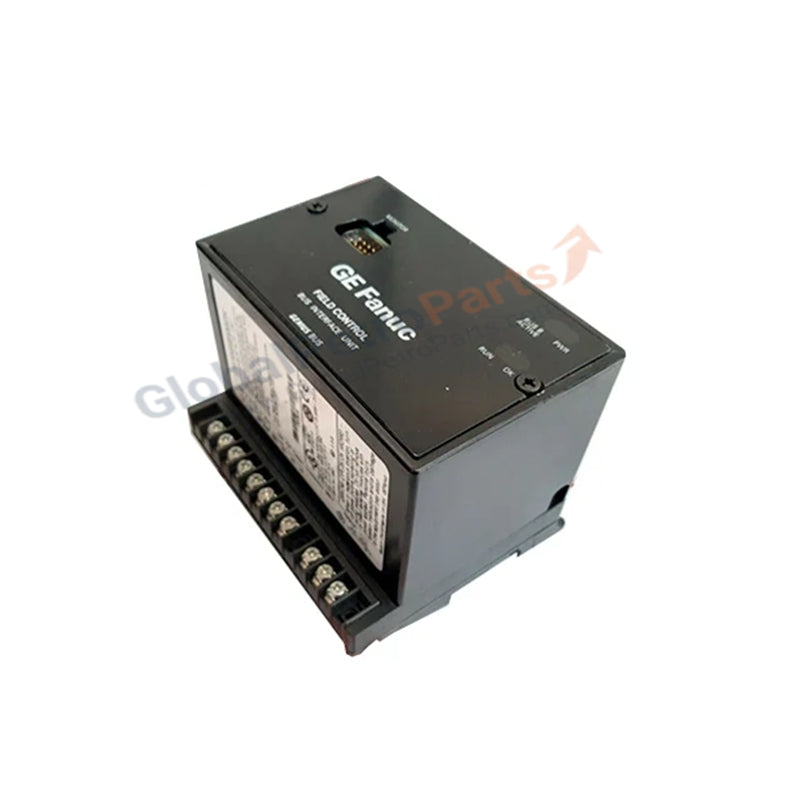

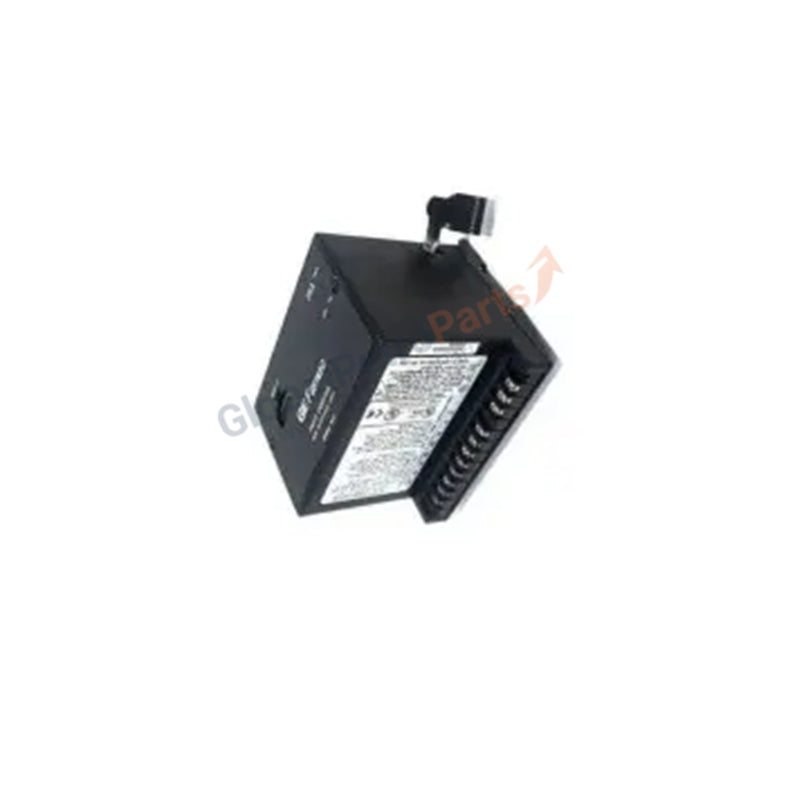

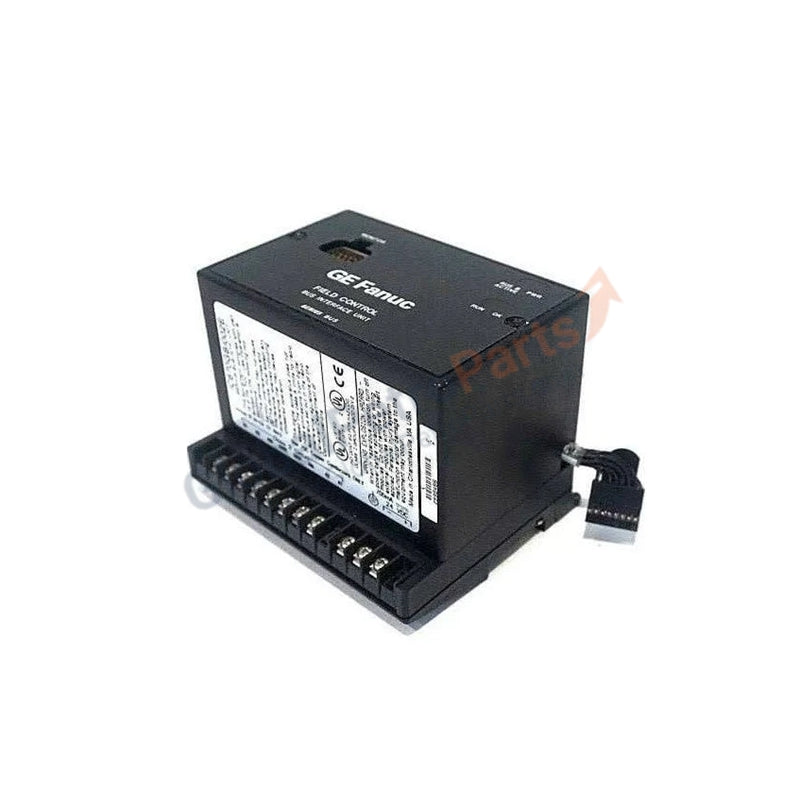

IC670GBI002 | GE Fanuc Field Control Genius Network Gateway
  • IC670GBI002 | GE Fanuc Field Control Genius Network Gateway
  • IC670GBI002 | GE Fanuc Field Control Genius Network Gateway
  • IC670GBI002 | GE Fanuc Field Control Genius Network Gateway
IC670GBI002 | GE Fanuc Field Control Genius Network Gateway

GE Fanuc

IC670GBI002 | GE Fanuc Field Control Genius Network Gateway

10 left

  • Manufacturer: GE Fanuc

  • Product No.: IC670GBI002

  • Product Type: Field Control Genius Network Gateway

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 680g

  • Shipping port: Xiamen

  • Warranty: 12 months

Special offer ends!
00 :
00 :
00

GE Fanuc IC670GBI002 Field Control Genius Bus Interface Unit

The IC670GBI002 (Model: IC670GBI002) is a high-performance Genius Bus Interface Unit (BIU) designed for the GE Fanuc Field Control product line. This module serves as the primary intelligent gateway between distributed Field Control I/O modules and the Genius Bus network. The IC670GBI002 (Part Number: IC670GBI002) is engineered to facilitate high-speed, deterministic data exchange, allowing a central controller to manage remote I/O blocks across distances of up to 7,500 feet.

Equipped with robust diagnostic capabilities, the IC670GBI002 (Model: IC670GBI002) supports CPU redundancy and the hot insertion/removal of I/O modules, making it an essential component for high-availability systems. It provides a stable 6.5 VDC output to power the local I/O station backplane while maintaining electrical isolation from the Genius network. Although currently listed as discontinued by the manufacturer, this BIU remains a cornerstone for maintaining and retrofitting legacy Field Control architectures in manufacturing and process automation environments.

Detailed Technical Specifications

The IC670GBI002 (Part Number: IC670GBI002) is built for high reliability with a MTBF of over 183,000 hours.

Feature Details
Manufacturer GE Fanuc (Emerson)
Model Number IC670GBI002
Product Line Field Control I/O
Type Genius Bus Interface Unit (BIU)
Nominal Input Voltage 115 VAC / 125 VDC
Voltage Range 90–135 VAC / 105–150 VDC
Frequency 47 to 63 Hz
Power Consumption 16.8 Watts (48 VA max at full load)
Internal Power Output 6.5 VDC ±5% at 1.4 A
Inrush Current 15–50 Amps peak (3 ms max)
Holdup Time 10 ms
Protocol Support Genius Bus Protocol (153.6 Kbps)
Redundancy Support Dual CPU Redundancy supported
Hot Swapping Supports hot insertion/removal of modules
Operating Temp 0°C to +60°C
Weight 0.68 kg (1.50 lbs)
