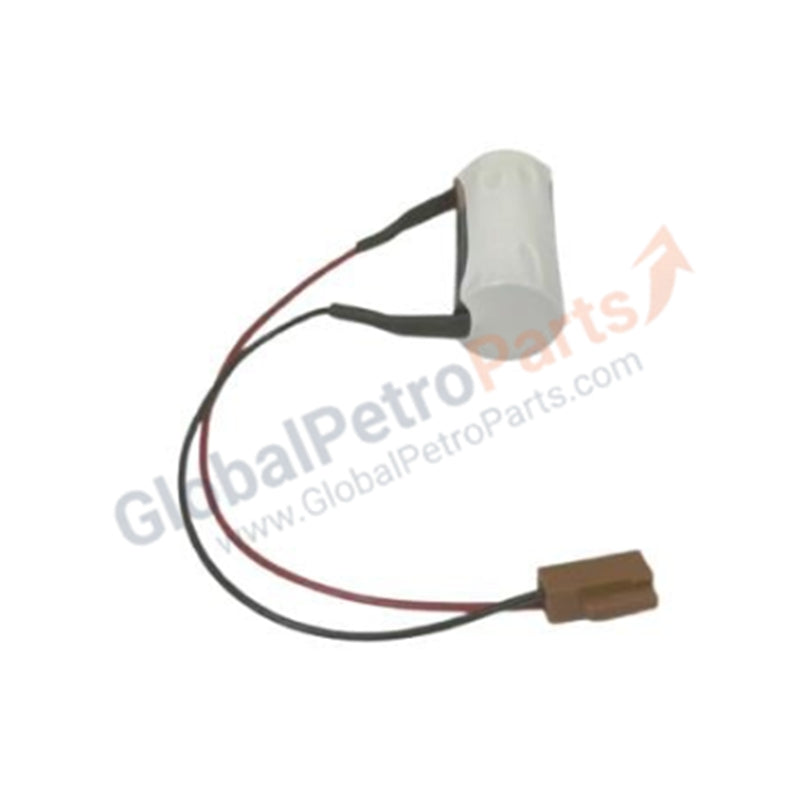

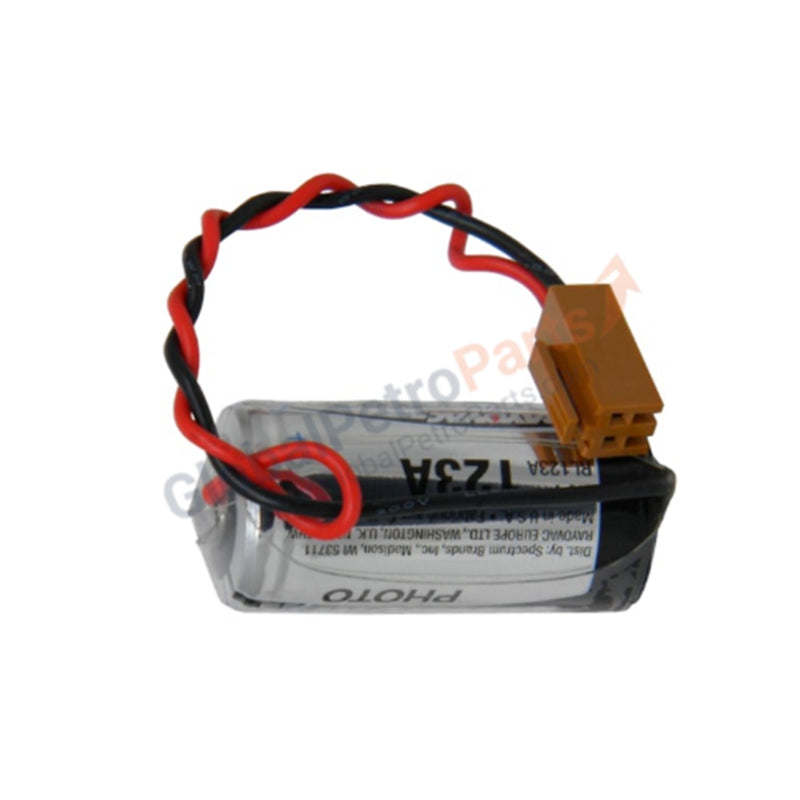

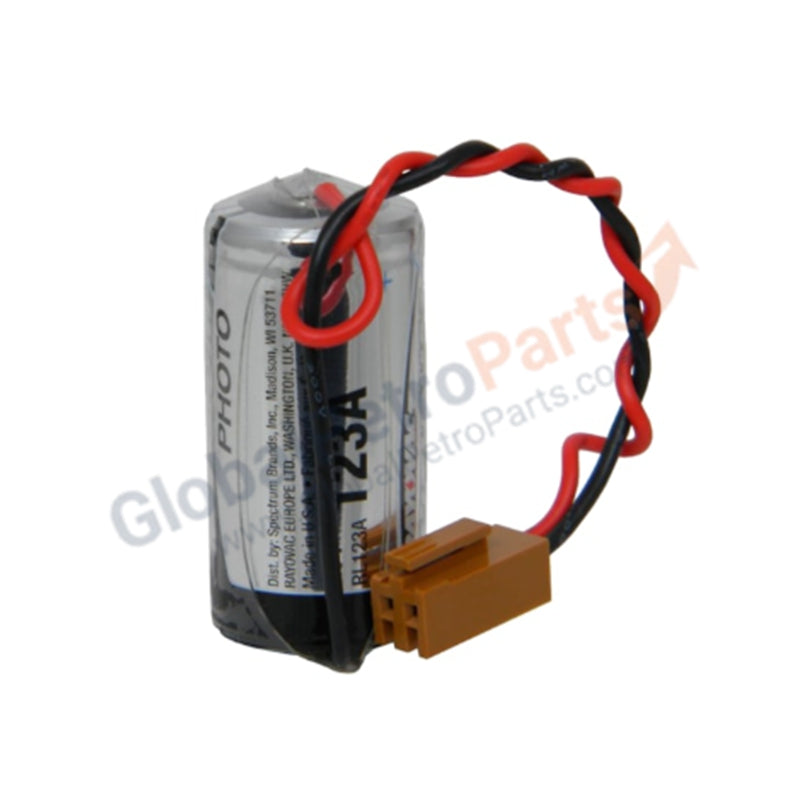

IC693ACC301 | GE Fanuc | Series 90‑30 Lithium Backup Battery

Product Description

The IC693ACC301 Lithium Backup Battery from GE Fanuc (now Emerson Automation) is designed for Series 90‑30 PLC systems to safeguard volatile memory. It ensures that user programs and RAM data remain intact during power loss, preventing downtime and maintaining system reliability.

Technical Specifications

• Manufacturer: GE Fanuc (Emerson Automation)

• Series: 90‑30 Series

• Product Type: Backup Battery

• Model Number: IC693ACC301

• Battery Chemistry: Lithium

• Nominal Voltage: 3 VDC

• Capacity: 1200 mAh

• Shelf Life: Up to 10 years

• Backup Functionality: Retains PLC memory during outages

Electrical Characteristics

• Voltage: 3 VDC

• Capacity: 1200 mAh

• Connector Type: Wire leads for secure attachment

Physical Dimensions

• Diameter: 17.2 mm (0.68 in)

• Height: 33.5 mm (1.32 in)

• Weight: 0.4 kg (0.88 lbs)

Application Scenarios

This battery is essential for:

• PLC memory retention during shutdowns or power interruptions

• Long‑term system stability in industrial automation environments

• Critical process control where program loss is unacceptable

FAQ

Q: How long can the IC693ACC301 be stored before use?  A: It has a shelf life of up to 10 years.

Q: What type of connector does the battery use?  A: It comes with wire leads for secure installation.

Q: Is this battery rechargeable?  A: No, it is a non‑rechargeable lithium battery designed for backup purposes only.

Q: How does IC693ACC301 compare to IC693ACC302?  A: The IC693ACC302 offers higher capacity for extended backup, while the IC693ACC301 is optimized for standard Series 90‑30 PLC memory retention.
