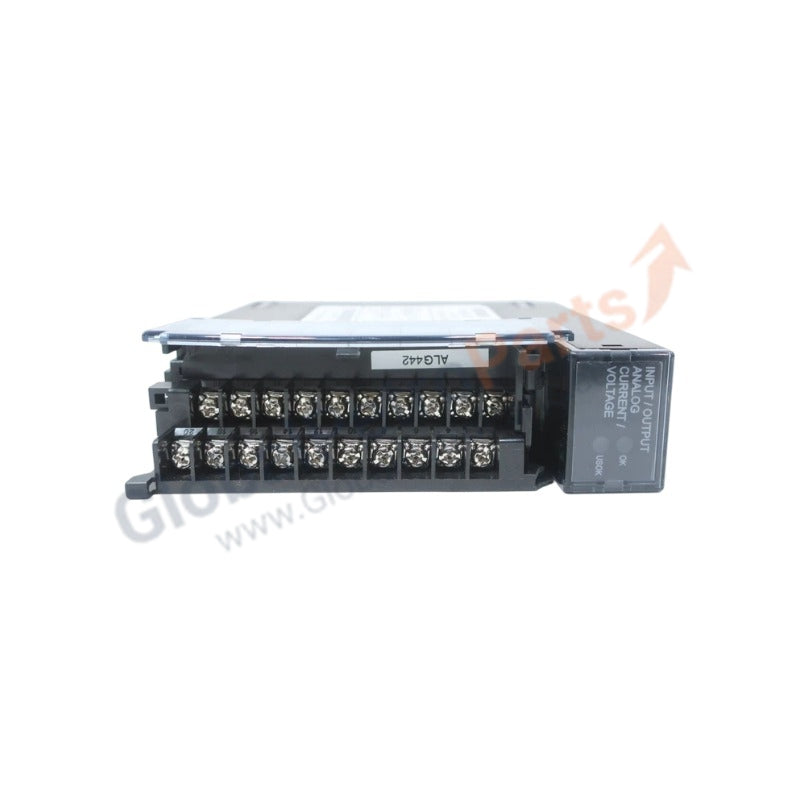

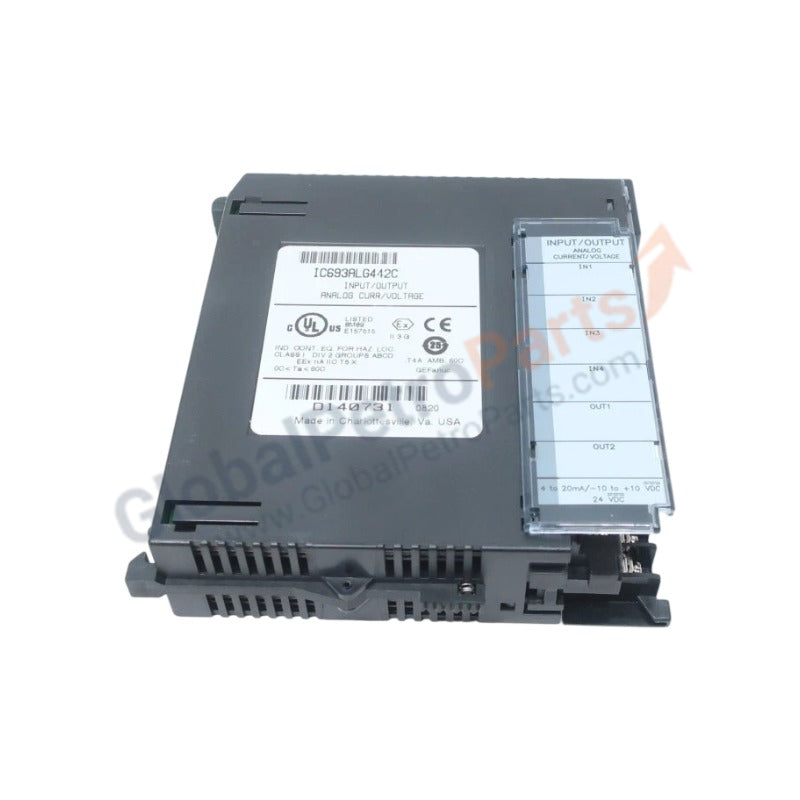

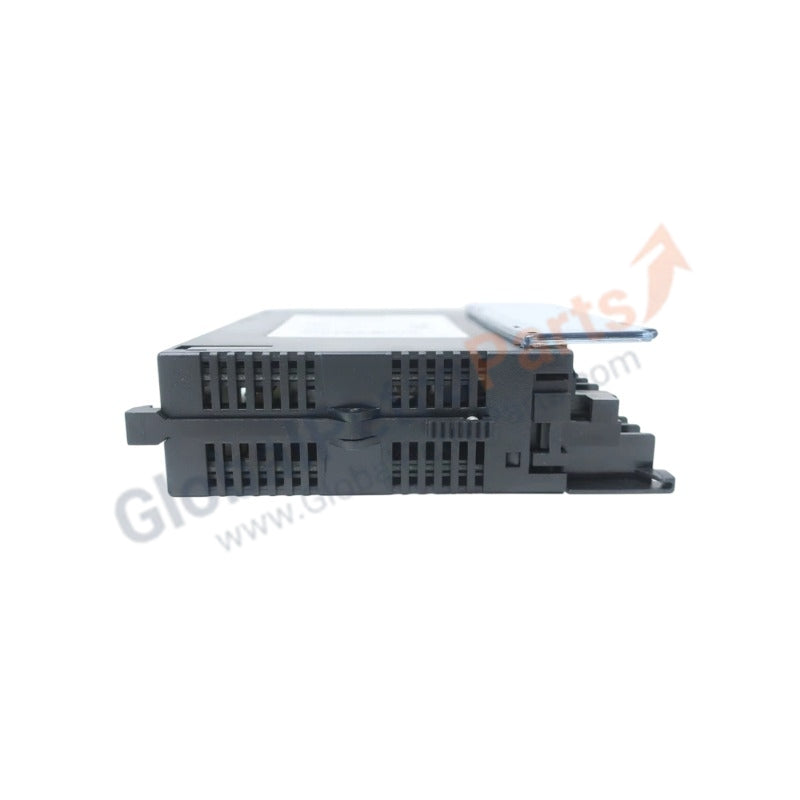

IC693ALG442 PACSystems Series 90-30 Analog Combination Module GE Fanuc

Product Overview

The GE Fanuc IC693ALG442, also cataloged as the IC693ALG442 Analog Combination Module, operates as a dedicated hardware component for simultaneous analog signal acquisition and generation within PACSystems Series 90-30 platforms. This unit processes up to 4 independent analog input channels and drives 2 distinct analog output loops, performing real-time signal conversion between external instrumentation and internal software registers. The interface hardware accommodates multiple unipolar and bipolar current/voltage electrical configurations without requiring manual jumper placements.

Hardware Specifications

I/O Density Scaling and Backplane Bus Communications

The module integration maps directly to single-slot footprint layouts, facilitating precise I/O density scaling adjustments across modular chassis backplanes. Internal signal conversion registers synchronize with the controller via fixed backplane bus communication velocity metrics, processing updates within predefined periodic logic scan timelines. Solid-state galvanic isolation components insulate the core processing electronics from field-side voltage spikes, sustaining full firmware flash compatibility criteria when operating alongside high-density discrete or specialty communication cards.

Frequently Asked Questions

Q: How must the module registers be handled when the internal 24 VDC user loop power source drops below operating limits?

A: A dedicated diagnostic status bit maps directly into the system register table. If the external 24 VDC field supply fails, the module forces this internal bit high, enabling the master CPU logic to recognize the loop power loss and execute programmed safety sequencing.

Q: Does this combination module allow the simultaneous mixing of voltage and current ranges on different channels?

A: Yes. Each of the 4 input channels and 2 output channels can be independently configured for distinct voltage or current ranges through the programming software utility without channel-to-channel configuration restrictions.

Field Installation Guidelines

• Shield Termination Protocol: Terminate the shields of all input and output instrumentation lines at a single external low-impedance ground bar inside the control panel enclosure. Do not allow shield elements to float or bond at both ends to prevent electromagnetic induction loops.
• External Power Routing: Wire a clean, regulated external 24 VDC power supply straight to the designated terminal connectors on the front-facing removable block. This voltage path provides the required electrical potential to sustain the 4-20 mA current feedback loops.
• Chassis Retention: Slide the housing completely down the rack slot track until the rear connector seats into the passive motherboard. Fasten the bottom panel retention screw to provide a stable mechanical ground attachment point.
