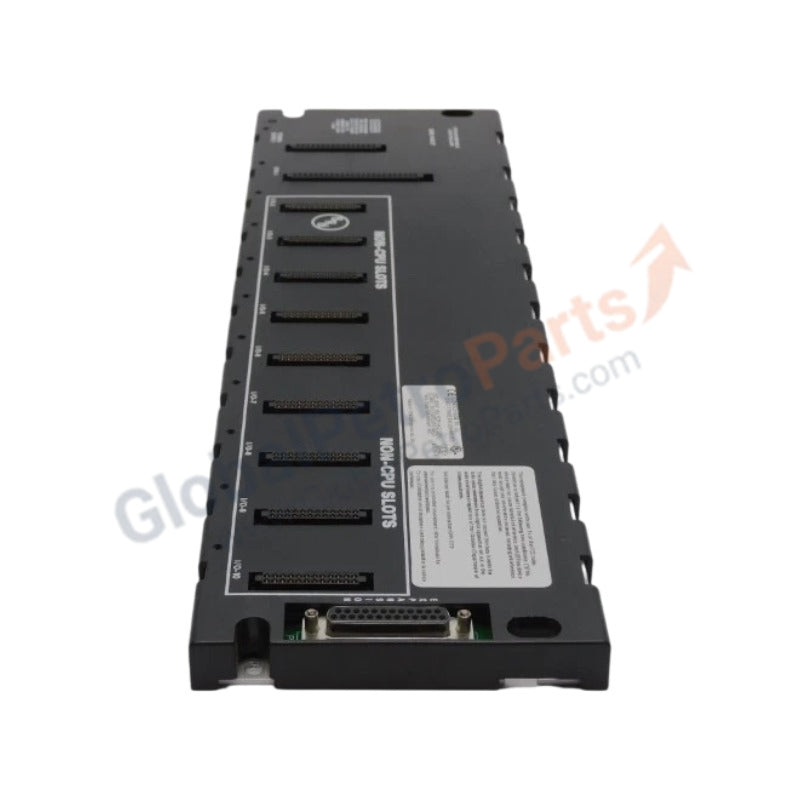

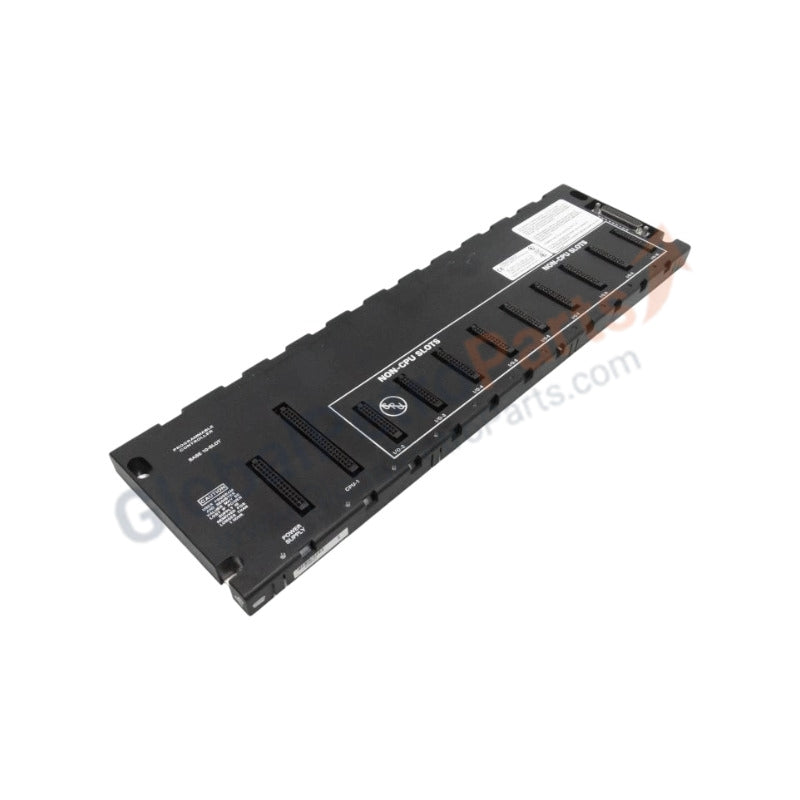

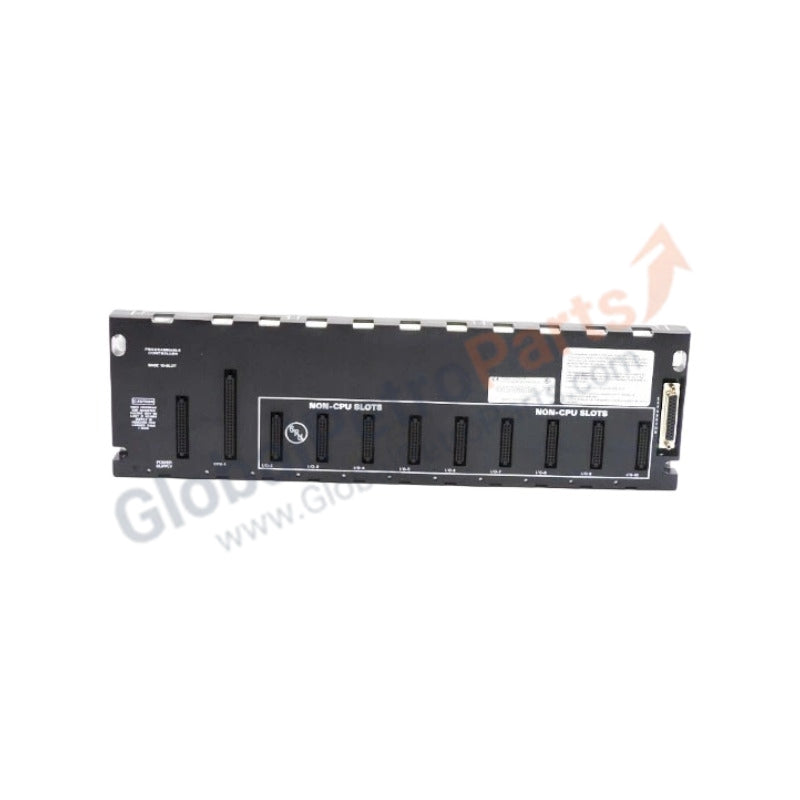

IC693CHS391 GE Fanuc Baseplate Chassis Series 90-30

Product Overview

Configured for multi-module hardware hosting in Series 90-30 ecosystems, the GE Fanuc IC693CHS391, also cataloged as the IC693CHS391 Expansion Baseplate, provides direct physical/electrical execution. The hardware establishes the structural framework and electrical multi-drop backplane pathways necessary to extend parallel register tracking and data transmission between external expansion drops and the primary controller chassis.

Hardware Specifications

Backplane Bus Communication Velocity and Expansion Routing

The physical backplane logic layout dictates data throughput parity across all nine active hardware sub-slots. The integrated bus structures sustain standard backplane bus communication velocity parameters by using direct differential signaling tracks tied to the remote expansion cable receiver. The architecture secures complete firmware flash compatibility loops across legacy Series 90-30 communication modules and discrete assets, allowing deterministic performance handling during full-scale I/O density scaling profiles without data collision or frame dropouts on adjacent Profinet and EtherNet/IP deterministic networks.

Frequently Asked Questions

Q: Can standard CPU processors be installed in the IC693CHS391 baseplate assembly?

A: No. The IC693CHS391 is hardwired strictly as an expansion baseplate and lacks the localized high-speed control circuitry lines required to support a primary CPU module. Slot 1 is optimized exclusively for I/O modules, communication coprocessors, or bus transmitters linked back to a master main rack.

Q: Is hot-swap module extraction permitted on this expansion backplane?

A: No. This backplane chassis does not incorporate electronic isolation switch barriers per slot. Removing or inserting any discrete, analog, or specialty module while the power supply unit is active will cause electrical transient propagation across the shared bus, halting the master controller and endangering internal logic gates.

Field Installation Guidelines

• Mount the baseplate chassis securely onto a clean, unpainted zinc-plated backpanel within the enclosure using four standard M4 screws to ensure continuous frame-to-panel electrical grounding.
• Interconnect this unit to the main controller rack using only standard double-shielded I/O expansion cables attached to the dedicated 25-pin D-type bus expansion connectors.
• Maintain a minimum clearance of 100 mm above and below the baseplate to allow unrestricted passive thermal convection through mounted modules.
• Separate all field-side actuator and power cabling from the internal logic backplane routing zones to avoid high-frequency capacitive noise coupling.
