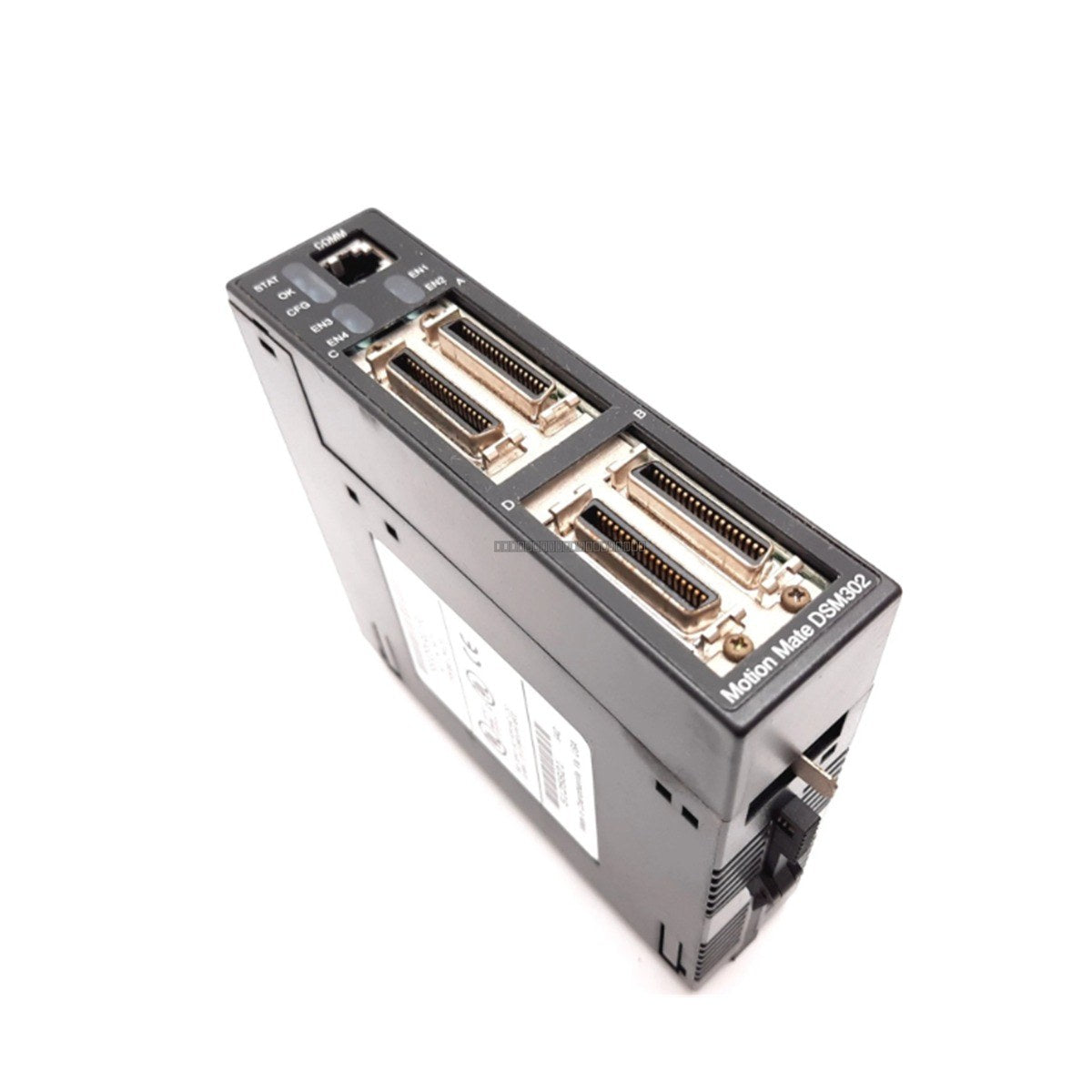

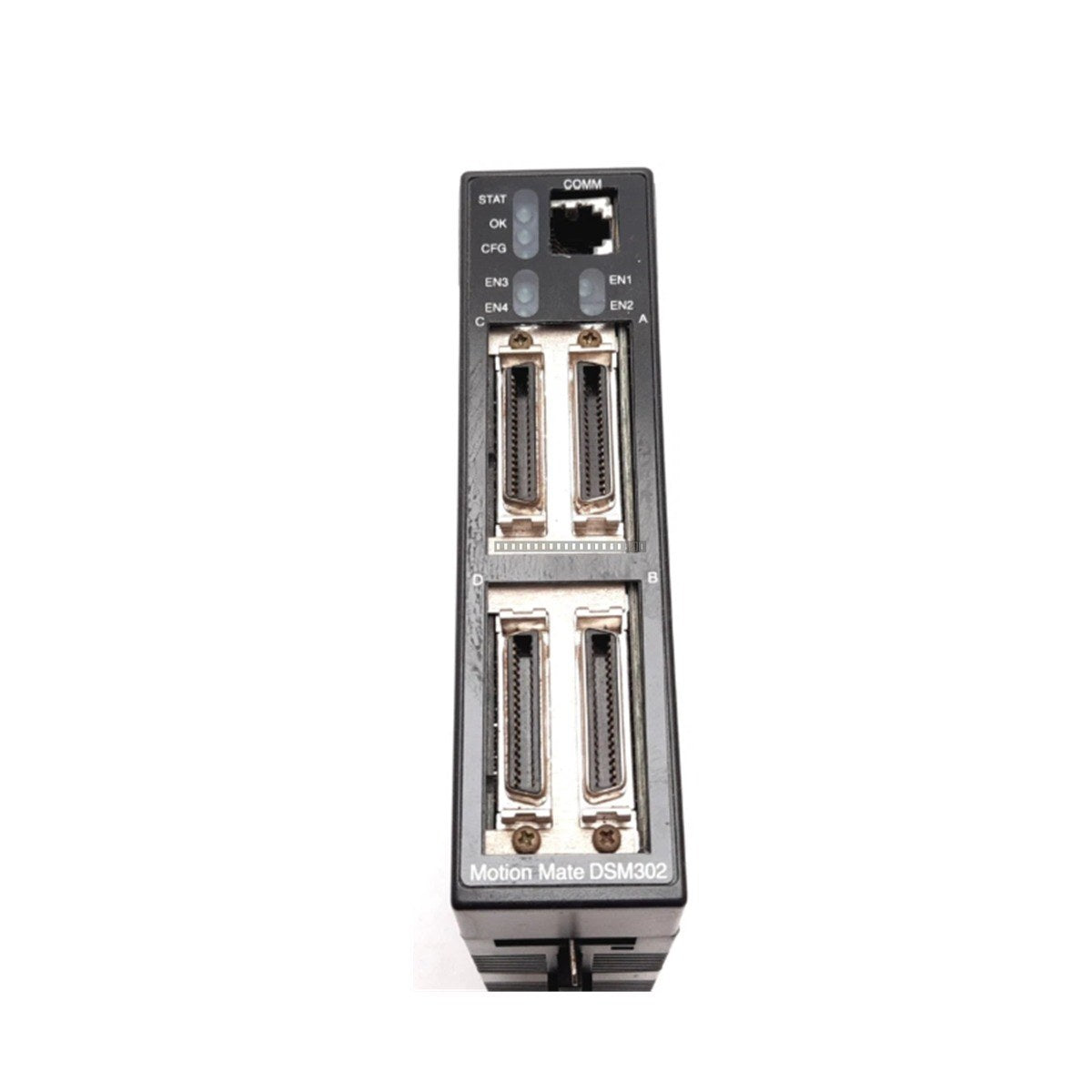

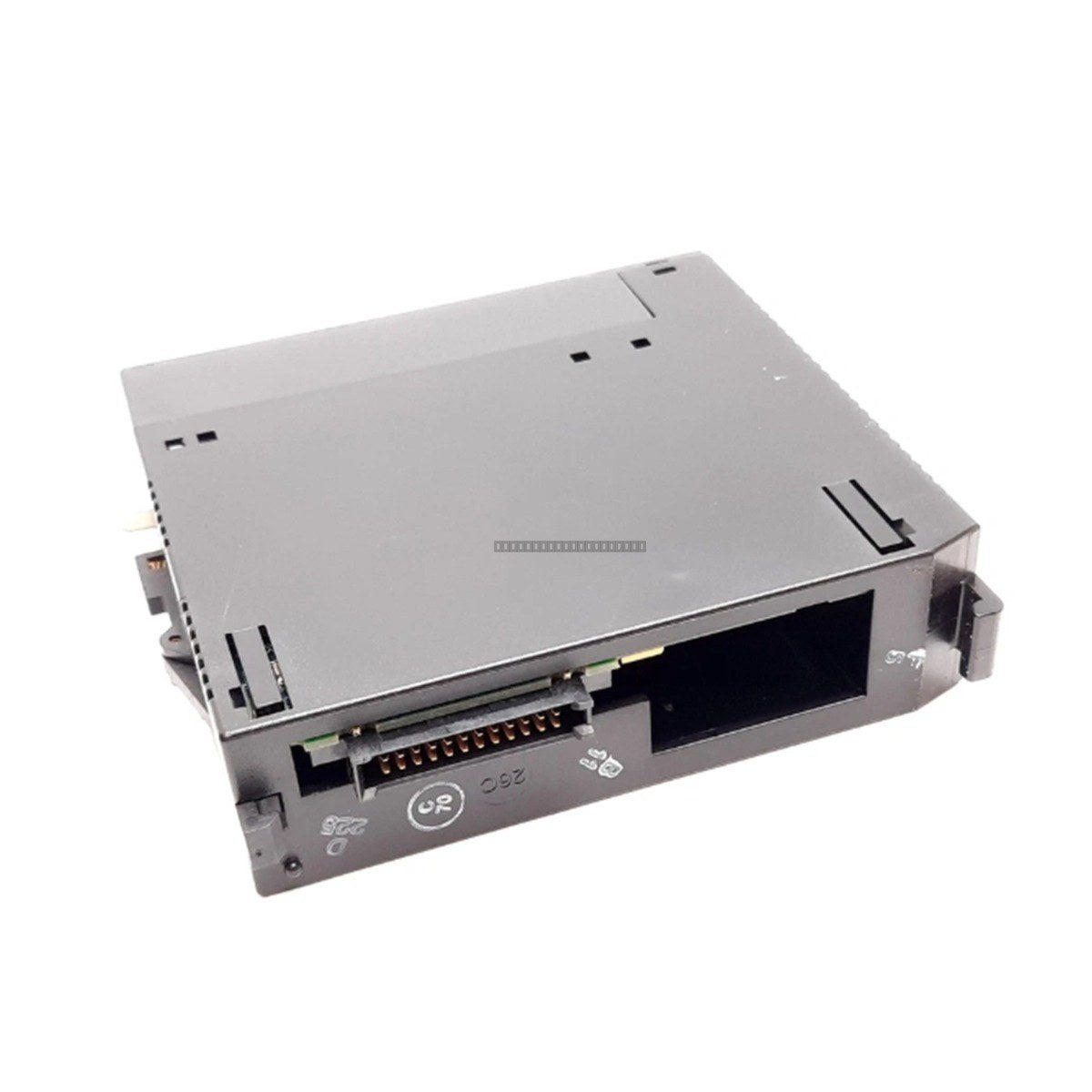

General Electric IC693DSM302 Series 90-30 Motion Mate Control Module

Description

The General Electric IC693DSM302 is a Motion Mate control module designed for the Series 90-30 Programmable Logic Controller (PLC) system. This specialized module provides high-performance motion control capabilities, allowing for precise management of up to two axes of motion. It integrates seamlessly into the 90-30 backplane, enabling users to execute complex motion profiles directly from the PLC environment.

Features

• Supports control for up to 2 independent axes.
• Integrated RS-232 serial port for communication and configuration.
• Non-volatile storage capacity for up to 10 programs and 40 subroutines.
• Fast block processing time of less than 5 milliseconds.
• High-resolution programming units for position, velocity, and acceleration control.

Technical Specifications

Installation Guidelines

• Ensure the PLC system power is disconnected before installing or removing the module from the backplane.
• The module should be seated firmly in a standard Series 90-30 I/O rack slot.
• Use shielded cables for RS-232 communication to minimize electromagnetic interference (EMI).
• Maintain proper ventilation within the control cabinet to ensure the module operates within the specified 0 to 60 degC temperature range.
• Follow standard ESD (Electrostatic Discharge) precautions when handling the module to prevent damage to internal circuitry.

FAQ

What is the primary function of the IC693DSM302?

The IC693DSM302 acts as a dedicated motion controller for GE 90-30 PLCs, offloading motion processing tasks from the main CPU to manage up to two axes with high precision.

How is this module powered?

The module draws its operating power directly from the PLC backplane, consuming approximately 450 mA at 5V DC.
