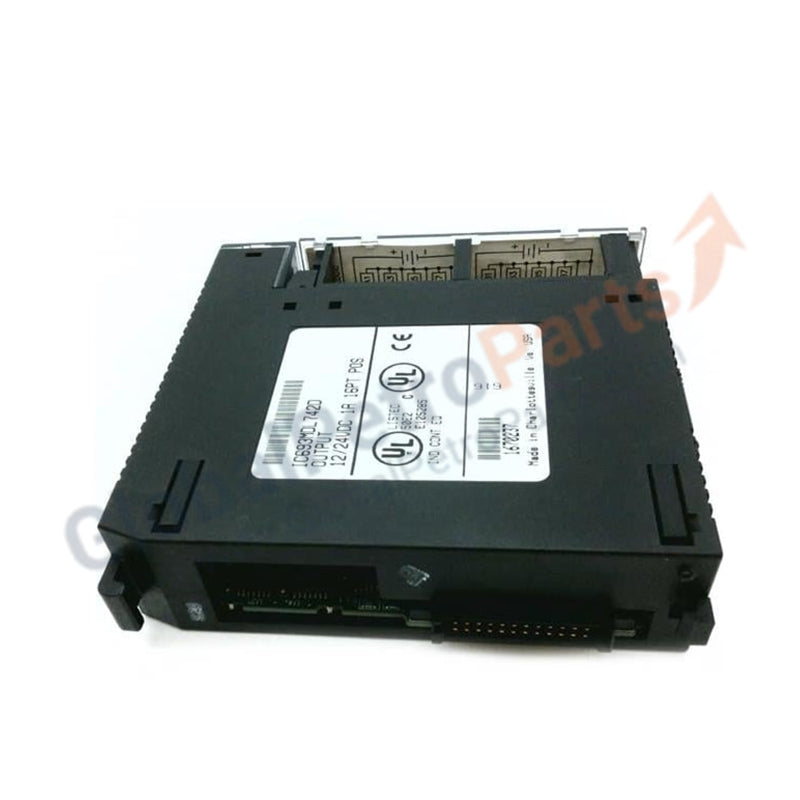

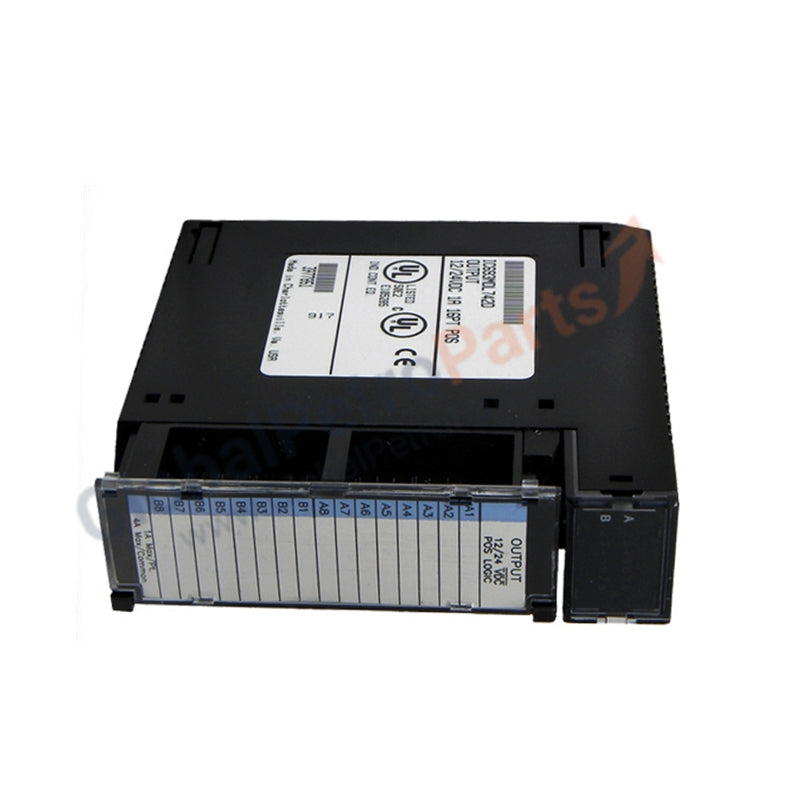

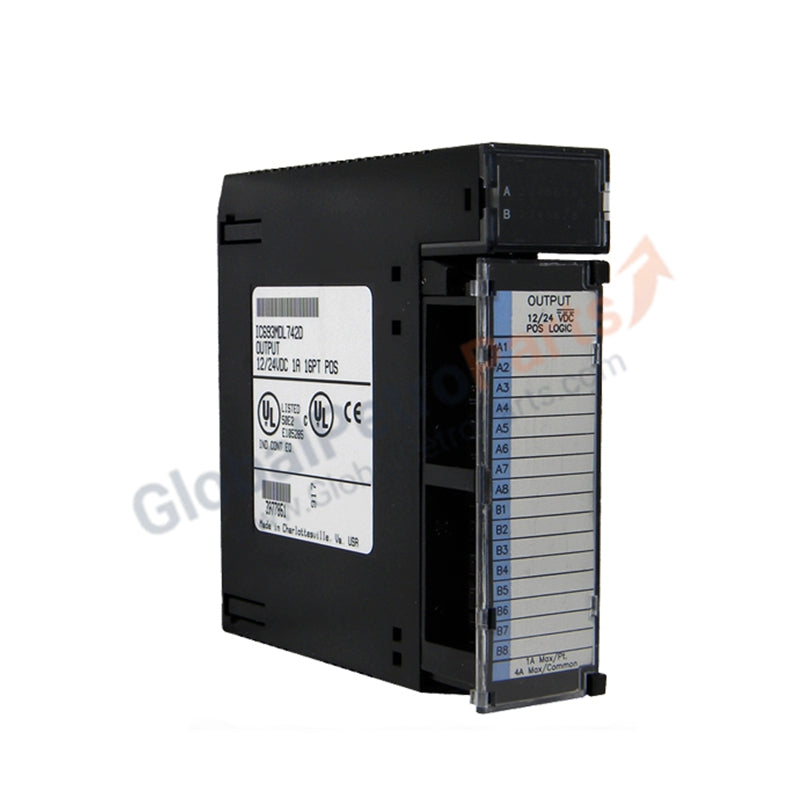

IC693MDL742 | GE Fanuc Series 90-30 12/24VDC Positive Logic Output Module

Product Description

The GE Fanuc IC693MDL742 is a 16-point discrete output module designed for the Series 90-30 programmable logic controller (PLC) family. It delivers 12/24 VDC positive logic outputs and supports electronic short-circuit protection (ESCP), ensuring reliable and safe operation in industrial automation environments. With a compact single-slot design and high current handling capability, this module provides efficient control of field devices such as relays, solenoids, and indicator lamps.

Technical Specifications

• Manufacturer: GE Fanuc Emerson

• Series: Series 90-30

• Model: IC693MDL742

• Product Type: 12/24VDC Positive Logic Output Module

• Part Number: IC693MDL742

• Number of Output Points: 16 points

• Output Voltage Range: 12 to 24 VDC

• Logic Type: Positive Logic

• Output Current per Point: 1 Ampere

• Total Module Current: 4 Amperes maximum per common

• Circuit Protection: Electronic short-circuit protection (ESCP) included

• Isolation: Optical isolation between logic and field side

• On-State Voltage Drop: 0.5V maximum

• Off-State Leakage Current: 0.1 mA maximum

• Response Time: Less than 0.5 ms typical ON/OFF

• Power Consumption: 100 mA typical at 5VDC

• Compatibility: Fully compatible with GE Fanuc Series 90-30 PLC racks

• Operating Temperature: 0°C to 60°C (32°F to 140°F)

• Storage Temperature: -40°C to 85°C (-40°F to 185°F)

• Humidity Range: 5% to 95%, non-condensing

• Mounting Type: Single-slot plug-in module

• Weight: 0.33 lbs (0.15 kg)

• Product Lifecycle: Discontinued by manufacturer

Key Features

• 16 Isolated Outputs: Designed for 12/24VDC positive logic control.

• Integrated Protection: Features electronic short-circuit protection for reliable safety.

• High Current Capability: Supports up to 1A per channel for industrial-grade loads.

• Fast Switching: Quick ON/OFF response for high-speed control tasks.

• Compact Construction: Space-efficient module fits easily in Series 90-30 racks.

Application Scenarios

The IC693MDL742 module is widely used in:

• Factory automation and machinery control

• Process control and monitoring systems

• Power distribution management applications

• Material handling and motion control setups

FAQ

Q: What does “positive logic” mean in the IC693MDL742?
A: Positive logic means an ON signal is represented by a high voltage (typically +24VDC), and an OFF signal corresponds to 0V.

Q: Does the module include short-circuit protection?
A: Yes, the IC693MDL742 includes electronic short-circuit protection to safeguard connected field devices.

Q: What is the maximum load current per output?
A: Each output can supply up to 1 Ampere, with a total current limit of 4A per module.

Similar Models

• IC693MDL740: Standard 12/24VDC output module without short-circuit protection

• IC693MDL741: High-density version offering 32 output points
