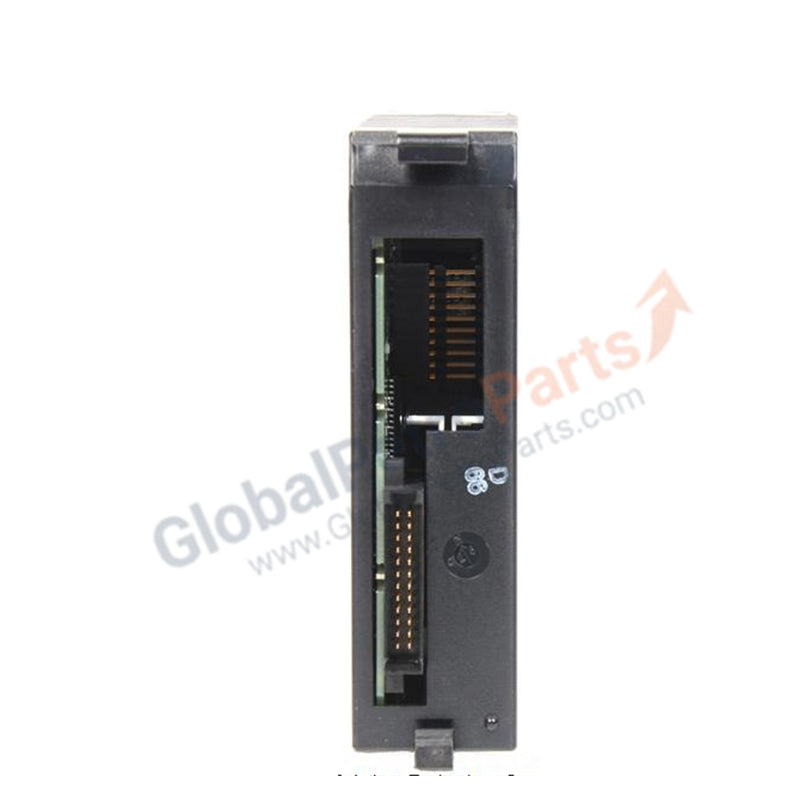

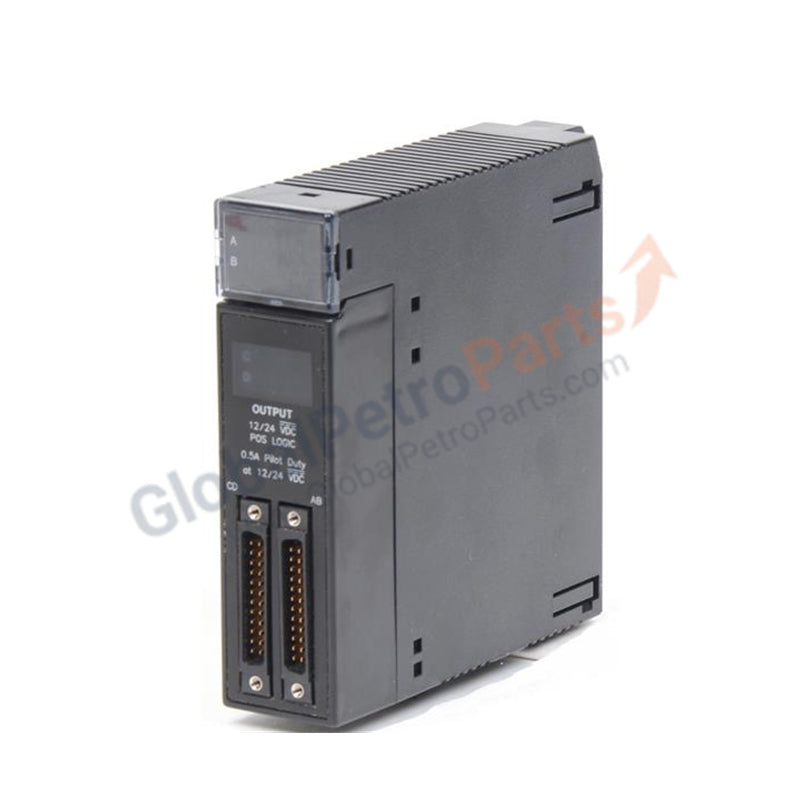

IC693MDL753 | GE Fanuc Series 90-30 Positive Logic Output Module

Product Description

The GE Fanuc IC693MDL753 Positive Logic Output Module is a 32-point DC output unit designed for the Series 90-30 PLC family. It provides efficient signal control for industrial automation systems, supporting reliable switching of DC loads. The module operates within a 12–24 VDC nominal range and features electrical isolation between logic and field circuits, ensuring dependable system performance and noise protection in harsh environments.

Technical Specifications

• Manufacturer: GE Fanuc Emerson

• Series: Series 90-30

• Model: IC693MDL753

• Product Type: Positive Logic Output Module

• Part Number: IC693MDL753

• Weight: 0.56 lbs (0.26 kg)

• Number of Channels: Thirty-two (32)

• Number of Output Groups: Four (4) groups, each with eight (8) output points

• Nominal Output Voltage: 12–24 VDC

• Output Voltage Range: 10.2–28.8 VDC

• Nominal Input Voltage: 5 VDC (logic side)

• Output Signal Range: 12–24 VDC (+20%, –15%)

• Output Current per Point: 0.5 A

• Maximum Module Output Current: 4 A total per module

• Group Common Current: 3 A per group common pin

• Output Voltage Drop: 0.3 V maximum

• Maximum Inrush Current: 5.4 A for 20 ms

• Output Point Current Draw: 16 mA typical

• Module Current Draw: 260 mA from 5V bus

• Off-State Leakage: 1 mA maximum

• On Response Time (max): 0.5 ms

• Off Response Time (max): 2 ms

• LED Current Draw: 4.7 mA per indicator

• Isolation: 1500 V between field and logic sides; 250 V between output groups

• Compatibility: Fully compatible with GE Fanuc Series 90-30 PLCs

• Module Width: Single-slot unit

• Product Lifecycle: Discontinued / Obsolete

Key Features

• High-Density Output: 32 points divided into four isolated groups for flexible wiring.

• Fast Response: 0.5 ms switching time ensures rapid signal handling.

• Electrical Isolation: Provides 1500V isolation between logic and field circuits.

• Reliable Operation: Stable 12–24 VDC output range supports diverse load conditions.

• Status Indicators: Each output channel includes an LED for quick diagnostics.

• Compact Design: Occupies a single slot in Series 90-30 racks.

Application Scenarios

The IC693MDL753 module is ideal for applications requiring precise DC output control, including:

• Material handling and packaging systems

• Power and utility management networks

• Process automation and machinery control

• Distributed I/O systems with positive logic operation

FAQ

Q: What type of loads can the IC693MDL753 control?
A: It is suitable for DC loads such as relays, solenoids, contactors, and indicator lamps operating within 12–24 VDC.

Q: Is the module isolated from other PLC components?
A: Yes, it provides 1500V isolation between logic and field circuits and 250V isolation between output groups.

Q: What is the maximum current supported by each output?
A: Each output point supports up to 0.5 A, with 4 A maximum per module.
